Epson EB-PU1006W data projector Large venue projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White

3LCD, 0.76" with C2 Fine, WUXGA, 1920 x 1200, 16:10, 6000 Lumen

Description

The EB-PU1006W is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.

This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.

Superior image quality

The 6,000 lumens EB-PU1006W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.

Compact and lightweight

The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments.

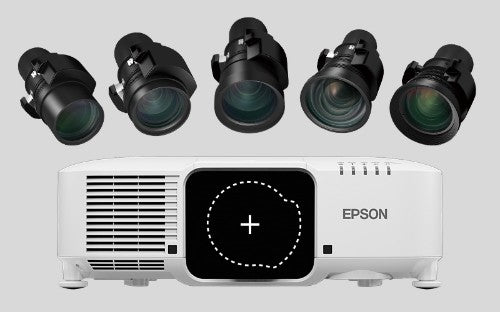

Interchangeable lens support

The EB-PU1006W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.

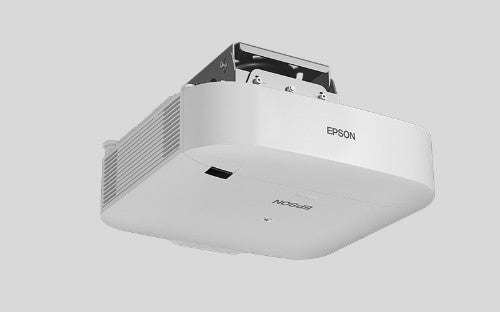

Designed for installation agility

Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WUXGA (1920x1200)
Native aspect ratio	16:10
Contrast ratio (typical)	2000:1
Projector brightness (economic mode)	4200 ANSI lumens
Matrix size	1.93 cm (0.76")
Keystone correction, vertical	-45 - 45°
Keystone correction, horizontal	-30 - 30°
Projection technology	3LCD
Projector brightness	6000 ANSI lumens
Heat dissipation	1247.8 BTU/h
Zoom type	Auto
Projector brightness (portrait mode)	6000 ANSI lumens
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Focal length range	varies by lens
Throw ratio	0.35 - 10.11:1
Zoom type	Auto
Interchangeable lens	Yes
Video
Video processing	10 bit
Video colour modes	Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709
Analog signal format system	Not supported
Full HD	Yes
3D	No
Ports & interfaces
HDBaseT port	Yes
USB 2.0 Type-B ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Audio (L/R) in	1
Serial interface type	RS-232C
DVI port	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Storage
Card reader integrated	No
Sound emission
Noise level	30 dB
Noise level (economic mode)	28 dB
Technical details
Product colour	White
HDCP	Yes
Heat dissipation	1247.8 BTU/h
Products per pallet	14 pc(s)
Quantity per pack	1 pc(s)
Products per pallet (UK)	14 pc(s)
Performance
Market positioning	Presentation
Password protection	Yes
HDCP	Yes
Noise level	30 dB
Noise level (economic mode)	28 dB
Heat dissipation	1247.8 BTU/h
Features
Password protection	Yes
HDCP	Yes
Noise level	30 dB
Noise level (economic mode)	28 dB
Country of origin	Philippines
Design
Market positioning	Presentation
Product type	Large venue projector
Cable lock slot type	Kensington
Product colour	White
Cable lock slot	Yes
Placement	Ceiling, Desktop, Flying frame
Display
Built-in display	No
Power
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	367 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	310 W
Packaging data
Package width	561 mm
Package depth	760 mm
Package height	265 mm
Package weight	20.6 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Software
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool
Software support	via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
Supplier features
Harmonized System (HS) code	85286200
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Package width	561 mm
Package depth	760 mm
Package height	265 mm
Weight	15.4 kg
Width	545 mm
Depth	436 mm
Height	189 mm
Package weight	20.6 kg
Packaging content
Remote control included	Yes
Warranty card	Yes
Manual	Yes
Cables included	AC
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool
Batteries included	Yes
WLAN adapter included	Yes
Logistics data
Products per pallet	14 pc(s)
Quantity per pack	1 pc(s)
Products per pallet (UK)	14 pc(s)
Harmonized System (HS) code	85286200
Other features
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Power consumption (economy mode)	310 W
