Viewsonic LSC731WU data projector Standard throw projector 7300 ANSI lumens 3LCD WUXGA (1920x1200) Black, White

3LCD (3x0.64" MLA), 1920x1200, 7300 ANSI, F=1.5-2.08, f=17.2-27.7mm, 30"-300"

Key Features

• 7,300 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
• 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
• Centralized LAN control for efficient management

Description

The LSC731WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 7,300 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC731WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues
Delivering 7,300 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WUXGA (1920x1200)
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	0.78 - 12.99 m
Contrast ratio (typical)	3000000:1
Zoom capability	Yes
Vertical scan range	23 - 85 Hz
Horizontal scan range	15 - 100 kHz
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-25 - 25°
Projection technology	3LCD
Projector brightness	7300 ANSI lumens
Lamps
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom capability	Yes
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.08
Horizontal lens shift range	0 - 60%
Vertical lens shift range	-29 - 29%
Throw ratio	1.2 - 2
Offset	5%
Scanning frequency
Vertical scan range	23 - 85 Hz
Horizontal scan range	15 - 100 kHz
Video
Full HD	Yes

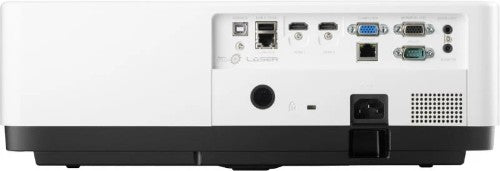

Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Audio (L/R) in	1
Audio (L/R) out	1
Serial interface type	RS-232
AC (power) in	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	Black, White
Air filter	Yes
Quantity per pack	1 pc(s)
Pallet gross width	120 cm
Pallet gross length	100 cm
Pallet gross height	170 cm
Products per master (outer) case	1 pc(s)
Performance
Market positioning	Education
Vertical scan range	23 - 85 Hz
Horizontal scan range	15 - 100 kHz
Noise level	37 dB
Noise level (economic mode)	27 dB
Air filter	Yes
Features
Noise level	37 dB
Noise level (economic mode)	27 dB
Air filter	Yes
Design
Market positioning	Education
Product type	Standard throw projector
Product colour	Black, White
LED indicators	Yes
Placement	Ceiling
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	375 W
Power consumption (standby)	0.5 W
Packaging data
Package width	510 mm
Package depth	498 mm
Package height	260 mm
Package weight	10.9 kg
Indication
LED indicators	Yes
Supplier features
Harmonized System (HS) code	8528620000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Package width	510 mm
Package depth	498 mm
Package height	260 mm
Weight	7.9 kg
Width	405 mm
Depth	358 mm
Height	137 mm
Package weight	10.9 kg
Packaging content

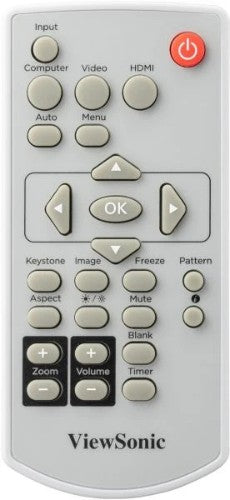

Remote control included	Yes
Manual	Yes
Logistics data
Quantity per pack	1 pc(s)
Pallet gross width	120 cm
Pallet gross length	100 cm
Pallet gross height	170 cm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528620000
