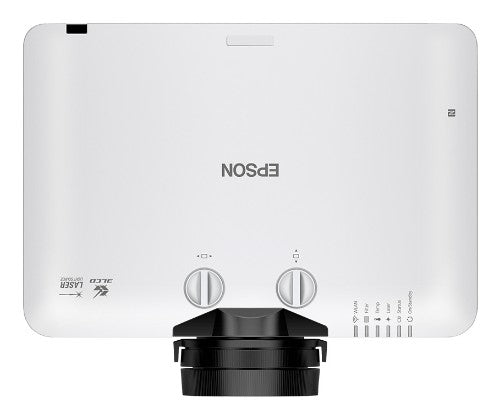

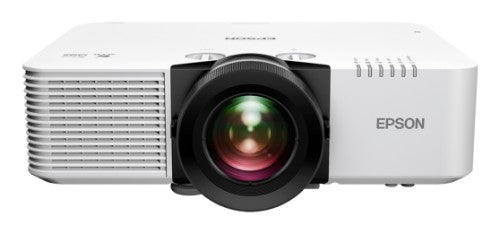

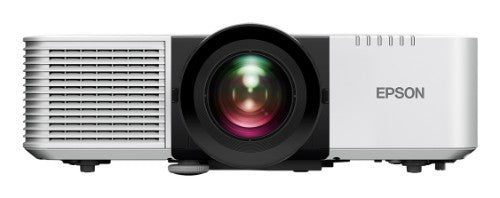

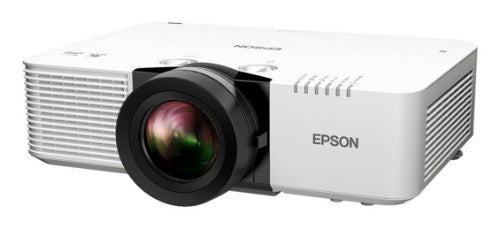

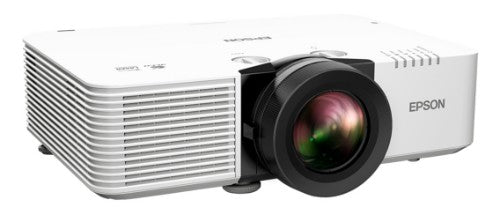

Epson EB-L690SE Short throw projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White

3LCD Technology, RGB liquid crystal shutter, 36 dB, AC 100 - 240 V, 50/ 60 Hz, 440‎ x 368 x 151 mm, 9.3 kg, White

Description

Designed for compact spaces, the EB-L690SE short-throw offers 6,000 lumens of bright WUXGA resolution with 4K Enhancement, HDR and advanced installation features. With up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.4x zoom and corner focus, it’s ideal for professional applications. Flexible control options are available via HDBaseT, LAN and more.

Awe-inspiring immersive short throw projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.5–0.7:1, built-in lens shift, and WUXGA resolution with 4K Enhancement. With 1.4x optical zoom, corner focus, and display sizes up to 500", this high-performance display is perfect for immersive applications. Its compact design, low noise, and sleek white chassis ensure crystal-clear images in any setting, all at an affordable price.

Flexible installation for professional setups
Designed for easy installation, the EB-L690SE can be quickly configured for optimal performance in any room layout. Features like lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options such as split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, enable fast setup and calibration, enhancing flexibility for complex setups.

Stream, share, and connect with ease
With optional wireless connectivity, a USB-A port for PC-free operation, and HDBaseT/HDMI daisy chaining, the EB-L690SE enhances installation flexibility and convenience.

Smart control for seamless experience
The EB-L690SE streamlines large-scale deployments with NFC functionality and the Epson Projector Config Tool. The intuitive OSD menu, coupled with Epson’s EPMC solution, enables effortless cloud monitoring and management. Compatible with Crestron XiO Cloud, it offers centralised control for seamless operation.

Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SE features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.

Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity* and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WUXGA (1920x1200)
Projection distance (wide)	1.1 - 5.6 m
Projection distance (tele)	1.5 - 7.8 m
Native aspect ratio	16:10
Screen size compatibility	2540 - 12700 mm (100 - 500")
Projection distance	1.09 - 7.84 m
Contrast ratio (typical)	5000000:1
Zoom capability	Yes
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-30 - 30°
Projection technology	3LCD
Projector brightness	6000 ANSI lumens
Zoom type	Manual
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom capability	Yes
Focus	Manual
Focal length range	7.54 - 10.55 mm
Aperture range (F-F)	1.8 - 2
Horizontal lens shift range	-20 - 20%
Vertical lens shift range	-50 - 50%
Throw ratio	0.50 - 1.70:1
Zoom type	Manual
Video
Video colour modes	Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
Analog signal format system	Not supported
Full HD	Yes
3D	No
Audio
Built-in speaker(s)	Yes
RMS rated power	10 W
Ports & interfaces
HDBaseT port	Yes
USB 2.0 Type-B ports quantity	1
HDMI version	2.3
VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
USB 2.0 ports quantity	3
Serial interface type	RS-232C
DVI port	No
USB 2.0 Type-A ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes
Apple AirPlay 2 support	Yes
Storage
Card reader integrated	No
Sound emission
Noise level	36 dB
Noise level (economic mode)	26 dB
Technical details
Product colour	White
HDCP	Yes
Preset modes	Cinema, Dynamic, Presentation
Warranty period	3 year(s)
Performance
Market positioning	Education
HDCP	Yes
Preset modes	Cinema, Dynamic, Presentation
Noise level	36 dB
Noise level (economic mode)	26 dB
Features
Interactive	No
HDCP	Yes
Preset modes	Cinema, Dynamic, Presentation
Noise level	36 dB
Noise level (economic mode)	26 dB
Multimedia
Built-in speaker(s)	Yes
RMS rated power	10 W
Design
Market positioning	Education
Product type	Short throw projector
Cable lock slot type	Kensington
Product colour	White
Cable lock slot	Yes
Placement	Ceiling, Desktop
Power
AC adapter output voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	415 W
Power source	AC
Power consumption (typical)	362 W
Power consumption (standby)	0.4 W
Power consumption (economy mode)	250 W
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	9.3 kg
Width	440 mm
Depth	368 mm
Height	151 mm
Packaging content
Remote control included	Yes
Batteries included	Yes
Other features
Power consumption (economy mode)	250 W
