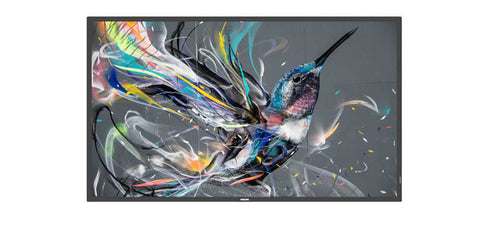

Philips 86BDL3511Q/00 Public Display Digital signage flat panel 2.18 m (86") IPS 400 cd/m² 4K Ultra HD Black

86BDL3511Q - 86", Ultra HD, Direct LED Backlight

Description

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Integrated media player. Easily schedule USB content
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.

Specifications

Display
Display number of colours	1.07 billion colours
Touchscreen	No
Display technology	IPS
Display diagonal	2.18 m (86")
Display resolution	3840 x 2160 pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.4935 x 0.4935 mm
Display diagonal (metric)	217.4 cm
Native aspect ratio	16:9
Ports & interfaces
USB port	Yes
HDMI version	2.0
RS-232C	Yes
Infrared data port	Yes
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	Yes
DVI-I ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	2
OPS module slot	Yes
Audio
Number of built-in speakers	2
RMS rated power	10 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (top)	1.55 cm
Product colour	Black
Panel mounting interface	600 x 400 mm
Certification	CEosd FCC, Class A CB BSMI VCCI CU ETL EMF PSB
VESA mounting	Yes
Performance
Purpose	Universal
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish
On Screen Display (OSD)	Yes
Number of OSD languages	12
Power
Power consumption (typical)	360 W
Power consumption (standby)	0.5 W
AC input voltage	100–240
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	355 kWh
Computer system
Video formats supported	H.264, M-JPEG, WMV3
Audio formats supported	AAC, HE-AAC, WMA
Image formats supported	BMP, JPEG, PNG
Weight & dimensions
Display width	1929 mm
Display depth	69.5 mm
Display height	1100 mm
Display weight	49.5 kg
Packaging content
Cables included	AC, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	CEosd FCC, Class A CB BSMI VCCI CU ETL EMF PSB
Technical details
VESA mounting	Yes
Network
Ethernet LAN	Yes
Thin Client
Video formats supported	H.264, M-JPEG, WMV3
Audio formats supported	AAC, HE-AAC, WMA
Image formats supported	BMP, JPEG, PNG
Logistics data
Harmonized System (HS) code	85285210
Packaging data
Cables included	AC, RS-232
Features
Harmonized System (HS) code	85285210
Other features
Display technology	IPS
Bezel width (top)	1.55 cm
Energy efficiency scale	A to G
OPS module slot	Yes
