Sony FW-55EZ20L Signage Display Digital signage flat panel 139.7 cm (55") LED Wi-Fi 350 cd/m² 4K Ultra HD Black Android 16/7

55” Professional display rated for 16/7 operation with essential professional functions

Description

Business-friendly with easy content sharing, control and customization
Ideal for digital signage and corporate applications, the slim, easy-to-use FW-43EZ20L Professional Display adds impact to all your visual communications. Very high 4K picture quality with 350 nit screen brightness is complemented by simple setup, content sharing and networked control – ideal for today’s connected AV environments.

Brilliant 4K image quality that’s seen by everyone
Advanced Sony picture processing technologies ensure your content looks its best, while 350 nit panel brightness ensures clear visibility in indoor environments. The display’s wide viewing angle lets everyone in the room enjoy crisp, clear images wherever they’re positioned.

Enjoy finer detail
4K X-Reality PRO upscales pictures closer to true 4K quality. Images are sharpened and refined in real time, revealing extra detail from lower-resolution content.

Vivid, natural color
Live Color technology brings images alive with a brilliant palette of vibrant, natural colors.

Smooth on-screen movement
Motionflow XR ensures smoother, more natural reproduction of rapidly-moving on-screen images.

Great pictures deserve brilliant sound
The slim design of FW-43EZ20L incorporates an X-Balanced Speaker™, offering clear voice quality to enhance video conferences and digital signage.

Portrait or landscape installation
Install BRAVIA in portrait or landscape orientation to suit any corporate space.

Easy access side-mounted connections
Signal connections, networking and other interfaces are conveniently side mounted for easy installation and access when the display is in portrait position.

Quick, easy setup
Simple Pro Settings allows customization of BRAVIA to suit the demands of any business or retail environment. Schedule power on/off times, select input source on switch on, wake up the display when an input signal’s detected – and more.

Networked control
Remotely control and monitor BRAVIA display functions – like power on/off, input source and volume – over IP networks or using familiar RS-232C protocols.

Signage made simple
Built-in support for HTML5 makes it easy to display interactive signage content on BRAVIA without the need for a dedicated set-top box, media player or PC. The on-board BRAVIA Signage Free (BSF) 2.0 app automatically plays out HTML content, including videos and photos from the display’s internal 16GB storage, or when a USB stick memory is slipped into BRAVIA.

Wireless screen mirroring
Easily mirror content wirelessly from handheld device onto BRAVIA with in-built support for Apple AirPlay and Google Chromecast.

Sustainability in every scene
With growing demand for ever larger display screens, there is also the risk of greater resource and energy use. However, Sony’s sustainability commitments are realizing efficiency gains from product development right through to customers’ viewing screens.

Specifications

Display
LED backlight	Yes
Panel type	IPS
LED backlighting type	Direct-LED
Touchscreen	No
Display technology	LED
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	400000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	139 cm
Native aspect ratio	16:9
Motion interpolation technology	Motionflow XR
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Yes
Haze rate	1%
Ports & interfaces
USB port	Yes
RS-232C	Yes
Wi-Fi	Yes
DisplayPorts quantity	0
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
Composite video in	1
Audio (L/R) in	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black

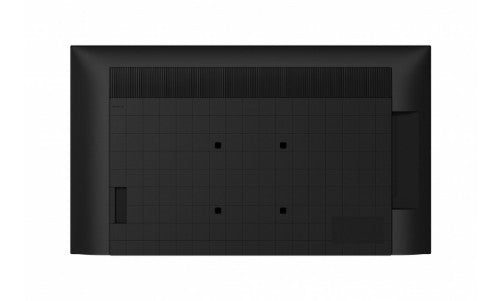

Panel mounting interface	300 x 300 mm
VESA mounting	Yes
Performance
Purpose	Commercial
Operating hours (hours/days)	16/7
HDCP	Yes
Apple AirPlay support	Yes
HDCP version	2.3
Wi-Fi	Yes
Power
Power consumption (typical)	202 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
Computer system
Computer system	No
Operating system installed	Android
Internal storage capacity	16 GB
Video formats supported	MPEG1, MPEG2-PS, WEBM
Audio formats supported	AAC, OGG, AC4
Weight & dimensions
Width (with stand)	1243 mm
Height (with stand)	787 mm
Depth (with stand)	338 mm
Weight (with stand)	16.2 kg
Display width	1243 mm
Display depth	71 mm
Display height	721 mm
Display weight	15.3 kg
Packaging data
Package width	1362 mm
Package depth	160 mm
Package height	840 mm
Package weight	21 kg
Technical details
VESA mounting	Yes
Panel type	IPS
LED backlighting type	Direct-LED
Weight (with stand)	16.2 kg
Thin Client
Operating system installed	Android
Internal storage capacity	16 GB
Video formats supported	MPEG1, MPEG2-PS, WEBM
Audio formats supported	AAC, OGG, AC4
Other features
Panel type	IPS
Wi-Fi	Yes
Width (with stand)	1243 mm
Height (with stand)	787 mm
Display technology	LED
Depth (with stand)	338 mm
Weight (with stand)	16.2 kg
