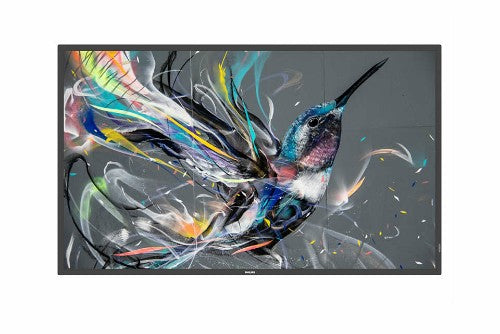

Philips 55BDL3650QE/00 Signage Display Digital signage flat panel 138.7 cm (54.6") Wi-Fi 350 cd/m² 4K Ultra HD Black Built-in processor Android 10

54.6" 3840 x 2160, 16:9, 350 cd/m², 1200:1, Android 10, 100–240 V, 50/60 Hz, 70 W

Description

Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.

100% recycled and recyclable packaging
Designed with manufacturing processes, physical features, materials, packaging and built-in software that are kinder to the environment and deliver better energy efficiency, the Philips Signage 3650 EcoDesign display is designed to operate using less than half the power of its counterparts, while still delivering the same unrivalled performance.

Android SoC processor. Native and web apps
Powered by our Android 10 SoC platform, these hard-working displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring that display specs stay up to the moment for longer.

Connect and control your content via the cloud
Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the Internet using the optional CRD22 Wi-Fi module or via LAN, and enjoy your own created playlists.

EPEAT Silver Climate+ certified
Recognised by and registered with EPEAT with a Silver Climate+ Ecolabel, the Philips Signage 3650 EcoDesign meets the robust set of criteria laid out by the world's premier ecolabel for electronics.

FailOver. Ensure that content is always running
Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content onscreen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Optional Interact for wireless screen share
Wirelessly screen-share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting to the secured network.

PPDS Wave ready for remote management
Unlock the power, versatility and intelligence inside your Philips Signage 3650 EcoDesign displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules — saving you time, energy and environmental impact.

Wi-Fi and Bluetooth 5.2 via optional module
Easily schedule content to play from a USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Specifications

Display
LED backlight	Yes
Panel type	IPS
Display number of colours	1.06 billion colours
LED backlighting type	Direct-LED
Touchscreen	No
Display diagonal	138.7 cm (54.6")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2854 x 0.2854 mm
Display diagonal (metric)	125.7 cm
Native aspect ratio	16:9
Ports & interfaces
USB port	Yes
HDMI version	2.0
Infrared data port	Yes
Wi-Fi	Yes
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Ethernet LAN	Yes
HDMI ports quantity	2
DVI port	Yes
DVI-I ports quantity	1
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB version	2.0
USB ports quantity	4
USB 2.0 Type-B ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	1.39 cm
Bezel width (side)	1.39 cm
Bezel width (bottom)	1.39 cm
Product colour	Black
Panel mounting interface	400 x 400 mm
VESA mounting	Yes
Screen shape	Flat
Performance
Purpose	Universal
Mean time between failures (MTBF)	30000 h
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish
On Screen Display (OSD)	Yes
Open Pluggable Specification (OPS)	Yes
Wi-Fi	Yes
Power
Power consumption (max)	120 W
Power consumption (typical)	70 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency class (SDR)	D
Computer system
Computer system	No
Operating system installed	Android 10
Video formats supported	H.263, H.264, H.265, MPEG1, MPEG2, VP8, VP9
Audio formats supported	AAC, HE-AAC, MPEG
Image formats supported	BMP, JPEG, PNG
Built-in processor	Yes
Weight & dimensions
Display width	1241.8 mm
Display depth	63.6 mm
Display height	712.6 mm
Display weight	17.2 kg
Packaging content
Cables included	AC, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Technical details
VESA mounting	Yes
Panel type	IPS
LED backlighting type	Direct-LED
Internal memory	3000 MB
Warranty period	3 year(s)
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RoHS, VCCI
Thin Client
Operating system installed	Android 10
Video formats supported	H.263, H.264, H.265, MPEG1, MPEG2, VP8, VP9
Audio formats supported	AAC, HE-AAC, MPEG
Image formats supported	BMP, JPEG, PNG
Packaging data
Cables included	AC, RS-232
Features
Tiled bezel width	1.5 cm
Other features
Panel type	IPS
Wi-Fi	Yes
Power consumption (max)	120 W
Mean time between failures (MTBF)	30000 h
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Bezel width (top)	1.39 cm
Bezel width (side)	1.39 cm
Bezel width (bottom)	1.39 cm
