Vestel PN55D-4H Signage Display Digital signage flat panel 139.7 cm (55") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

55" IPS, 4K UHD, 500 cd/m², 8ms, Ethernet/Wi-Fi/Bluetooth 5.1, 110-240V, 50/60Hz

Description

Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Signal Failover

Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Scheduler

The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

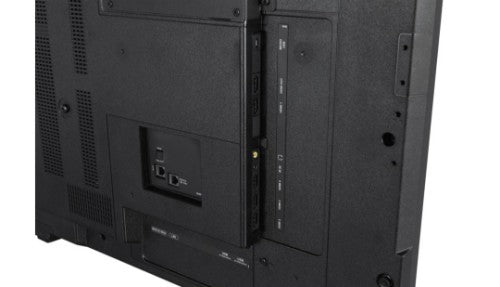

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specifications

Display
LED backlight	Yes
Panel type	IPS
Display number of colours	1.07 billion colours
LED backlighting type	Slim Direct-LED
Active display area (W x H)	680.4 x 1209.6 mm
Display technology	LED
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	50000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	139 cm
Panel life	50000 h
Colour saturation	72%
Native refresh rate	60 Hz
Haze rate	1%
RGB colour space	NTSC
Ports & interfaces
USB connector type	Micro-USB, USB Type-A
USB port	Yes
HDMI version	2.0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Ethernet LAN	Yes
HDMI ports quantity	5
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	4
HDMI input ports quantity	4
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	10 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	6 mm
Bezel width (side)	6 mm
Bezel width (bottom)	9 mm
Product colour	Black
Panel mounting interface	400 x 400 mm
VESA mounting	Yes
Tilt adjustment	Yes
Bezel type	Narrow Bezel
Performance
Purpose	Corporate
Operating hours (hours/days)	24/7
On Screen Display (OSD)	Yes
Miracast	Yes
Networking standards	IEEE 802.1x
Security algorithms	SNMP
Web browser	Yes
Wi-Fi	Yes
Panel life	50000 h
Power
Power consumption (max)	180 W
Power consumption (typical)	138 W
Power consumption (standby)	2 W
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	138 kWh
Energy consumption (HDR) per 1000 hours	138 kWh
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Processor cores	4
Processor family	ARM Cortex
Processor model	A55
Operating system installed	Android
Internal memory	2 GB
Internal storage capacity	16 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	ARM Mali-G31 MP2
Weight & dimensions
Display width	1236 mm
Display depth	63 mm
Display height	709 mm
Display weight	18.5 kg
Packaging data
Package width	1369 mm
Package depth	165 mm
Package height	874 mm
Package weight	24.1 kg
Batteries included	Yes
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, IR
Packaging content
Batteries included	Yes
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, IR
Tilt angle	30°
Tilt adjustment	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Technical details
VESA mounting	Yes
USB connector type	Micro-USB, USB Type-A
Panel type	IPS
LED backlighting type	Slim Direct-LED
Compliance certificates	CE, Electromagnetic Compatibility (EMC)
Thin Client
Processor family	ARM Cortex
Processor model	A55
Operating system installed	Android
Internal memory	2 GB
Internal storage capacity	16 GB
Other features
USB connector type	Micro-USB, USB Type-A
Panel type	IPS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Power consumption (max)	180 W
Display technology	LED
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Bezel width (top)	6 mm
Bezel width (side)	6 mm
Bezel width (bottom)	9 mm
Tilt adjustment	Yes
