Kingston Technology

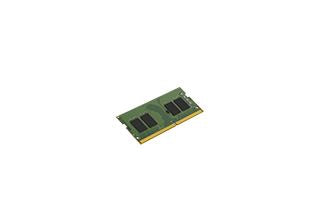

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 3200 MT/s

SKU KVR32S22S6/8
£37.94
£37.94
Excluding taxes
8 GB, 3200 MT/s, DDR4, Non-ECC, CL22, SODIMM, 1Rx16

Description

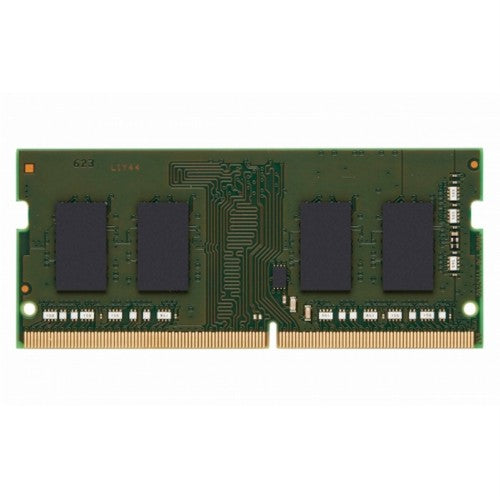

This document describes ValueRAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.

Specifications

Power
Memory voltage 1.2 V
Design
JEDEC standard Yes
Memory
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 8 GB
Internal memory 8 GB
Component for Laptop
Memory form factor 260-pin SO-DIMM
CAS latency 22
Memory voltage 1.2 V
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
SPD profile Yes
ECC No
Internal memory type DDR4
Features
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 8 GB
Internal memory 8 GB
Component for Laptop
Memory form factor 260-pin SO-DIMM
CAS latency 22
Memory voltage 1.2 V
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
SPD profile Yes
ECC No
Internal memory type DDR4
JEDEC standard Yes
Harmonized System (HS) code 84733020
Memory data transfer rate 3200 MT/s
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 69.6 mm
Height 30 mm
Logistics data
Harmonized System (HS) code 84733020
Other features
Harmonized System (HS) code 84733020
