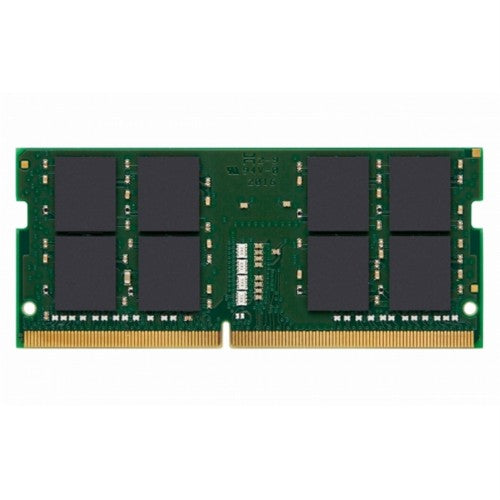

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s

SKU KVR32S22D8/32
£183.67
£183.67
Excluding taxes
32GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V

Key Features

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Terminated control command and address bus

Description

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.

Specifications

Power
Memory voltage 1.2 V
Design
JEDEC standard Yes
Technical details
Country of origin Taiwan
Doesn't contain Halogen
Compliance certificates RoHS
Memory
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 32 GB
Internal memory 32 GB
Component for Laptop
Memory form factor 260-pin SO-DIMM
CAS latency 22
Memory voltage 1.2 V
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
ECC No
Internal memory type DDR4
Programming power voltage (VPP) 2.5 V
Features
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 32 GB
Internal memory 32 GB
Component for Laptop
Memory form factor 260-pin SO-DIMM
CAS latency 22
Memory voltage 1.2 V
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
Country of origin Taiwan
ECC No
Internal memory type DDR4
Programming power voltage (VPP) 2.5 V
JEDEC standard Yes
Harmonized System (HS) code 84733020
Memory data transfer rate 3200 MT/s
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
Sustainability
Doesn't contain Halogen
Weight & dimensions
Width 69.6 mm
Depth 3.7 mm
Height 30 mm
Logistics data
Harmonized System (HS) code 84733020
Other features
Country of origin Taiwan
Harmonized System (HS) code 84733020
