NETAC

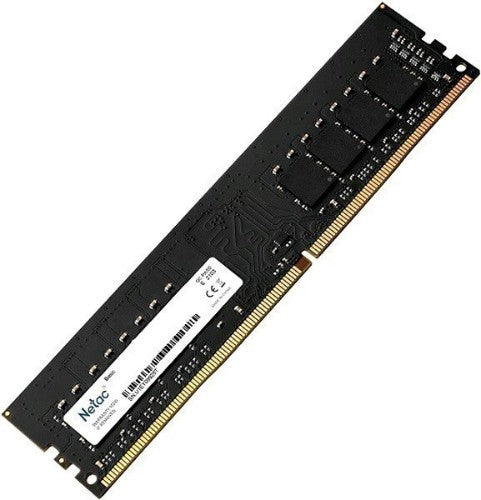

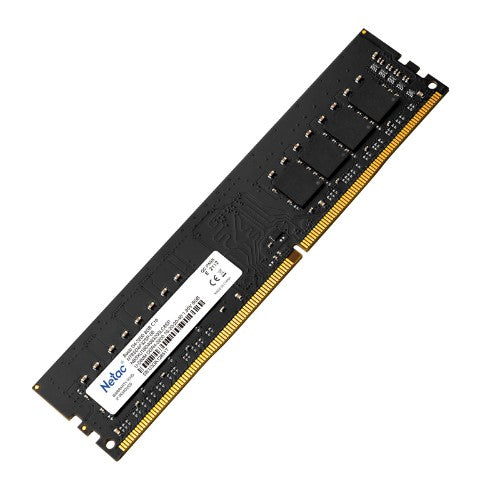

Netac Basic DDR4-3200 8G C16

SKU NTBSD4P32SP-08
£46.85
£46.85
Excluding taxes
Basic DDR4-3200 8G C16

Key Features

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • On-board I2C serial presence-detect (SPD) EEPROM
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Databus write cyclic redundancy check (CRC)
  • Temperature controlled refresh (TCR)
  • Command/Address (CA) parity
  • Per DRAM Addressability is supported
  • 8 bit pre-fetch
  • Fly-by topology
  • Command/Address latency (CAL)
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • Gold edge contacts
  • RoHS Compliant and Halogen-Fre

Description

Netac Basic DDR4
Original chips improve the performance of computer

Selected original chips, strict inspection process, 8-layer PCB board, stable performance

Excellent compatibility
Memory products have passed the motherboard compatibility test of mainstream brands on the market, ensure the stability of the system for along time

Gold-plated craft gold finger
Gold plating process, stronger conductivity and corrosion resistance

Specifications

Power
Memory voltage 1.35 V
Memory
Buffered memory type Unregistered (unbuffered)
Intel Extreme Memory Profile (XMP) Yes
Memory layout (modules x size) 1 x 8 GB
Internal memory 8 GB
Component for PC/Server
Memory form factor 288-pin DIMM
CAS latency 16
Memory voltage 1.35 V
Lead plating Gold
SPD profile Yes
Memory channels Single-channel
ECC No
Memory clock speed 3200 MHz
Internal memory type DDR4
Programming power voltage (VPP) 2.5 V
Features
Buffered memory type Unregistered (unbuffered)
Intel Extreme Memory Profile (XMP) Yes
Memory layout (modules x size) 1 x 8 GB
Internal memory 8 GB
Component for PC/Server
Memory form factor 288-pin DIMM
CAS latency 16
Memory voltage 1.35 V
Lead plating Gold
SPD profile Yes
Memory channels Single-channel
ECC No
Memory clock speed 3200 MHz
Internal memory type DDR4
Programming power voltage (VPP) 2.5 V
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
Technical details
Doesn't contain Halogen
Compliance certificates RoHS
Sustainability
Doesn't contain Halogen
Weight & dimensions
Width 133.3 mm
Height 31.2 mm
