Kingston Technology

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR5 5600 MT/s

SKU KVR56S46BD8-32
£159.86
£159.86
Excluding taxes
32GB DDR5 5600MT/s Non-ECC Unbuffered SODIMM CL46 2Rx8 1.1V 262-pin 16Gbit

Description

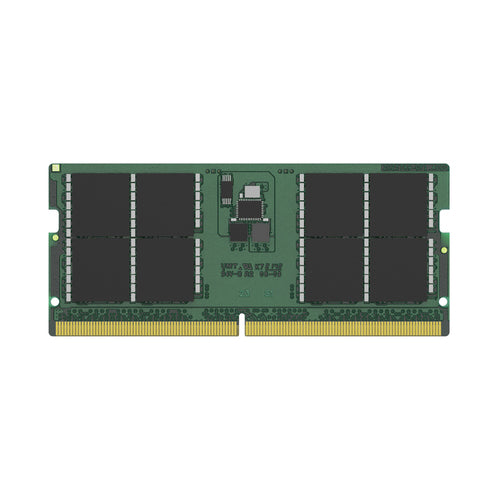

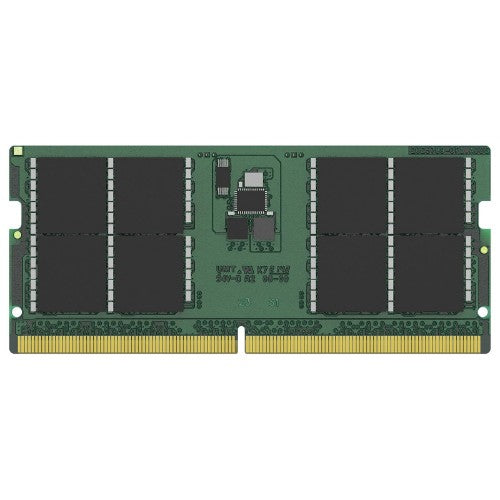

ValueRAM's KVR56S46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.


  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free



Specifications

Power
Memory voltage 1.1 V
Memory
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 32 GB
Internal memory 32 GB
Component for Laptop
Memory form factor 262-pin SO-DIMM
CAS latency 46
Memory voltage 1.1 V
Lead plating Gold
Module configuration 4096M x 64
SPD profile Yes
Memory ranking 2
ECC No
Internal memory type DDR5
Features
On-Die ECC Yes
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 32 GB
Internal memory 32 GB
Component for Laptop
Memory form factor 262-pin SO-DIMM
CAS latency 46
Memory voltage 1.1 V
Lead plating Gold
Module configuration 4096M x 64
SPD profile Yes
Memory ranking 2
ECC No
Internal memory type DDR5
Memory data transfer rate 5600 MT/s
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
Technical details
Doesn't contain Halogen
Compliance certificates RoHS
Sustainability
Doesn't contain Halogen
Weight & dimensions
Width 69.6 mm
Height 30 mm
