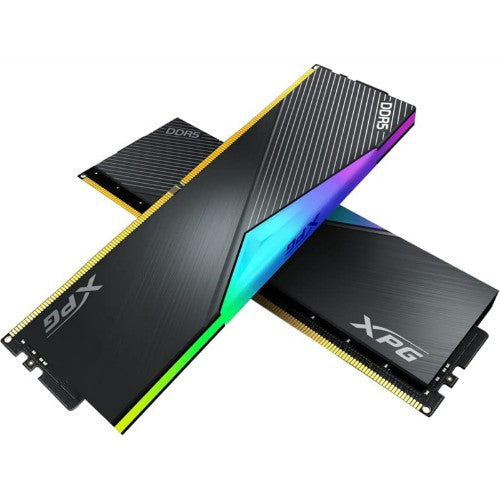

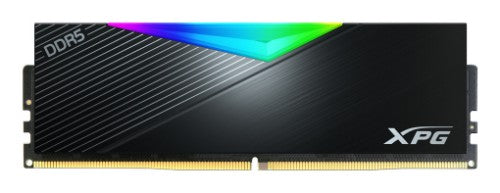

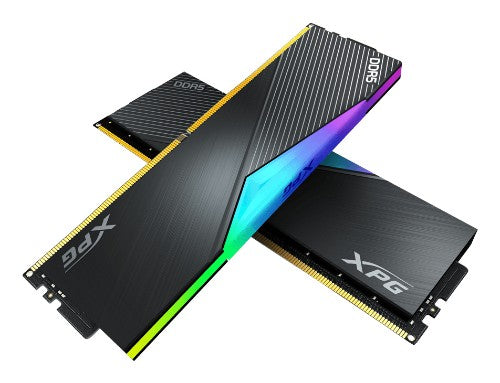

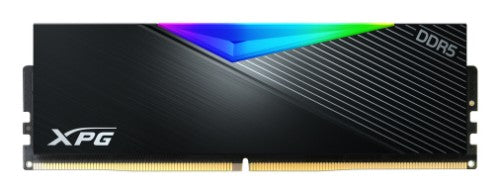

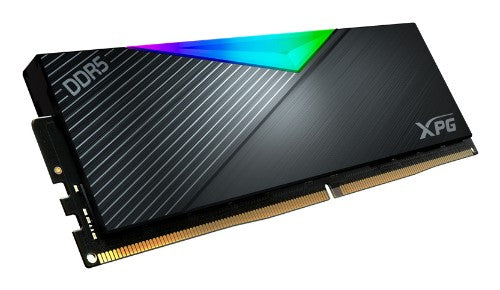

XPG LANCER RGB memory module 64 GB 2 x 32 GB DDR5 6400 MHz

64 GB (2x 32 GB), DDR5, 6400 MHz, UDIMM, 1.35 V, RGB

Key Features

• New speed benchmark in gaming memory
• Customizable RGB light effects
• Beautifully crafted heat sink
• PMIC and ECC for Reliability
• Fast clock speeds up to 7200MT/s
• Supports Intel® XMP 3.0 and AMD EXPO for easy overclocking
• RoHS compliant

Description

LANCER RGB DDR5
UP YOUR GAME

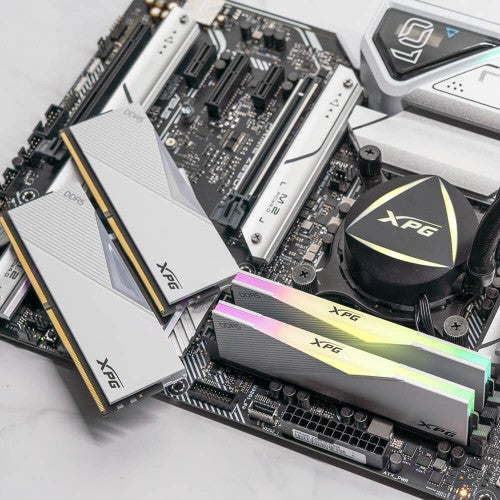

Distinctly Blizzard White
The LANCER RGB DDR5 also comes in Blizzard White for those looking to create a distinctly, all-white PC build.

A New Speed ​​Benchmark in Gaming Memory
The XPG LANCER ushers in the DDR5 era for gaming memory. Reaching frequencies of up to 7200 MT/s, It will give you a major performance boost for gaming and overclocking.

RGB Your Way
Set the RGB lighting the way you want it. Choose from different effects (static, breathing, and comet) or sync the lights with your favorite jams via Music Mode. All this can be done through RGB control software from all the major motherboard brands.

Create Personalized Lightshow with XPG Prime
XPG Prime lighting control software not only allows you to set unique DRAM lighting effects, you can also sync all Prime supported XPG RGB products to create imaginative light shows and shape your own Prime ecosystem.

Enhanced Power Management
The XPG LANCER DDR5 features a built-in Power Management IC (PMIC) that enhance power supply stability. It's lower operating voltage also make LANCER more power-efficient than DDR4.

Stability and Reliability
With On-die error correcting code (ECC) this module can correct errors in real-time to provide increased stability and reliability.

Made with High-Quality Materials
High-quality ICs and PCBs ensure uncompromised performance and reliable overclocking, ideal for discerning gamers and overclockers.

AMD EXPO
Support for AMD EXPO (EXtended Profiles for Overclocking) and compatibility with the latest platforms for reliability and stability.

Overclocking Made Easy
With support for Intel XMP 3.0, get overclocking easily without the need to hassle with BIOS settings. There is no need to repeatedly adjust and fine-tune overclocking parameters.

QuikTips: DDR5 vs DDR4 - Appearance
DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

QuikTips: DDR5 vs DDR4 - Chip Architecture
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length and Prefetch are also doubled. And to ensure data integrity, they feature error correcting code (ECC) technology.

QuikTips: DDR5 vs DDR4 - Performance
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MT/s and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

Specifications

Memory
Package type	Box
Buffered memory type	Unregistered (unbuffered)
Intel Extreme Memory Profile (XMP)	Yes
Intel Extreme Memory Profile (XMP) version	3.0
Memory layout (modules x size)	2 x 32 GB
Internal memory	64 GB
Component for	PC
Memory form factor	288-pin DIMM
CAS latency	32
Memory voltage	1.35 V
Memory clock speed	6400 MHz
Internal memory type	DDR5
Power
Memory voltage	1.35 V
Design
Backlight colour	Multicolour
Backlight	Yes
Cooling type	Heatsink
Technical details
Cooling type	Heatsink
Compliance certificates	RoHS
Features
On-Die ECC	Yes
Buffered memory type	Unregistered (unbuffered)
Intel Extreme Memory Profile (XMP)	Yes
Intel Extreme Memory Profile (XMP) version	3.0
Backlight colour	Multicolour
Backlight	Yes
Memory layout (modules x size)	2 x 32 GB
Internal memory	64 GB
Component for	PC
Memory form factor	288-pin DIMM
CAS latency	32
Memory voltage	1.35 V
Cooling type	Heatsink
Memory clock speed	6400 MHz
Internal memory type	DDR5
AMD Extended Profiles for Overclocking (EXPO) version	1.0
AMD Extended Profiles for Overclocking (EXPO)	Yes
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-20 - 65 °C
Weight & dimensions
Package width	67 mm
Package depth	150 mm
Package height	15.5 mm
Width	40 mm
Depth	133.3 mm
Height	8 mm
Weight	149.6 g
Package type	Box
Packaging data
Package width	67 mm
Package depth	150 mm
Package height	15.5 mm
Package type	Box
