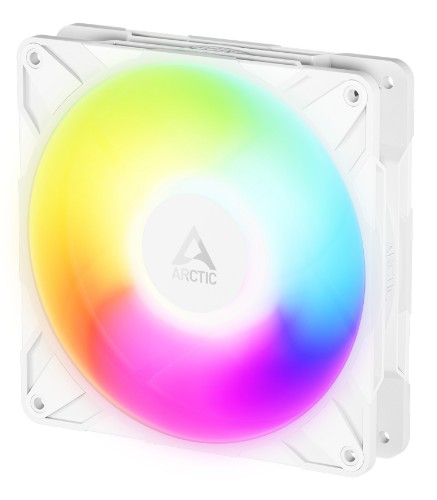

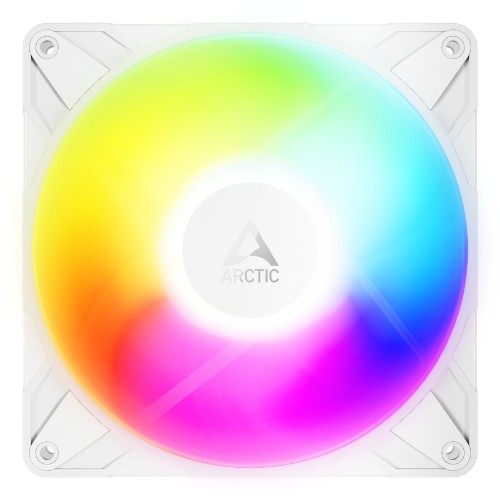

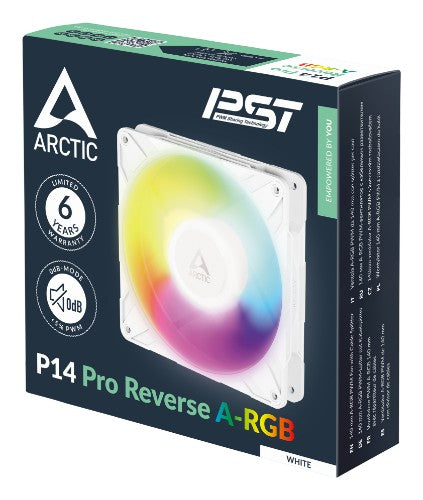

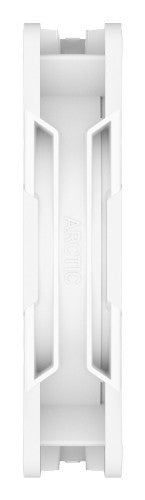

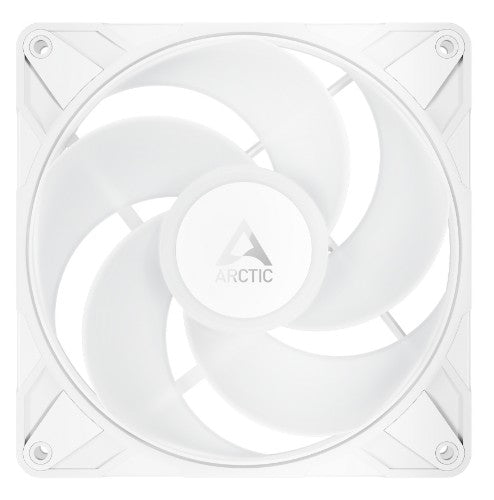

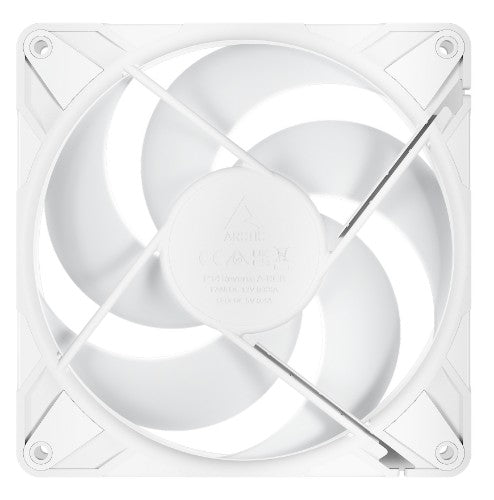

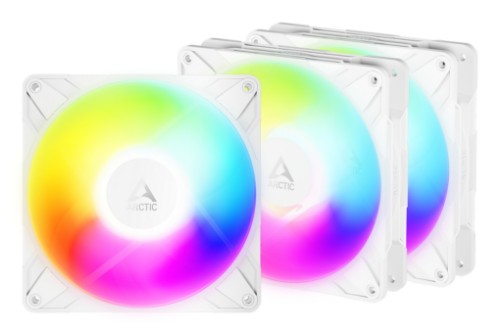

ARCTIC Freezer P14 Pro Reverse A-RGB (White) - 3 Pack - 140 mm A-RGB PWM Fan with Cable Splitter

P14 Pro Reverse A-RGB (White) - 3 Pack - 140 mm A-RGB PWM Fan with Cable Splitter

Reasons To Buy

Reversed Airflow

The P14 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

Optimized FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	14 cm
Maximum airflow	98 cfm
Maximum air pressure	5.1 mmH2O
Airflow	166.5 m³/h
Quantity per pack	3 pc(s)
Number of fan blades	5
Fan speed (min)	400 RPM
Fan speed (max)	2650 RPM
Design
Fan connector	4-pin + 4-pin
Illumination colour	Multi
Product colour	White
Cable length	0.48 m
Illumination LED	Yes
Number of LEDs	12
Number of fan blades	5
LED connector type	3-pin + 3-pin
Technical details
Type	Fan
Fan diameter	14 cm
Maximum airflow	98 cfm
Maximum air pressure	5.1 mmH2O
Airflow	166.5 m³/h
Cable length	0.48 m
Fan connector	4-pin + 4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Rated voltage	12 V
Starting voltage	4 V
Rated current	0.4 A
LED voltage	5 V
LED current	0.4 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 30 mm
Package depth	148 mm
Package width	144 mm
Package height	100 mm
Fan weight	253 g
Package weight	840 g
Cable length	0.48 m
Packaging data
Package depth	148 mm
Package width	144 mm
Package height	100 mm
Package weight	840 g
Package type	Box
Indication
Illumination colour	Multi
Packaging content
Screws included	Yes
Number of screws	12
Package type	Box
Other features
LED voltage	5 V
