ARCTIC

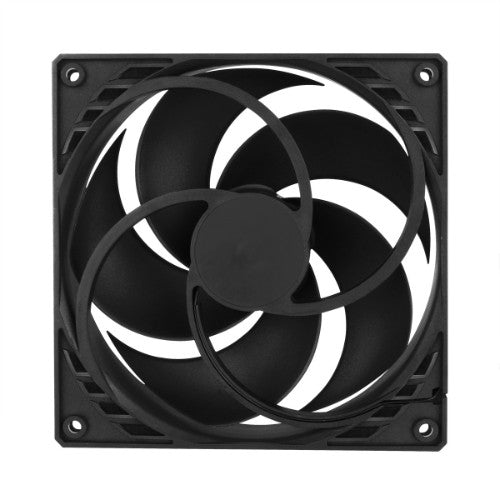

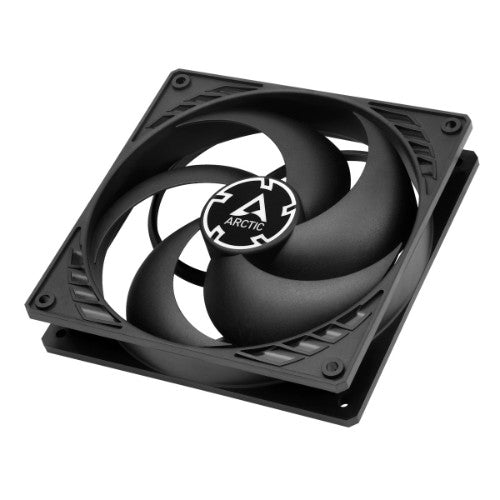

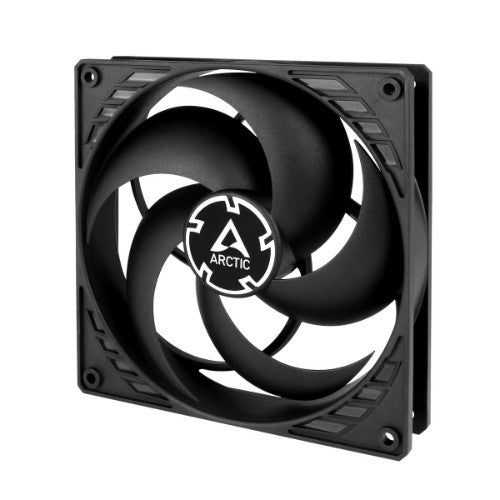

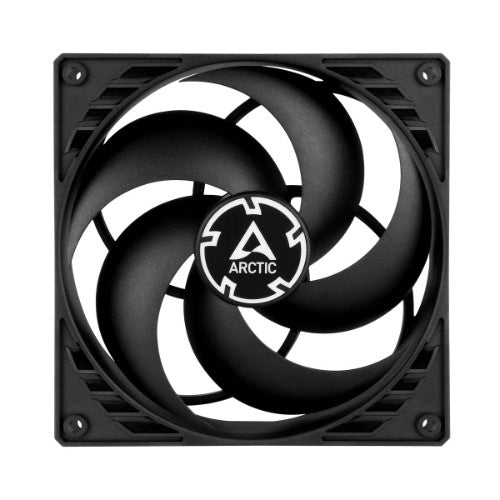

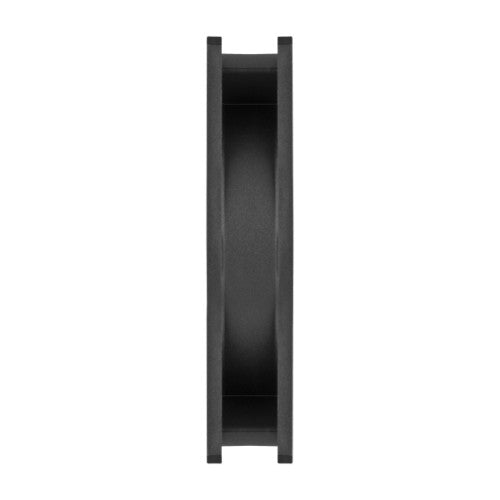

ARCTIC P14 – Pressure-optimised 140 mm Fan

SKU ACFAN00123A
£3.39
£3.39
Excluding taxes
140 mm, 1700 RPM, 12 V DC, 3-pin, 191 g

Key Features

  • Optimised for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • Push- or pull-configuration possible

Reasons To Buy

Optimised for Static Pressure

During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Description

The P14 fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.

Specifications

Performance
Suitable location Computer case
Fan connector 3-pin
Rotational speed (max) 1700 RPM
Noise level 0.3 sone
Bearing type Fluid Dynamic Bearing (FDB)
Noise level (high speed) 24.5 dB
Type Fan
Fan diameter 14 cm
Supported processor sockets Not supported
Compatible processor series Not supported
Maximum airflow 72.8 cfm
Airflow 123.76 m³/h
Number of fans 1 fan(s)
Design
Fan connector 3-pin
Number of fans 1 fan(s)
Product colour Black
Cable length 0.4 m
Technical details
Noise level (high speed) 24.5 dB
Type Fan
Fan diameter 14 cm
Supported processor sockets Not supported
Compatible processor series Not supported
Maximum airflow 72.8 cfm
Airflow 123.76 m³/h
Number of fans 1 fan(s)
Cable length 0.4 m
Fan connector 3-pin
Ports & interfaces
Fan connector 3-pin
Power
Starting voltage 2.1 V
Voltage 12 V
Rated current 0.15 A
Colour
Product colour Black
Weight & dimensions
Package depth 143 mm
Package width 143 mm
Package height 29 mm
Width 140 mm
Package weight 227 g
Depth 140 mm
Height 27 mm
Weight 191 g
Cable length 0.4 m
Packaging data
Package depth 143 mm
Package width 143 mm
Package height 29 mm
Package weight 227 g
Package type Box
Packaging content
Screws included Yes
Number of screws 4
Package type Box
Other features
Country of origin China
Harmonized System (HS) code 84733080
Logistics data
Harmonized System (HS) code 84733080
