be quiet! Dark Rock Slim CPU Cooler

Dark Rock Slim, 180W TDP, 1500 rpm, 23.6dB

Key Features

• Compact construction does not block memory slots
• Silent Wings 3 120mm PWM fan features an advanced fluid-dynamic bearing and a smooth 6-pole motor
• Virtually inaudible with only 23.6dB(A) at maximum fan speed
• Four high-performance copper heat pipes that provide maximal heat conductance
• Wave-contoured cooling fins for increased air circulation
• Special black coating with ceramic particles enables perfect heat transfer
• Optionally supports an additional 120mm retail fan; fan clips are included within the scope of delivery
• Easily installable black installation kit can be mounted from above
• Elegant, brushed aluminum top cover with diamond cut finish
• Product conception, design and quality control in Germany

Reasons To Buy

COMPACT CONSTRUCTION

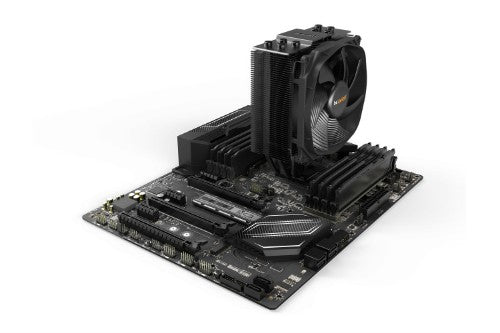

The compact design achieves excellent heat dissipation in small spaces, making the Dark Rock Slim the perfect solution for high-end builds with limited space. Due to its compact construction no memory slots are blocked.

VIRTUALLY INAUDIBLE OPERATION

The Silent Wings 3 120mm PWM fan features seven airflow-optimized fan blades, a six-pole motor for less vibration and a durable fluid-dynamic bearing. Decoupled fan mounting with vibration-isolating elements on the heat sink.

EXCEPTIONALLY HIGH COOLING POWER

Dark Rock Slim provides an impressive rating of 180W TDP and achieves low temperatures even during periods of peak CPU performance. It is also possible to add another 120mm fan for even better cooling.

HIGHLY ADVANCED DESIGN

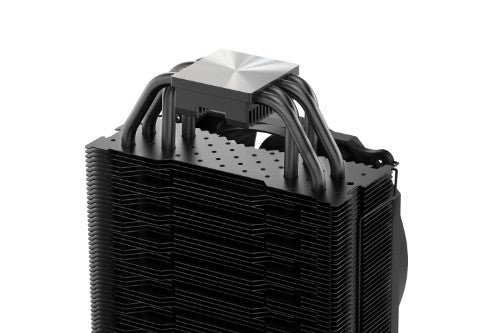

Dark Rock Slim is equipped with four advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

Description

No Compromise Silence and Performance
The be quiet! Dark Rock Slim offers an exceptionally high cooling performance of 180W TDP and virtually inaudible operation. Perfect for high-end builds with limited space.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	1500 RPM
Number of fins	51
Fins material	Aluminium
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	180 W
Noise level (low speed)	11 dB
Noise level (high speed)	23.6 dB
Number of heat pipes	4
Heat pipes diameter	6 mm
Type	Cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Number of fans	1 fan(s)
Design
Fan connector	4-pin
Number of fins	51
Fins material	Aluminium
Number of heat pipes	4
Number of fans	1 fan(s)
Product colour	Black
Certification	CE
Cable length	0.22 m
Base plate material	Copper
Technical details
Thermal Design Power (TDP)	180 W
Noise level (low speed)	11 dB
Noise level (high speed)	23.6 dB
Number of heat pipes	4
Heat pipes diameter	6 mm
Type	Cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Number of fans	1 fan(s)
Cable length	0.22 m
Fan connector	4-pin
Compliance certificates	RoHS
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Thermal Design Power (TDP)	180 W
Rated current	0.08 A
Power consumption (typical)	0.96 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 23 mm
Package depth	115 mm
Package width	190 mm
Package height	190 mm
Heat pipes diameter	6 mm
Width	127 mm
Package weight	993 g
Depth	72 mm
Height	159.4 mm
Weight	620 g
Heatsink dimensions (W x D x H)	127 x 47.4 x 159.4 mm
Cable length	0.22 m
Packaging data
Package depth	115 mm
Package width	190 mm
Package height	190 mm
Package weight	993 g
Certificates
Certification	CE
Packaging content

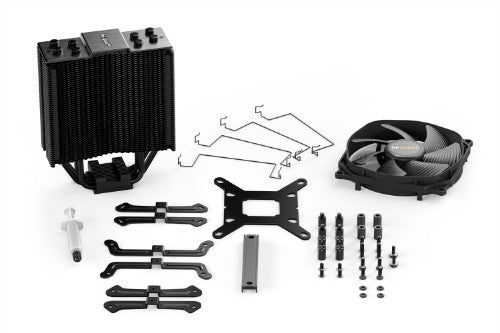

Mounting kit	Yes
Thermal grease	Yes
Manual	Yes
Other features
Heatsink dimensions (W x D x H)	127 x 47.4 x 159.4 mm
Thermal grease	Yes
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case gross weight	17.2 kg
Products per master (outer) case	16 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	475 mm
Master (outer) case height	410 mm
Harmonized System (HS) code	84733080
