Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm Black 1 pc(s)

500-2000 RPM, 13-56 CFM, 10-33.2 dB, RGB LED, 12V, 120x120x25 mm, black, 1 pc

Key Features

• Less turbulence thanks to aerodynamic stator struts
• Supports ASUS AURA, Gigabytes Fusion MSI Mystic Light and others
• Trip Wire provides a micro-turbulent layer for enhanced blade efficiency
• Supports chaining to simplify cable management
• Rifle bearings – more efficient than standard sleeve
• Combines aesthetic design and reliable performance
• PWM control with a. wide RPM speed range
• Fits standard 120 mm (105 x 105 hole pattern)

Description

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

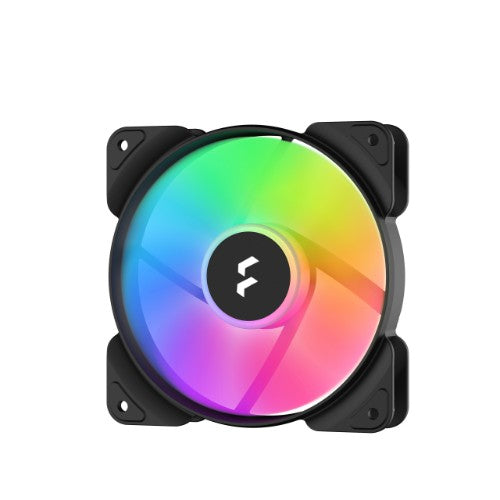

In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance

Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Rifle bearings
More efficient than standard sleeve bearings

Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

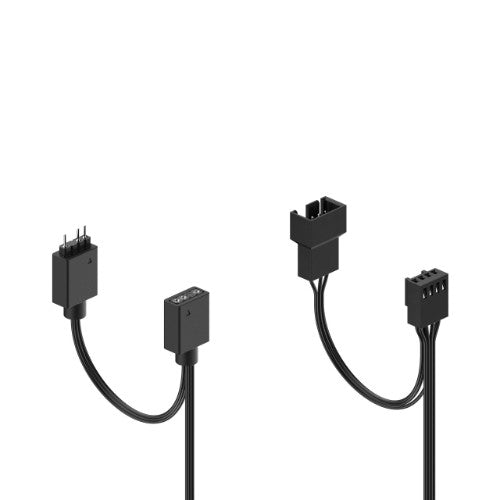

Chain feature
Simplify cable management by using the Aspect chain feature for multiple units

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Bearing type	Rifle bearing
Noise level (low speed)	10 dB
Noise level (high speed)	33.2 dB
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Minimum airflow (imperial)	13 cfm
Maximum airflow	56 cfm
Minimum air pressure	0.23 mmH2O
Maximum air pressure	2.34 mmH2O
Airflow	95.1 m³/h
Number of fans	1 fan(s)
Mean time between failures (MTBF)	90000 h
Quantity per pack	1 pc(s)
Number of fan blades	7
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Illumination colour	Multi
Product colour	Black
Cable length	0.5 m
Illumination LED	Yes
Number of fan blades	7
Technical details
Noise level (low speed)	10 dB
Noise level (high speed)	33.2 dB
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Minimum airflow (imperial)	13 cfm
Maximum airflow	56 cfm
Minimum air pressure	0.23 mmH2O
Maximum air pressure	2.34 mmH2O
Airflow	95.1 m³/h
Number of fans	1 fan(s)
Cable length	0.5 m
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	5 V
Starting voltage	7 V
Voltage	12 V
Power consumption (typical)	1.68 W
Maximum current	0.37 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	192 mm
Package width	123 mm
Package height	30 mm
Package weight	155 g
Weight	135 g
Cable length	0.5 m
Endurance
Mean time between failures (MTBF)	90000 h
Packaging data
Package depth	192 mm
Package width	123 mm
Package height	30 mm
Package weight	155 g
Indication
Illumination colour	Multi
Packaging content
Screws included	Yes
Number of screws	4
Other features
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
