ARCTIC

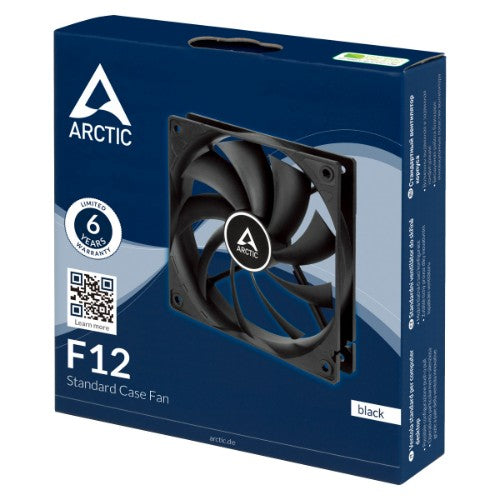

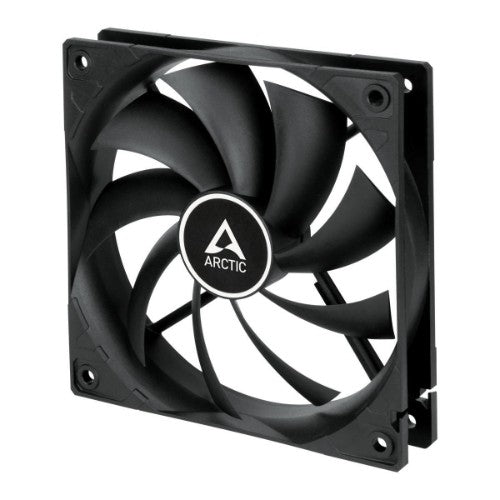

ARCTIC F12 - 120 mm Standard Case Fan

SKU ACFAN00201A
£2.07
£2.07
Excluding taxes
120 mm, 1350 RPM, 53 CFM/ 90.1 m³/h, 1 mm/H²O, 12 V DC, 107 g, Black

Key Features

  • Extremely quiet with low noise impeller
  • High airflow and static pressure
  • Fluid dynamic bearing ensures extended lifespan

Reasons To Buy

Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

Two Way installation

Blow warm air out of the case

Draw cool air into your case

Description

The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.

Specifications

Performance
Suitable location Computer case
Fan connector 3-pin
Rotational speed (min) 0 RPM
Rotational speed (max) 1350 RPM
Noise level 0.3 sone
Bearing type Fluid Dynamic Bearing (FDB)
Type Fan
Operating temperature (T-T) 0 - 40 °C
Fan diameter 12 cm
Supported processor sockets Not supported
Compatible processor series Not supported
Maximum airflow 53 cfm
Minimum air pressure 1 mmH2O
Airflow 90.1 m³/h
Number of fans 1 fan(s)
Quantity per pack 1 pc(s)
Design
Fan connector 3-pin
Number of fans 1 fan(s)
Product colour Black
Cable length 0.4 m
Technical details
Type Fan
Fan diameter 12 cm
Supported processor sockets Not supported
Compatible processor series Not supported
Maximum airflow 53 cfm
Minimum air pressure 1 mmH2O
Airflow 90.1 m³/h
Number of fans 1 fan(s)
Cable length 0.4 m
Fan connector 3-pin
Ports & interfaces
Fan connector 3-pin
Power
Starting voltage 2.7 V
Voltage 12 V
Rated current 0.12 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Colour
Product colour Black
Weight & dimensions
Package depth 27 mm
Package width 123 mm
Package height 123 mm
Width 120 mm
Package weight 130 g
Depth 120 mm
Height 25 mm
Weight 107 g
Cable length 0.4 m
Packaging data
Package depth 27 mm
Package width 123 mm
Package height 123 mm
Package weight 130 g
Package type Box
Packaging content
Package type Box
Other features
Country of origin Hong Kong
Harmonized System (HS) code 84733080
Logistics data
Harmonized System (HS) code 84733080
