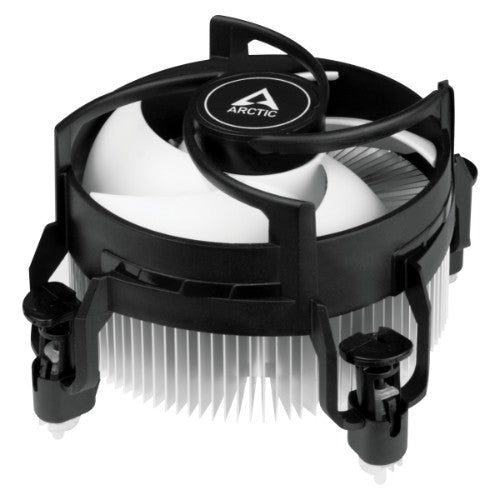

ARCTIC Alpine 17 - Compact Intel CPU Cooler

Intel, 92 mm, 100-2000 RPM, 0.06 A / 12 V, 288 g

Reasons To Buy

Designed for Intel Alder Lake

The Alpine 17 is exclusively compatible with Socket LGA1700 and Intel's latest Alder Lake CPUs.

Full control with wide rpm range

The Alpine 17 features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.

Easy and Tool-Free Installation

With the MX-4 already pre-applied, the Alpine 17 can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction inside the bearing is reduced and higher efficiency is achieved. In this way, less heat develops, there is less bearing noise and the fan life is extended.

Improved cooling performance through innovative heat sink design

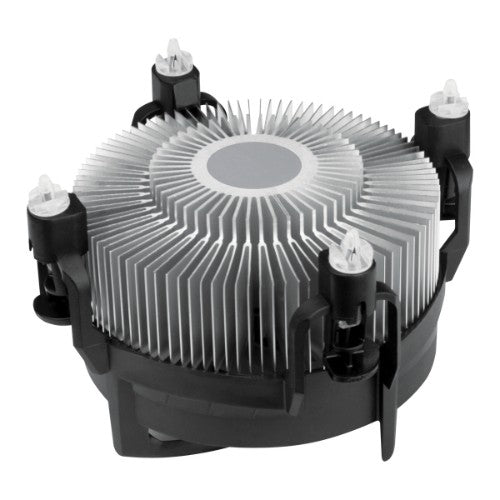

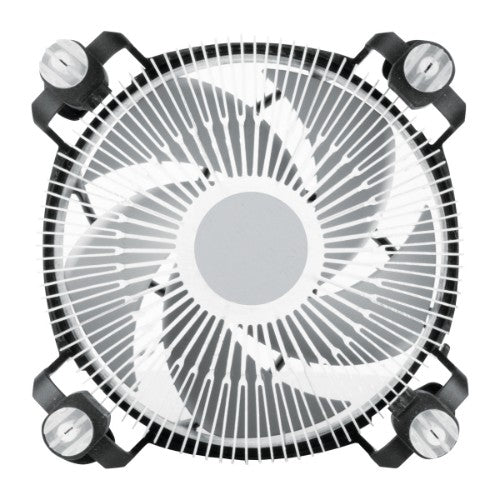

The extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow and thus an increase in cooling performance.

Description

CPU Air Cooler

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives; to boxed coolers to completely silent passive radiators. Broad compatibility and innovative features are part of our standard repertoire.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	100 RPM
Rotational speed (max)	2000 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	95 W
Type	Air cooler
Fan diameter	9.2 cm
Supported processor sockets	LGA 1700
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Material	Aluminium
Product colour	Black, Silver
Cable length	0.2 m
Radiator material	Aluminum
Technical details
Thermal Design Power (TDP)	95 W
Type	Air cooler
Fan diameter	9.2 cm
Supported processor sockets	LGA 1700
Number of fans	1 fan(s)
Material	Aluminium
Cable length	0.2 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Thermal Design Power (TDP)	95 W
Voltage	12 V
Rated current	0.06 A
Power supply	0.72 W
Colour
Product colour	Black, Silver
Weight & dimensions
Package depth	99 mm
Package width	99 mm
Package height	82 mm
Width	95 mm
Package weight	319 g
Depth	95 mm
Height	77 mm
Weight	288 g
Cable length	0.2 m
Radiator height	3.27 cm
Packaging data
Package depth	99 mm
Package width	99 mm
Package height	82 mm
Package weight	319 g
Package type	Box
Packaging content
Package type	Box
Other features
Country of origin	Hong Kong
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
