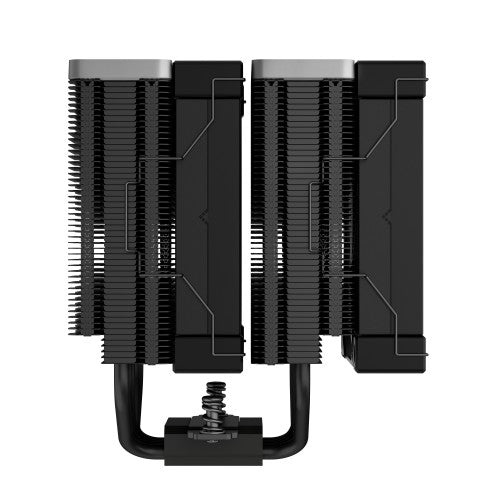

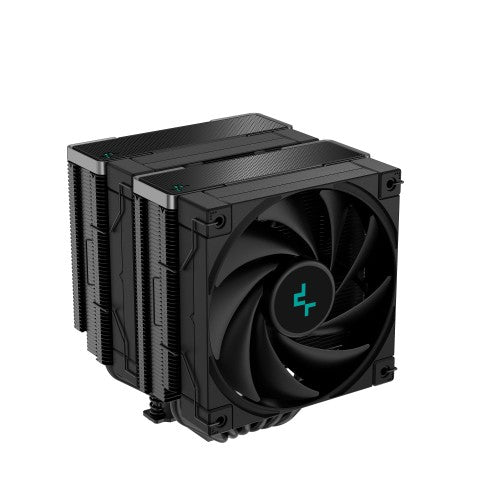

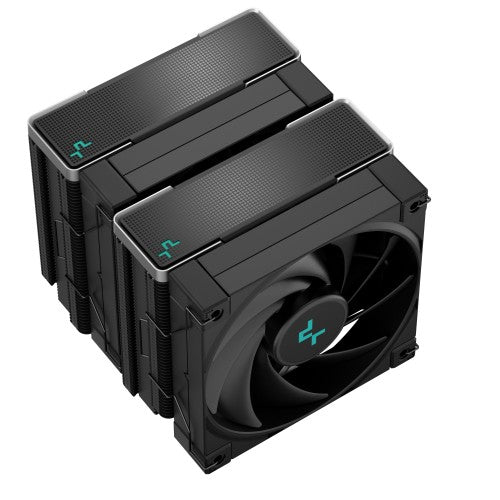

DeepCool AK620 ZERO DARK CPU Cooler | 2x120mm Fan | 1850rpm | 68.99 CFM | PWM | Aluminium Fins | Copper Heatpipes | Intel/AMD

Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155, AMD AM5/AM4, 2x 120 mm, 500 - 1850 RPM, 28 dB(A)

Description

ZERO DARK EDITION
The DeepCool AK620 ZERO DARK is an all-black edition of the dominant AK620 high performance CPU cooler. The same premium quality materials featuring six advanced copper heat pipes, a dense dual-tower heat sink, and two silent FDB fans produces a powerful winning formula for high performance cooling in a ZERO DARK raven design. Dripping in black from head to toe, the AK620 ZERO DARK edition coats every surface in a premium all-black luster for a bold look in any system setup.

UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 ZERO DARK features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET
AND POWERFUL
Two powerful PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

EXCEPTIONAL COOLING BY DESIGN

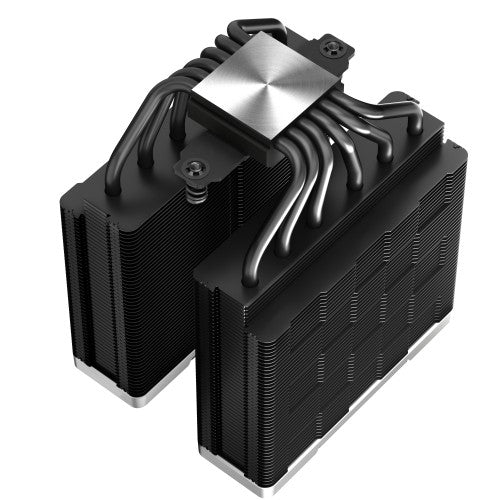

The AK620 ZERO DARK features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.

MULTI-PLATFORM PERFORMANCE
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	500 RPM
Rotational speed (max)	1850 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Thermal Design Power (TDP)	260 W
Noise level (high speed)	28 dB
Number of heat pipes	6
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	68.99 cfm
Maximum air pressure	2.19 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	9
Fan diameter 2	12 cm
Design
Fan connector	4-pin
Number of heat pipes	6
Number of fans	2 fan(s)
Product colour	Black
Number of fan blades	9
Technical details
Thermal Design Power (TDP)	260 W
Noise level (high speed)	28 dB
Number of heat pipes	6
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	68.99 cfm
Maximum air pressure	2.19 mmH2O
Number of fans	2 fan(s)
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Thermal Design Power (TDP)	260 W
Rated current	0.12 A
Fan power consumption	1.44 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Heat pipes diameter	6 mm
Width	129 mm
Depth	138 mm
Height	160 mm
Weight	1.46 kg
Fan 2 dimensions (W x D x H)	120 x 120 x 25 mm
Radiator width	12.7 cm
Radiator depth	11 cm
Radiator height	15.7 cm
Packaging data
Package type	Box
Packaging content
Thermal pad included	Yes
Package type	Box
Mounting kit	Yes
