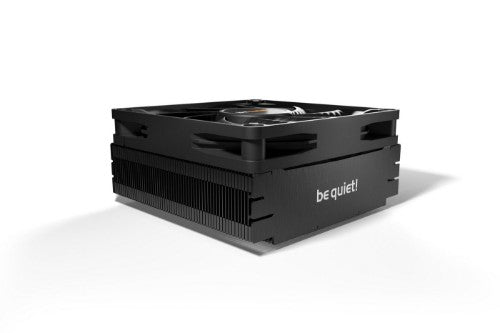

be quiet! Pure Rock LP Motherboard Air cooler 9.2 cm Black 1 pc(s)

100W TDP, (1700 / 1200 / 1150 / 1151 / 1155, AM5 / AM4), 1 fan, CNC machined, 4-pin PWM

Description

EXTREMELY COMPACT DESIGN
Fits into virtually all PC builds

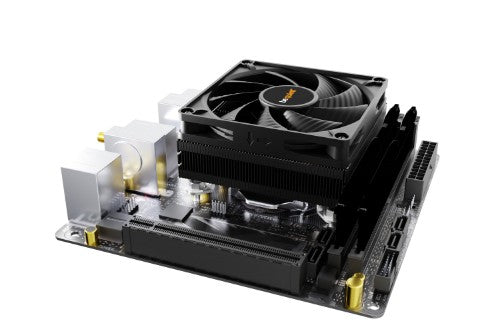

Pure Rock LP has the smallest dimensions of all be quiet! air coolers. With this ultra-compact design and just 45mm height it fits even into the tightest PC builds like Mini-ITX motherboards and small form factor cases.

SOLID COOLING EFFICIENCY
A good choice for compact dimensions
With 100W TDP Pure Rock LP reliably cools HTPCs and small multimedia or gaming systems. 3 high-performance heatpipes take care for no PC build at all to overheat.

QUIET COOLING
Only 30.6dB(A) at maximum fan speed

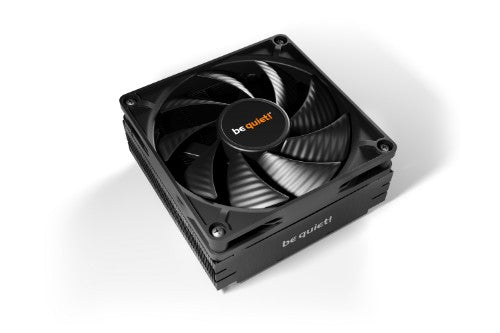

The 15mm thin be quiet! 92mm PWM fan with high-quality rifle bearing facilitates the best balance between cooling performance and silent operation while keeping the cooler as low as possible.

PERFECT CHOICE FOR SMALL FORM FACTOR
Highly convenient design
The space-saving design that allows you easy access to components even in the very tight confines of compact PCs. Pure Rock LP comes out of the box with the full set of installation kits for Intel and AMD consumer chipsets.

Specifications

Performance
Suitable location	Motherboard
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	2500 RPM
Fins material	Aluminium
Bearing type	Rifle bearing
Thermal Design Power (TDP)	100 W
Noise level (low speed)	13.3 dB
Noise level (high speed)	30.6 dB
Type	Air cooler
Fan diameter	9.2 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Quantity per pack	1 pc(s)
Pump connector	4-pin
Fan noise level (min)	13.3 dB
Fan noise level (max)	30.6 dB
Fan bearing technology	Rifle bearing
Design
Fan connector	4-pin
Fins material	Aluminium
Product colour	Black
Cable length	0.26 m

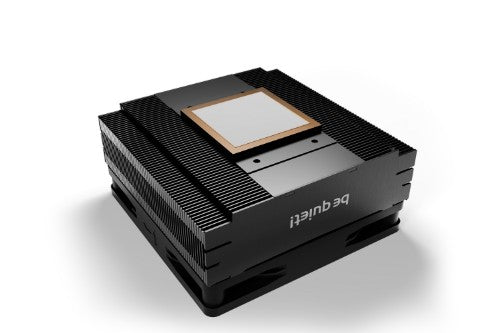

Base plate material	Copper
Technical details
Thermal Design Power (TDP)	100 W
Noise level (low speed)	13.3 dB
Noise level (high speed)	30.6 dB
Type	Air cooler
Fan diameter	9.2 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Cable length	0.26 m
Fan connector	4-pin
Warranty period	3 year(s)
Ports & interfaces
Fan connector	4-pin
Pump connector	4-pin
Power
Rated voltage	12 V
Thermal Design Power (TDP)	100 W
Rated current	0.35 A
Power supply	4.2 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	92 x 92 x 15 mm
Package depth	127 mm
Package width	131 mm
Package height	87 mm
Width	92 mm
Package weight	520 g
Depth	92 mm
Height	45 mm
Weight	358 g
Cable length	0.26 m
Packaging data
Package depth	127 mm
Package width	131 mm
Package height	87 mm
Package weight	520 g

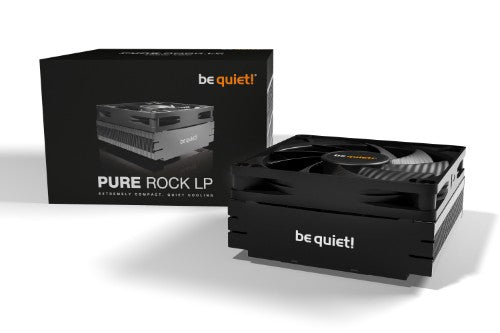

Package type	Box

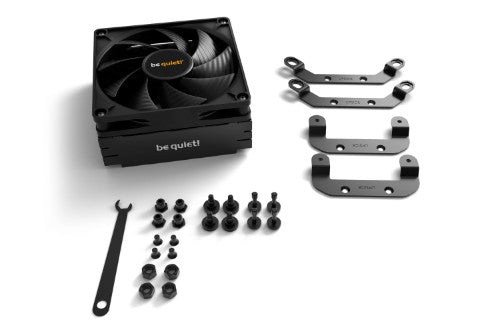

Packaging content
Screws included	Yes
Cables included	4-pin
Package type	Box
Mounting kit	Yes
Other features
Pump connector	4-pin
