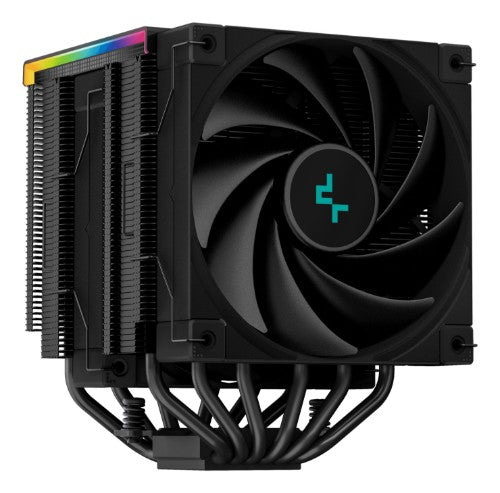

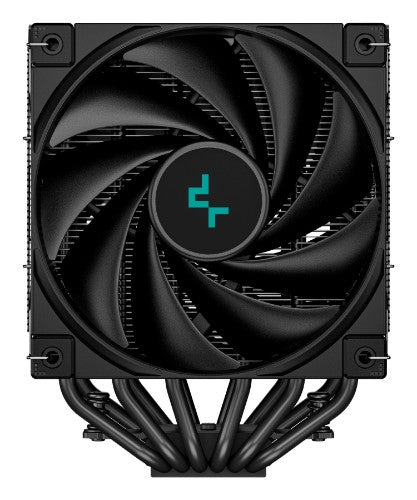

DeepCool AK620 DIGITAL Processor Air cooler 12 cm Black 1 pc(s)

AK620 DIGITAL, LGA2066/2011-v3/2011/1700/1200/1151/1150/1155, AM5/AM4, 4-pin PWM, RGB LED, 1486 g

Description

AK620 DIGITAL
The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK620 DIGITAL. Everything you loved about the AK620 ZERO DARK, but with a sleek low-profile magnetic status display and ARGB LED strips.

AK620 DIGITAL
WELCOME TO THE DIGITAL ERA

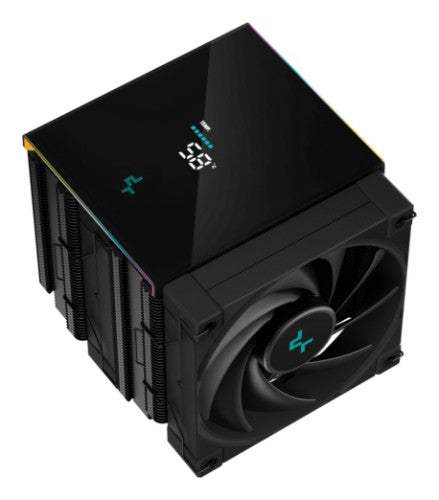

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.

PROVEN AK ZERO DARK DESIGN
An all-black edition of the dominant AK620 high-performance CPU cooler. The same premium quality materials, featuring six advanced copper heat pipes, a pure copper coldplate, a dense dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.

UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 DIGITAL features maximum heat dissipation power and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET, AND POWERFUL
Two powerful PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Number of heat pipes	6
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	68.99 cfm
Maximum air pressure	2.19 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	9
Fan noise level (max)	28 dB
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Fan speed (min)	500 RPM
Fan speed (max)	1850 RPM
Design
Fan connector	4-pin
Number of heat pipes	6
Number of fans	2 fan(s)
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Number of fan blades	9
Radiator material	Aluminum
LED connector type	3-pin
Technical details
Number of heat pipes	6
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	68.99 cfm
Maximum air pressure	2.19 mmH2O
Number of fans	2 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
LED voltage	5 V
Fan power consumption	1.44 W
Fan voltage	12 V
Fan current	0.12 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Heat pipes diameter	6 mm
Width	129 mm
Depth	138 mm
Height	162 mm
Weight	1.49 kg
Radiator width	12.7 cm
Radiator depth	11 cm
Radiator height	15.7 cm
Indication
Illumination colour	Multi
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
CPU bracket(s)	Yes
Other features
LED voltage	5 V
