DeepCool MYSTIQUE 360 Processor All-in-one liquid cooler 12 cm Black 1 pc(s)

Intel/AMD, 2.8" TFT LCD, 3x 120 mm, FDB, 500-2150 RPM, 72.45 CFM, 4.32 mmAq, PWM, ARGB LED, 3400 RPM, 12 VDC, 1847 g

Description

MYSTIQUE 360
The MYSTIQUE series is DeepCool's new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.

MYSTIQUE 360
Visualizing Your Imagination

MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 utilizes built-in gyroscopic sensors.

DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 360 brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).

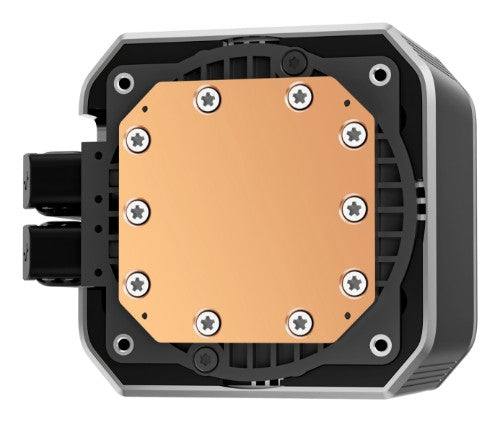

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

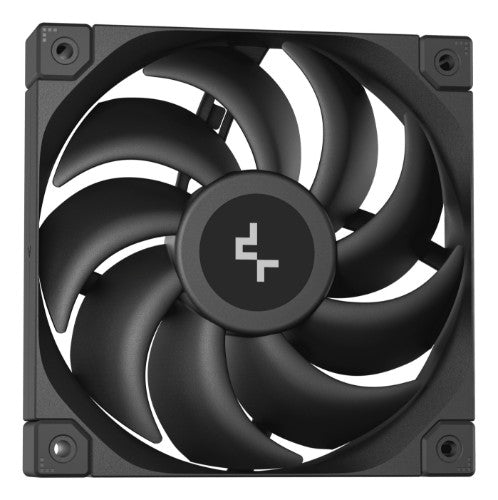

NEW HIGH PERFORMANCE FT12 SE FANS
The MYSTIQUE 360 will include three high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.

ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

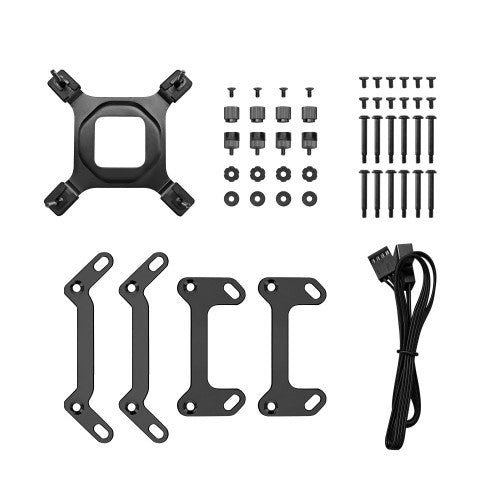

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 to the latest mainstream CPUs is included in the box, so you are ready to go.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	72.45 cfm
Maximum air pressure	4.32 mmH2O
Quantity per pack	1 pc(s)
Pump connector	3-pin
Fan noise level (max)	36.49 dB
Pump noise level	21 dB
Pump motor speed	3400 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2150 RPM
Design
Fan connector	4-pin
Product colour	Black
Radiator material	Aluminum
Display type	TFT-LCD
LED connector type	3-pin
Technical details
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	72.45 cfm
Maximum air pressure	4.32 mmH2O
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Pump connector	3-pin
Power
LED voltage	5 V
Fan power consumption	3.6 W
Pump power consumption	4.2 W
Pump voltage	12 V
Pump current	350 mA
Fan voltage	12 V
Fan current	0.3 A
LED power consumption (pump)	2.45 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	1.85 kg
Radiator width	12 cm
Radiator depth	40.2 cm
Radiator height	2.7 cm
Tube length	41 cm
Pump width	7.7 cm
Pump depth	9.3 cm
Pump height	6.6 cm
Other features
Built-in display	Yes
Pump connector	3-pin
LED voltage	5 V
