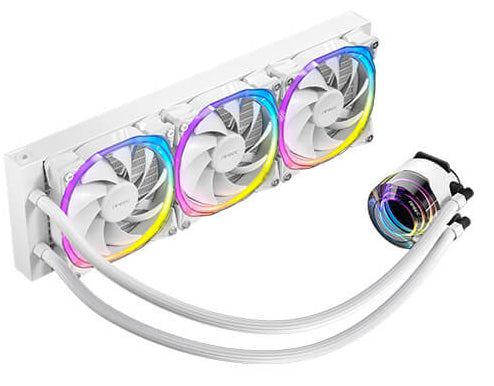

Antec VORTEX 360 Processor Liquid cooling kit 12 cm White 1 pc(s)

VORTEX 360 WHITE

Description

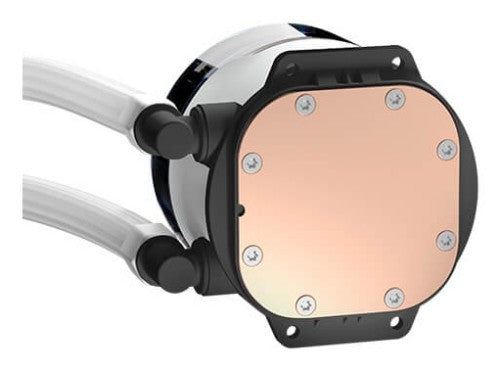

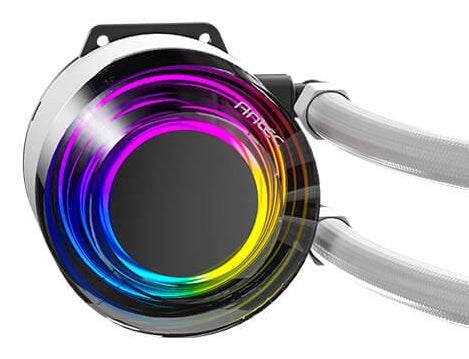

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

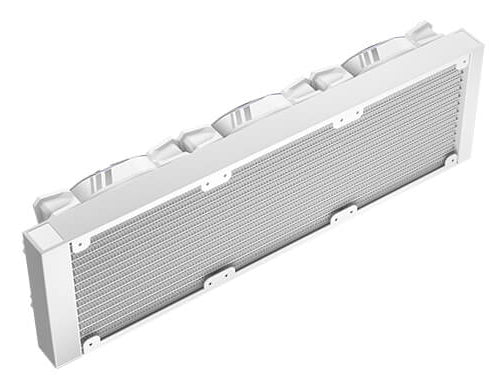

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Bearing type	Hydraulic
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4
Maximum airflow	57.93 cfm
Maximum air pressure	2.11 mmH2O
Quantity per pack	1 pc(s)
Pump connector	3-pin
Fan noise level (max)	31.24 dB
Pump noise level	28 dB
Pump motor speed	2800 RPM
Fan speed (min)	600 RPM
Fan speed (max)	2000 RPM
Pump's mean time to failure (MTTF)	40000 h
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	4-pin
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Radiator material	Aluminum
LED connector type	3-pin
Technical details
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4
Maximum airflow	57.93 cfm
Maximum air pressure	2.11 mmH2O
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Pump connector	3-pin
Power
LED voltage	5 V
Pump power consumption	3 W
Pump voltage	5 - 12 V
Pump current	0.25 mA
Fan voltage	12 V
Fan current	0.21 A
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 120 mm
Radiator width	39.7 cm
Radiator depth	2.7 cm
Radiator height	12 cm
Pump width	6.7 cm
Pump depth	4.85 cm
Pump height	6.7 cm
Indication
Illumination colour	Multi
Other features
Pump connector	3-pin
LED voltage	5 V
