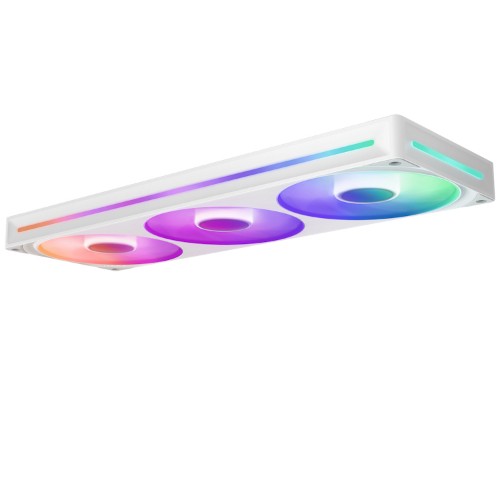

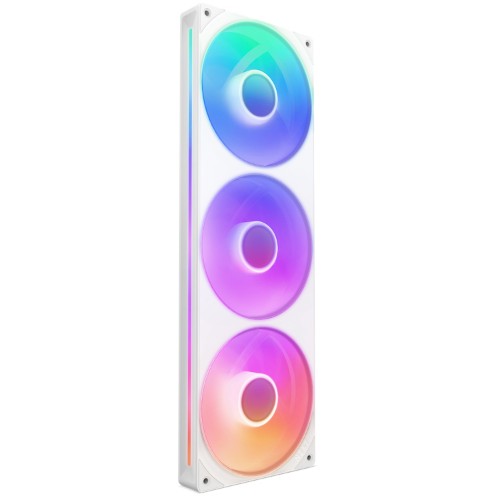

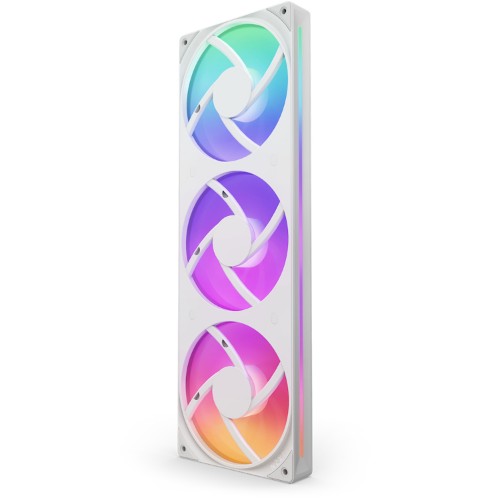

NZXT RF-U36HF-W1 computer cooling system Computer case Fan 36 cm White

360mm Single-Frame RGB Fan Unit, 500 - 2.400 ± 250 RPM, 360x120x26mm

Key Features

• Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans
• Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable
• Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust
• Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan
• Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals
• PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise
• Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed
• Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately)

Description

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.

Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)

Silent Operation
Anti-vibration rubber corners daampen noise and Zero RPM Mode* shuts fans off during light loads.
*Requires an NZXT controller or NZXT motherboard, each sold separately.

Specifications

Performance
Suitable location	Computer case
Fan connector	8-pin
Rotational speed (min)	500 RPM
Rotational speed (max)	2400 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	36 cm
Maximum air pressure	3.3 mmH2O
Airflow	75.12 m³/h
Fan noise level (max)	30 dB
Design
Fan connector	8-pin
Material	Plastic, Rubber
Illumination colour	Multi
Product colour	White
Cable length	0.6 m
Illumination LED	Yes
Number of LEDs	8
Technical details
Type	Fan
Fan diameter	36 cm
Maximum air pressure	3.3 mmH2O
Airflow	75.12 m³/h
Material	Plastic, Rubber
Cable length	0.6 m
Fan connector	8-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	8-pin
Colour
Product colour	White
Weight & dimensions
Width	120 mm
Depth	26 mm
Height	360 mm
Cable length	0.6 m
Indication
Illumination colour	Multi
