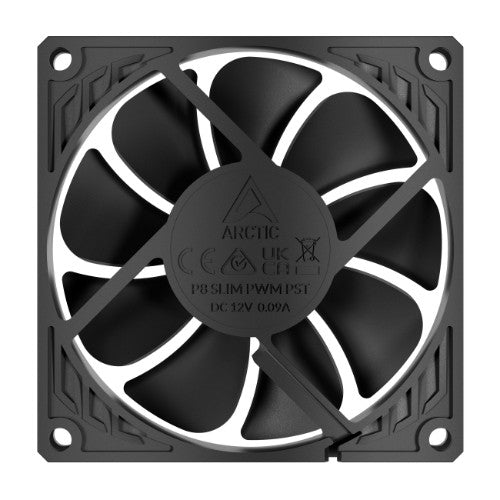

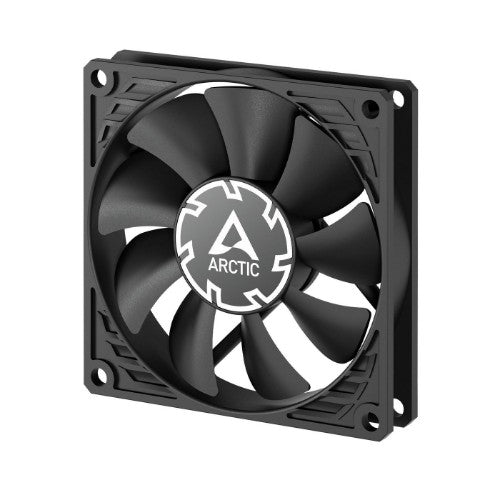

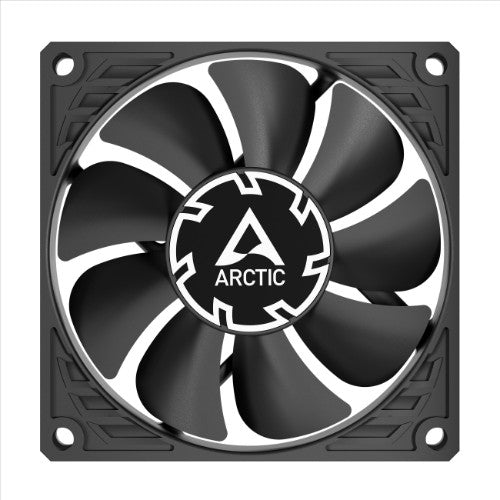

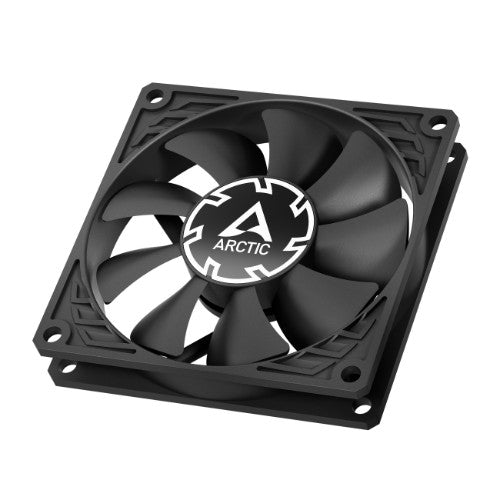

ARCTIC P8 Slim PWM PST - 80 mm Low-Profile PWM Fan with Cable Splitter

80 mm, PWM, 300-3000 RPM, FDB, 22.5 cfm, 38.23 m³/h, 2.35 mmH2O, 12 VDC, 45 g

Reasons To Buy

Optimal for HTPC, SBC and Slim Systems

Thanks to its low installation height of 15 mm and highly energy-efficient operation, the P8 Slim PWM PST is suitable for use in small PCs such as single-board computers and the entire SFF range.

300 to 3000 rpm Controlled via PWM PST

With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.

Ideal for Small Spaces

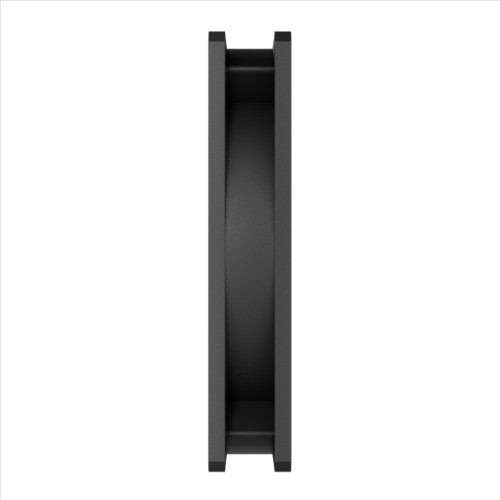

Unlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds.

Optimised for High Static Pressure

Because the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

Maximum Smoothness, Minimum Vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

High-Quality Sleeve Bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

Improved Service Life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Description

As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	8 cm
Maximum airflow	22.5 cfm
Airflow	38.23 m³/h
Quantity per pack	1 pc(s)
Fan static pressure	2.35 mmH2O
Fan speed (min)	300 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	4-pin + 4-pin
Product colour	Black
Cable length	0.48 m
Technical details
Type	Fan
Fan diameter	8 cm
Maximum airflow	22.5 cfm
Airflow	38.23 m³/h
Cable length	0.48 m
Fan connector	4-pin + 4-pin
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Starting voltage	6.9 V
Fan voltage	12 V
Fan current	0.095 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	80 x 80 x 15 mm
Package depth	89 mm
Package width	83 mm
Package height	17 mm
Fan weight	45 g
Package weight	67 g
Cable length	0.48 m
Packaging data
Package depth	89 mm
Package width	83 mm
Package height	17 mm
Package weight	67 g
Package type	Hanging box
Packaging content
Package type	Hanging box
Other features
Country of origin	Hong Kong
