DeepCool MYSTIQUE 240 ARGB Processor All-in-one liquid cooler 12 cm Black 1 pc(s)

600 - 2400 RPM, 72.04 CFM, 3.48 mmAq, PWM, ARGB LED, 3400 RPM, 282 x 120 x 27 mm. 1543 g

Description

The MYSTIQUE 240 ARGB is DeepCool's latest addition to the flagship line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The MYSTIQUE ARGB line has been outfitted with a new set of vivid ARGB fans.

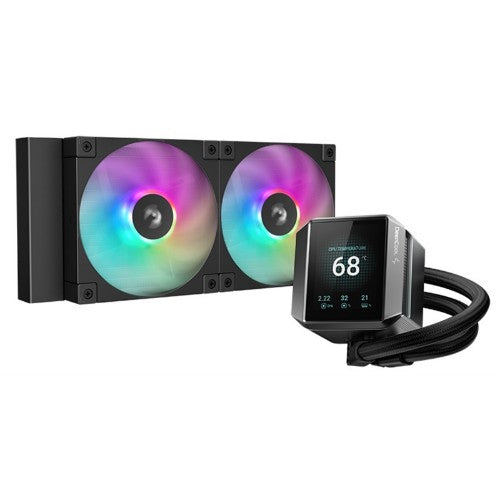

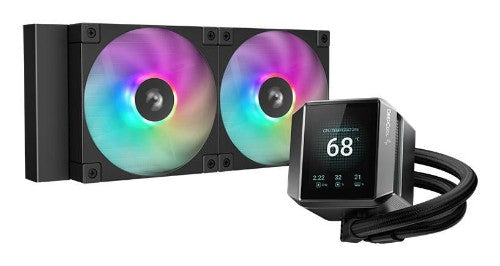

MYSTIQUE 240 ARGB
Visualizing Your Illuminated Imagination

The MYSTIQUE series is DeepCool's new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.

MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 240 ARGB utilizes built-in gyroscopic sensors.

DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

5TH GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 240 ARGB brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).

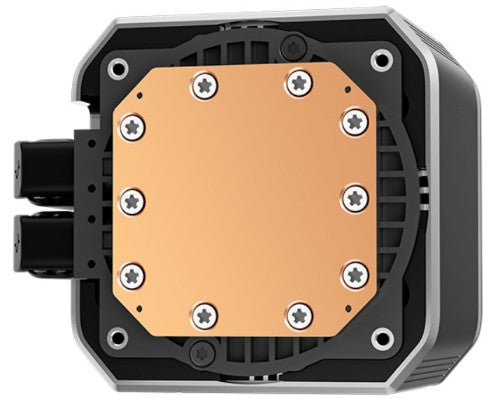

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 240 ARGB gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

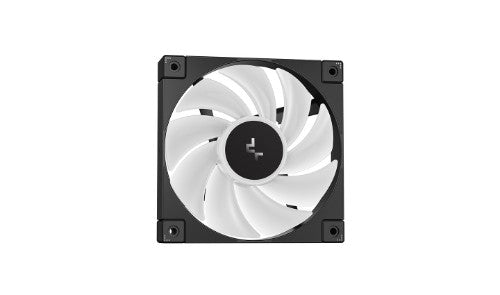

NEW HIGH PERFORMANCE FT12 SE FANS
The MYSTIQUE 240 ARGB will include two high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.

ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 240 ARGB to the latest mainstream CPUs is included in the box, so you are ready to go.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	500 RPM
Rotational speed (max)	2400 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Fan thickness	2.5 cm
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Minimum airflow (imperial)	72.04 cfm
Maximum air pressure	3.48 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Pump connector	3-pin
Pump motor speed	3400 RPM
Fan speed (min)	600 RPM
Fan speed (max)	2400 RPM
Design
Fan connector	4-pin
Number of fans	2 fan(s)
Material	Aluminium
Product colour	Black
Illumination LED	Yes
Display type	LCD
LED connector type	3-pin
Technical details
Fan thickness	2.5 cm
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Minimum airflow (imperial)	72.04 cfm
Maximum air pressure	3.48 mmH2O
Number of fans	2 fan(s)
Material	Aluminium
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Pump connector	3-pin
Power
LED voltage	5 V
Fan power consumption	2.64 W
Pump power consumption	4.2 W
Pump voltage	12 V
Pump current	350 mA
Fan current	0.3 A
LED power consumption (pump)	2.45 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Fan thickness	2.5 cm
Weight	1.54 kg
Radiator width	12 cm
Radiator depth	28.2 cm
Radiator height	2.7 cm
Pump width	7.7 cm
Pump depth	9.3 cm
Pump height	6.6 cm
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
CPU bracket(s)	Yes
Other features
Pump connector	3-pin
LED voltage	5 V
