DeepCool AG400 BK ARGB V2 Chipset Fan 12 cm Black 1 pc(s)

Ø6 mm×4 pcs, 500 - 2100 RPM±10%, 75.89 CFM, 2.53 mmAq, 120 × 120 × 25 mm

Description

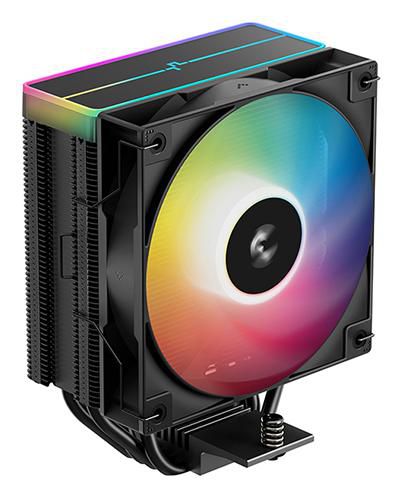

The DeepCool AG400 BK ARGB V2 is an all-black single-tower CPU cooler focused on high performance efficiency boasting four heat pipes packed in the dense heat sink tower for optimal heat dissipation and paired with a fine-tuned 120mm ARGB PWM fan for powerful cooling.

BRILLIANCE IN DESIGN

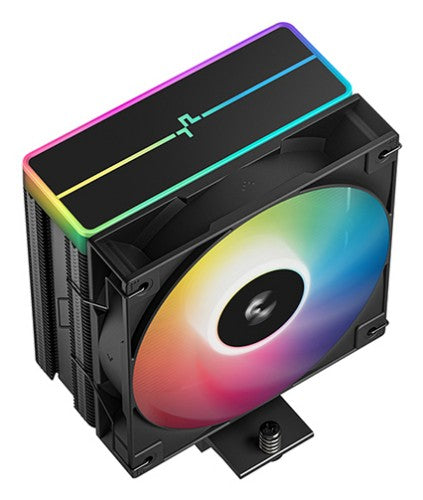

DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. Paired with a unique ARGB top cover and a minimalist translucent logo design, AG400 BK ARGB V2 provides an unprecedented and unique lighting effect.

BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY

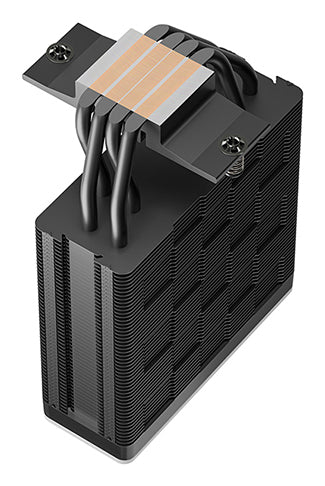

By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

BRIGHT, QUIET, AND CAPABLE

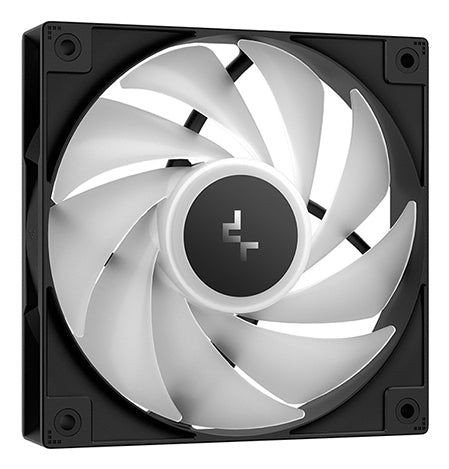

Get the best of both worlds with a fine-tuned 120mm ARGB PWM fan designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.

SIMPLE AND SECURE INSTALLATION

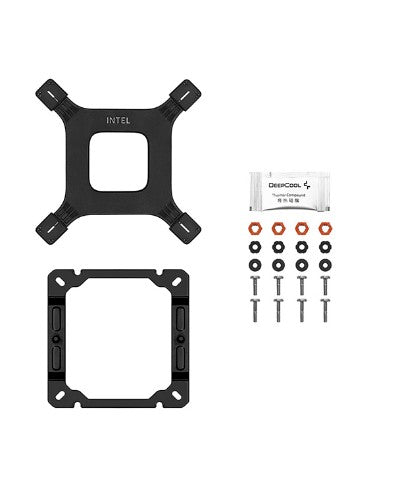

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Specifications

Performance
Suitable location	Chipset
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Hydraulic
Number of heat pipes	4
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	75.89 cfm
Maximum air pressure	2.53 mmH2O
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Fan noise level (max)	31.6 dB
Fan speed (min)	450 RPM
Fan speed (max)	2200 RPM
Design
Fan connector	4-pin
Number of heat pipes	4
Number of fans	1 fan(s)
Illumination colour	Blue, Green, Red
Product colour	Black
Illumination LED	Yes
LED connector type	3-pin
Technical details
Number of heat pipes	4
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	75.89 cfm
Maximum air pressure	2.53 mmH2O
Number of fans	1 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
LED voltage	5 V
Fan power consumption	2.04 W
Fan voltage	12 V
Fan current	0.17 A
LED power consumption (fan)	3.2 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Width	92 mm
Depth	125 mm
Height	154 mm
Indication
Illumination colour	Blue, Green, Red
Other features
LED voltage	5 V
