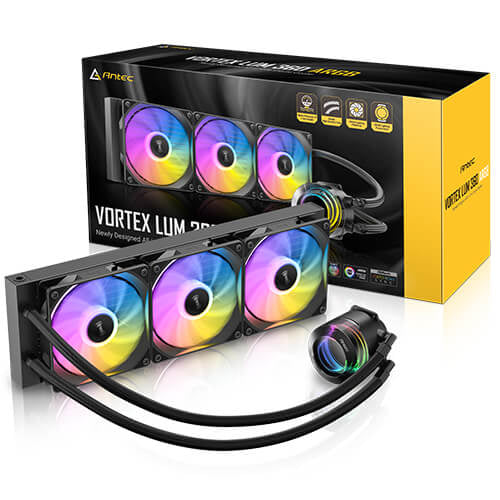

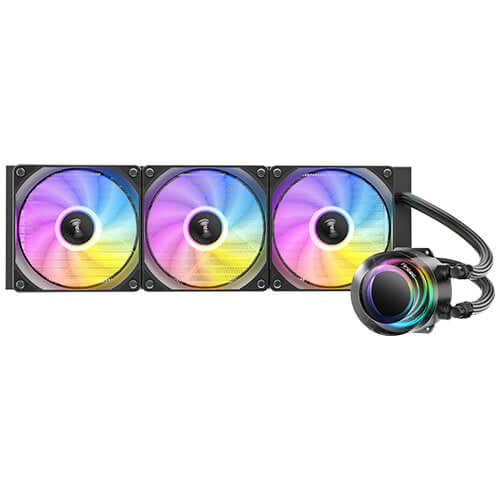

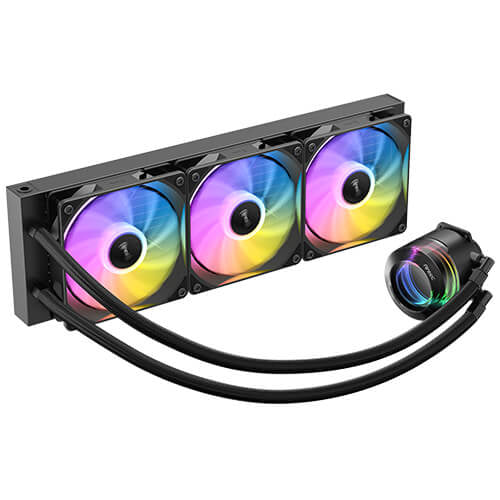

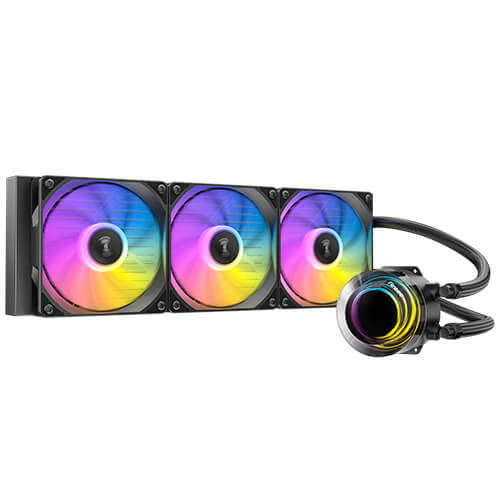

Antec Vortex Lum 360 ARGB Processor Liquid cooling kit 12 cm Black

Intel/AMD, 280 W TDP, 3x 120 mm, 1800 RPM, ARGB, DC 12 V, 397 x 120 x 27 mm

Description

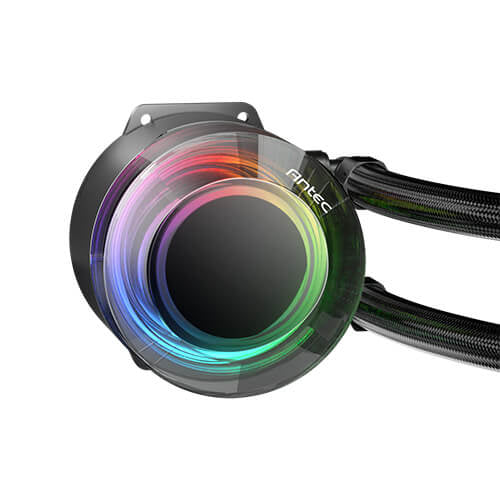

Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump

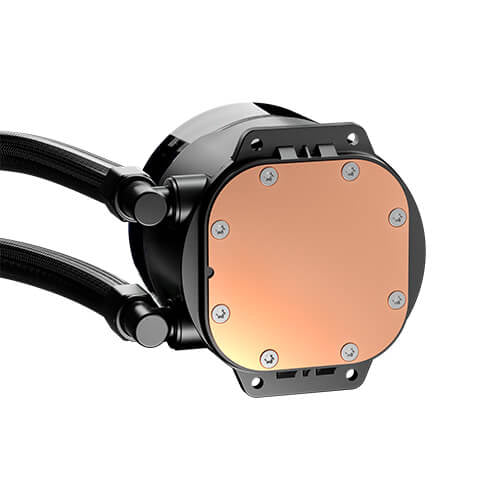

Massive Copper Base Plate
Provides highly efficient cooling at all loads.

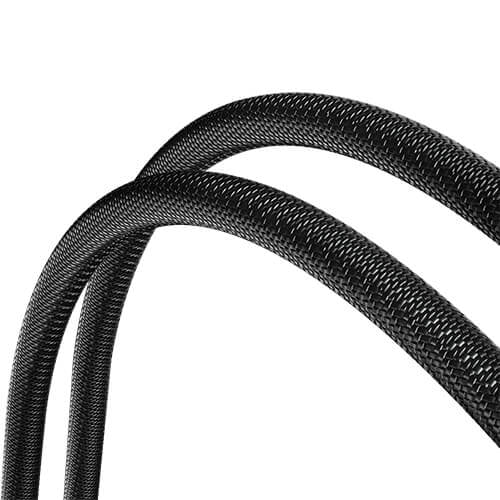

EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.

Extreme Cooling Performance
800±200~1800±10% RPM

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

CPU Socket Compatibility
Intel compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD compatibility : AM3 / AM4 / AM5 / TR4

Specifications

Performance
Suitable location	Processor
Fan connector	3-pin + 4-pin
Number of fins	13
Bearing type	Hydraulic
Thermal Design Power (TDP)	280 W
Type	Liquid cooling kit
Operating temperature (T-T)	-10 - 60 °C
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4
Maximum airflow	71.5 cfm
Maximum air pressure	2.45 mmH2O
Number of fans	2 fan(s)
Pump connector	3-pin
Fan 2 rotational speed (min)	800 RPM
Fan 2 rotational speed (max)	1800 RPM
Fan noise level (max)	31 dB
Pump noise level	28 dB
Pump motor speed	2800 RPM
Fan speed (min)	800 RPM
Fan speed (max)	1800 RPM
Pump's mean time to failure (MTTF)	40000 h
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	3-pin + 4-pin
Number of fins	13
Number of fans	2 fan(s)
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Technical details
Thermal Design Power (TDP)	280 W
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4
Maximum airflow	71.5 cfm
Maximum air pressure	2.45 mmH2O
Number of fans	2 fan(s)
Fan connector	3-pin + 4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	3-pin + 4-pin
Pump connector	3-pin
Power
Rated voltage	12 V
Thermal Design Power (TDP)	280 W
Fan rated voltage	10.8 - 13.2 V
Pump power consumption	3 W
Pump voltage	12 V
Pump current	250 mA
Fan current	0.25 A
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 25 x 120 mm
Fan 2 dimensions (W x D x H)	120 x 25 x 120 mm
Radiator width	12 cm
Radiator depth	39.7 cm
Radiator height	2.7 cm
Pump width	6.7 cm
Pump depth	6.7 cm
Pump height	4.85 cm
Indication
Illumination colour	Multi
Packaging data
Package type	Box

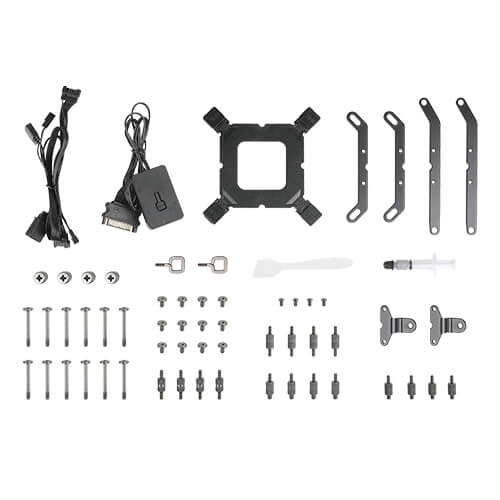

Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
CPU socket spacer(s)	Yes
CPU bracket(s)	Yes
Other features
Fan rated voltage	10.8 - 13.2 V
Pump connector	3-pin
