DeepCool FT12 Computer case Fan 12 cm Black 1 pc(s)

120 mm, 500-2150 RPM, FDB, 75 CFM, 4.2 mmAq, ≤32 dB(A), 4-pin PWM, 12 VDC, 188 g, Black

Description

FT12
The FT12 white fans were meticulously designed by the DeepCool team to provide low-noise, high-performance cooling solutions with excellent durability.

FT12
POWERFUL, QUIET, AND DURABLE

ENGINEERING PERFECTION
Each FT12 120mm fan features a powerful 3-phase, 10-pole, 12-slot FOC closed-loop control motor with high-quality MQ magnets. A design combination rarely found in case fans that minimizes vibrations by reducing the force produced between wide gaps between poles and slots.

QUALITY YOU CAN SEE
Don't just believe the marketing pitch; each FT12 fan has a transparent window that showcases the high-quality engineering of the fan motor while putting the true Fluid Dynamic Bearing on display. Subtle white LEDs are positioned behind the bearing to highlight every detail and can be turned off with a quick flick of a tiny switch in the rear of the fan hub frame.

ENHANCED MATERIALS
By utilizing an enhanced composite material made up of a fine mix of fiberglass and PBT, the fan blades and frame are extremely consistent, which also reduces the overall sound profile.

IMPRESSIVE IN MANY ASPECTS
All of the research and development results in an impressive performance fan package that focuses on outstanding airflow, concentrated static pressure, and relatively quiet operation.

REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

OUTSTANDING COVERAGE
DeepCool is so confident in the design of the FT series of fans that we provide five full years of limited warranty coverage.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	12 cm
Maximum airflow	75 cfm
Maximum air pressure	4.2 mmH2O
Quantity per pack	1 pc(s)
Number of fan blades	9
Fan noise level (max)	32 dB
Fan speed (min)	500 RPM
Fan speed (max)	2150 RPM
Design
Fan connector	4-pin
Illumination colour	White
Product colour	Black
Illumination LED	Yes
Number of LEDs	1
Number of fan blades	9
Technical details
Type	Fan
Fan diameter	12 cm
Maximum airflow	75 cfm
Maximum air pressure	4.2 mmH2O
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
Fan voltage	12 V
Fan current	0.3 A
LED power consumption (fan)	3.6 W
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Fan weight	188 g
Indication
Illumination colour	White
Packaging data
Package type	Hanging box
Packaging content

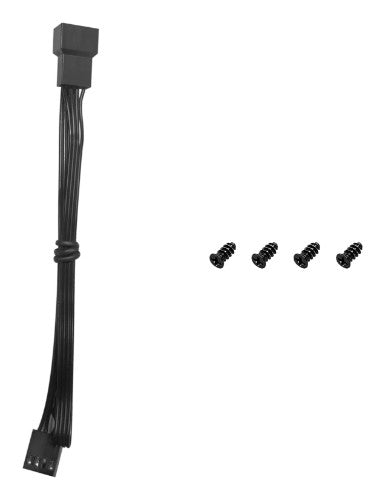

Screws included	Yes
Cables included	4-pin
Number of screws	4
Package type	Hanging box
