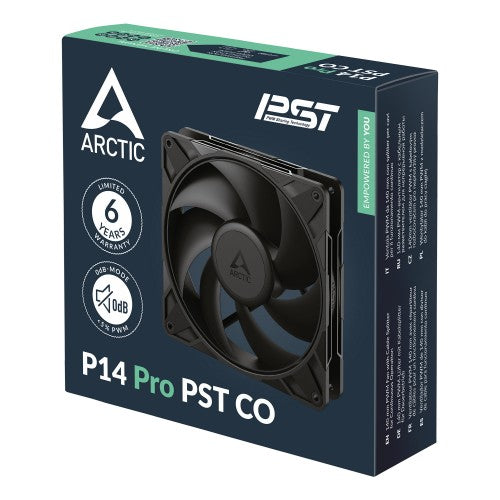

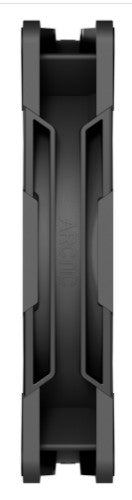

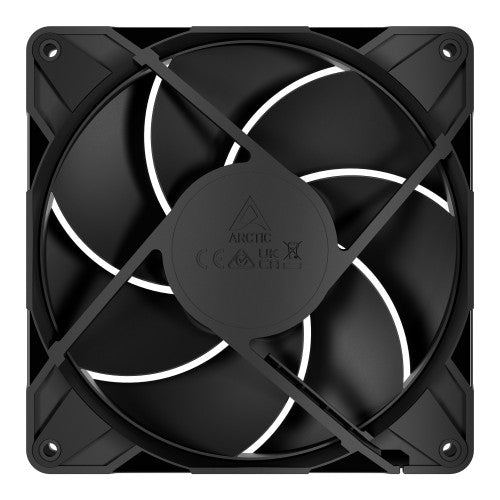

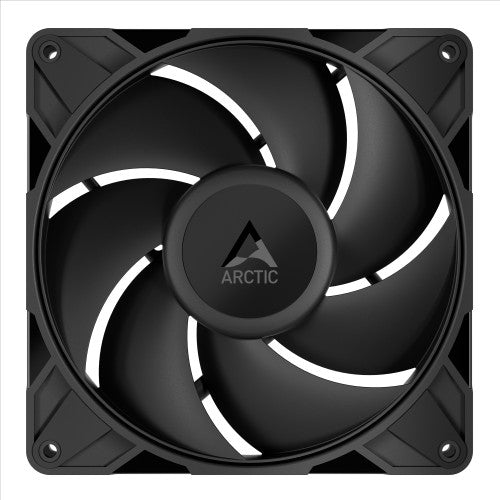

ARCTIC P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation

P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation

Reasons To Buy

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (DBB)

A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.

Automated Two-Plane Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

Description

P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation

• Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM
• Airflow:1107 cfm | 186 m3/h
• Static Pressure: 5.2 mmH2O
• Fan Bearing: Dual Ball Bearing
• Cable Length: 400 mm + 80 mm Daisy-Chain Cable
• Connector: 4-Pin Fan Plug + 4-Pin Socket

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	400 RPM
Rotational speed (max)	2500 RPM
Bearing type	Dual ball bearing
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	14 cm
Maximum airflow	110 cfm
Maximum air pressure	5.2 mmH2O
Airflow	186 m³/h
Quantity per pack	1 pc(s)
Design
Fan connector	4-pin + 4-pin
Product colour	Black
Cable length	0.48 m
Technical details
Type	Fan
Fan diameter	14 cm
Maximum airflow	110 cfm
Maximum air pressure	5.2 mmH2O
Airflow	186 m³/h
Cable length	0.48 m
Fan connector	4-pin + 4-pin
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Rated voltage	12 V
Starting voltage	5 V
Rated current	0.35 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 27 mm
Package depth	145 mm
Package width	145 mm
Package height	32 mm
Fan weight	242 g
Package weight	294 g
Cable length	0.48 m
Packaging data
Package depth	145 mm
Package width	145 mm
Package height	32 mm
Package weight	294 g
Packaging content
Screws included	Yes
Number of screws	4
