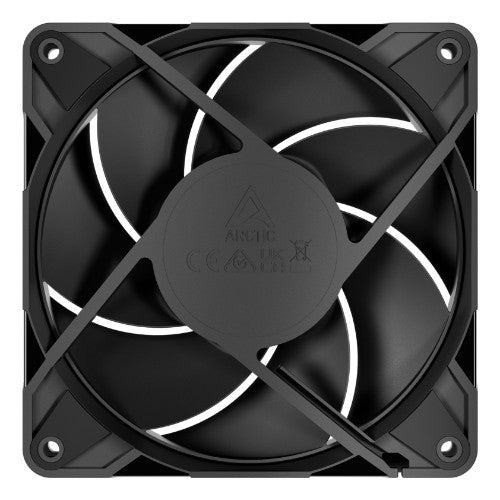

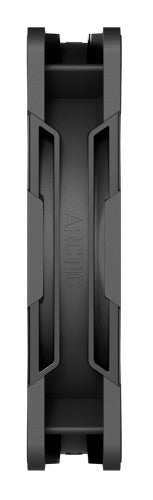

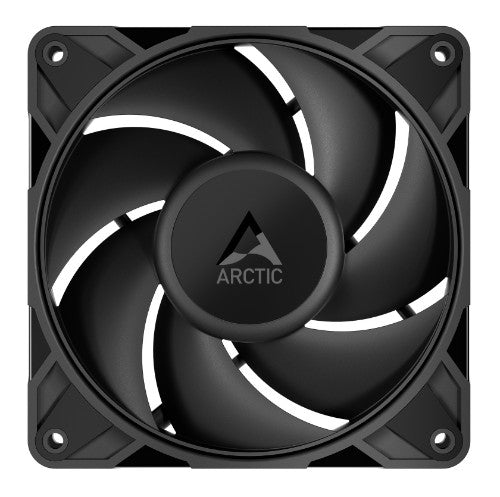

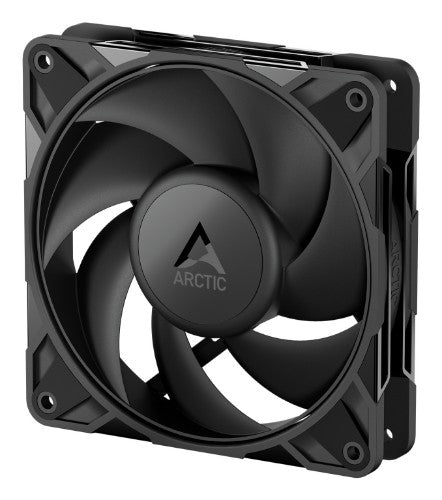

ARCTIC Freezer P12 Pro PST CO - 120 mm PWM Fan with Cable Splitter for Continuous Operation

120 mm, 600-3000 RPM, PWM, DBB, 77 CFM, 131 m3/h, 12 V DC, 4-pin, 185 g, Black

Reasons To Buy

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (DBB)

A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.

Automated Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Description

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Dual ball bearing
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	12 cm
Maximum airflow	77 cfm
Airflow	131 m³/h
Quantity per pack	1 pc(s)
Number of fan blades	7
Fan static pressure	6.9 mmH2O
Fan speed (min)	600 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	4-pin + 4-pin
Product colour	Black
Cable length	0.4 m
Number of fan blades	7
Technical details
Type	Fan
Fan diameter	12 cm
Maximum airflow	77 cfm
Airflow	131 m³/h
Cable length	0.4 m
Fan connector	4-pin + 4-pin
Warranty period	6 year(s)
Ports & interfaces
Fan connector	4-pin + 4-pin
Power
Starting voltage	3.3 V
Fan voltage	12 V
Fan current	0.33 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	127 mm
Package width	125 mm
Package height	30 mm
Fan weight	185 g
Package weight	226 g
Cable length	0.4 m
Packaging data
Package depth	127 mm
Package width	125 mm
Package height	30 mm
Package weight	226 g
Package type	Box
Packaging content
Screws included	Yes
Package type	Box
