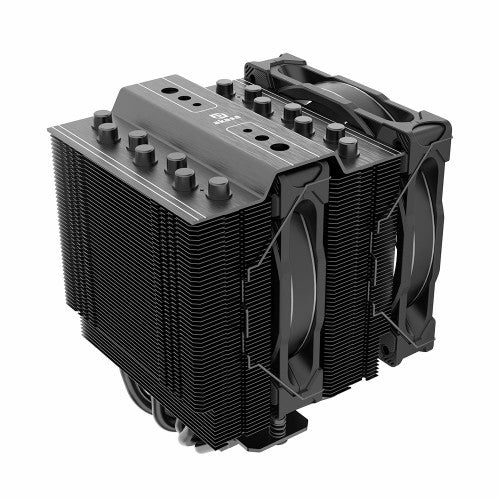

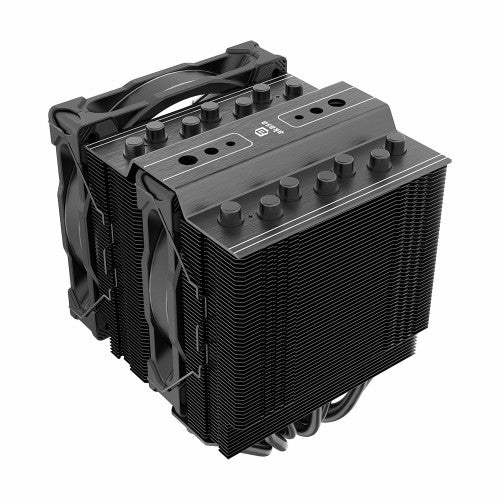

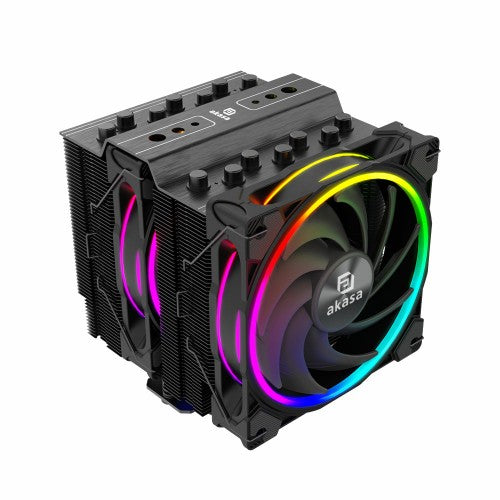

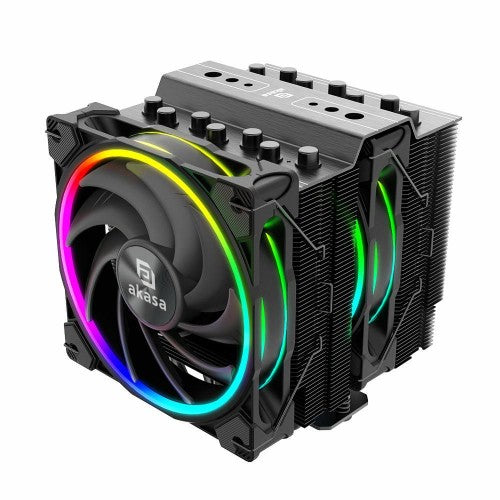

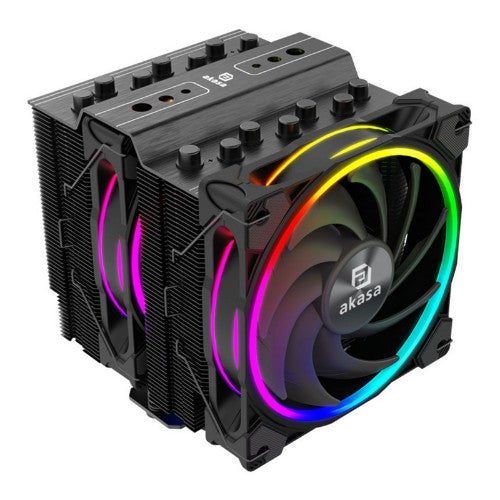

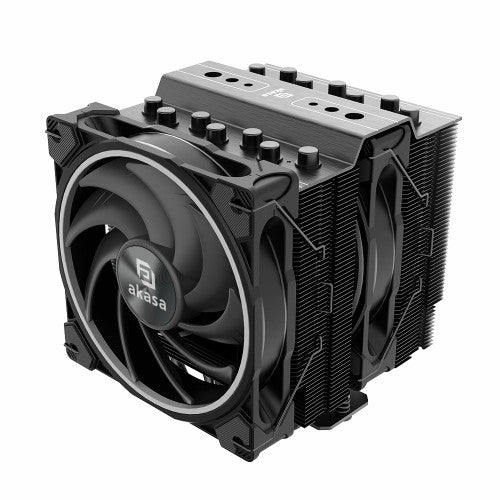

Akasa SOHO H7 Processor Air cooler 12 cm Black 1 pc(s)

120 x 120 x 25 mm, 500 - 2000 RPM, DC 12V, 0.13A, 136.8 x 120 x 158 mm, 1192.8g, Black

Key Features

• Dual heatsink and vibrant aRGB fan operation
• 7 copper heatpipes and base for efficient heat dissipation
• Secure and easy mounting
• Designed for the latest Intel® LGA1700 & AMD AM5
• Supporting CPU's with thermal design of up to 250W TDP

Description

Premium Dual Tower 7-Heatpipe CPU Cooler with Addressable RGB

Ultra hi-performance premium CPU cooler fitted with dual full aRGB, intelligent PWM speed control 120mm fan and 7 copper pipes. Designed for CPUs with a maximum TDP of 250W.

Dual Heatsink and Fan Operation
Doubled surface area allows for superior thermal dissipation, resulting in optimal cooling of the CPU, aided by the additional airflow from the second fan.

Crucial Design for Hi-End Cooling Efficiency
The 7 high performing copper heatpipes and base with Direct Touch Technology (DTT) for hi-efficient heat conductance and transfer. Ensuring cooling efficiency is at the forefront of the CPU cooling design and the cooler is able to support CPU's up to 250W TDP.

Designed for the Latest Sockets
Increased contact surface area to support the latest Intel® LGA1700 and AMD AM5 sockets, and corresponding processors which are larger in size or density.

Elevated Aesthetics
Experience a variety of visual possibilities with over 16.8 million colour combinations for total customisable pulsating aRGB lighting. Unique premium aluminium top cover design helps give a distinct look to your desktop.

Maximum Reliability in Cooling Performance
Intelligent PWM synced speed control ensures that the fan cools your system efficiently, staying quiet under lower loads and performing effectively otherwise. Superior rotor design with hydro dynamic bearing for improved lubrication, reducing fan noise and extending fan life up to 40,000 hours.

Sleek Black Fins
High density design for maximum thermal distribution to ensure CPU has superb cooling. Electro-painted in black for corrosion resistance and sleek aesthetics

Easy Installation and Wide Compatibility
Mounting kit offers easy and secure installation for a wide range of Intel® and AMD motherboards.

Memory Compatibility
Speacially designed heatsinks with cutouts, for maximum RAM compatibility including mini-ITX motherboards.

Motherboard Sync
Motherboard sync certified by popular RGB software including Asus®, ASRock®, Gigabyte™ RGB Fusion, MSI® and Razer Chroma™.

Included Ultra-Performance Thermal Paste
T5 Pro-Grade Plus thermal paste is included with hybrid silicone and nano-diamond particles for ultra-performance. Outperforming other top selling ultra-performance competitor thermal pastes.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Bearing type	Ceramic bearing
Thermal Design Power (TDP)	250 W
Noise level (low speed)	14.2 dB
Noise level (high speed)	31.8 dB
Number of heat pipes	7
Fan thickness	2.5 cm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	52.91 cfm
Maximum air pressure	1.75 mmH2O
Quantity per pack	1 pc(s)
Number of fan blades	9
Fan diameter 2	12 cm
Fan 2 rotational speed (min)	500 RPM
Fan 2 rotational speed (max)	2000 RPM
Fan 2 noise level (low speed)	14.2 dB
Fan 2 noise level (high speed)	31.8 dB
Fan 2 maximum airflow	52.91 cfm
Fan 2 maximum air pressure	1.75 mmH2O
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	4-pin
Number of heat pipes	7
Material	Aluminium, Copper, Plastic
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Number of fan blades	9
Radiator material	Aluminum
LED connector type	3-pin
Technical details
Thermal Design Power (TDP)	250 W
Noise level (low speed)	14.2 dB
Noise level (high speed)	31.8 dB
Number of heat pipes	7
Fan thickness	2.5 cm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	52.91 cfm
Maximum air pressure	1.75 mmH2O
Material	Aluminium, Copper, Plastic
Fan connector	4-pin
Illumination LED	Yes
Warranty period	2 year(s)
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Thermal Design Power (TDP)	250 W
Rated current	0.13 A
LED voltage	0.5 V
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Fan thickness	2.5 cm
Weight	1.19 kg
Fan 2 dimensions (W x D x H)	120 x 120 x 25 mm
Radiator width	13.7 cm
Radiator depth	12 cm
Radiator height	15.8 cm
Indication
Illumination colour	Multi
Packaging content
Screws included	Yes
Mounting kit	Yes
Installation instruction	Yes
CPU bracket(s)	Yes
Other features
LED voltage	0.5 V
