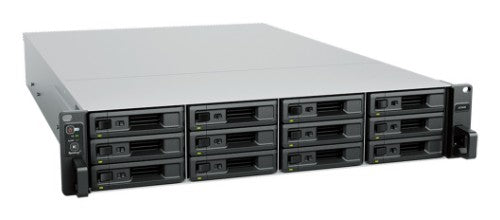

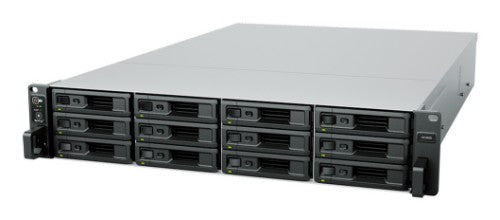

Synology UC3400 NAS/storage server Rack (2U) Intel® Xeon® D D-1541 8 GB DDR4 0 TB

12-Bay 3.5", 2x GbE/1x 10GbE, Intel Xeon D-1541, 8GB RAM, RPSU, 2U

Description

Reliability and High Availability
Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.

Active-Active SAN with enterprise-class performance
Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS, it supports a wide range of demanding workloads.

Virtualization-ready
Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments

Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations

OpenStack® Cinder support enables UC3400 to become a block-based storage component

Flexible network options
Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.

Built-in data protection and security
Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.

Storage expansion
Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.

Performance backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems.

Specifications

Storage
Total installed storage capacity	0 TB
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive capacity	0 GB
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	BTRFS, ext4
RAID levels	0, 1, 5, 10, JBOD
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	Intel
Processor cache	12 MB
Processor boost frequency	2.7 GHz
CPU configuration (max)	1
Processor frequency	2.1 GHz
Processor family	Intel® Xeon® D
Processor model	D-1541
Processor cores	8
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	64 GB
Network
Link aggregation	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	3
Hard drive
RAID support	Yes
Supported file systems	BTRFS, ext4
RAID levels	0, 1, 5, 10, JBOD
Design
Cooling type	Active
Fan diameter	6 cm
Number of fans	2 fan(s)
Chassis type	Rack (2U)
Technical details
Type	NAS
Backup function	Yes
Chassis type	Rack (2U)
Number of fans	2 fan(s)
Performance
Type	NAS
Backup function	Yes
Reset button	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	6 cm
Number of fans	2 fan(s)
Security
Access Control List (ACL)	Yes
Management features
Reset button	Yes
Power
Power supply unit (PSU) capacity	500 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Weight & dimensions
Width	482 mm
Depth	724 mm
Height	88 mm
Weight	19.7 kg
Processor special features
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95%
