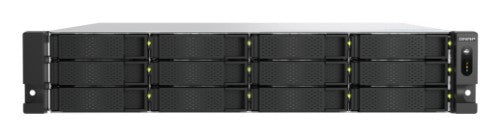

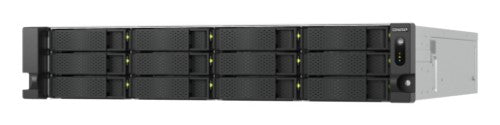

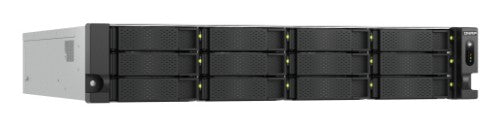

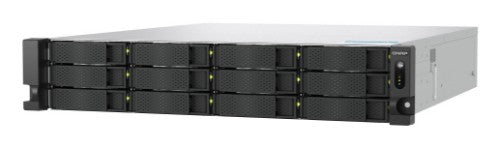

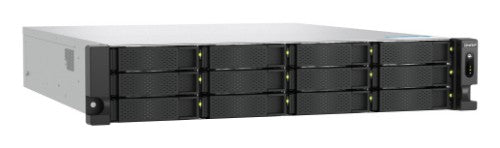

QNAP TS-h1277AXU-RP-R7-32G 32GB RAM 12 Bay Rackmount NAS Expansion Enclosure

2U 12-bay 3.5" SATA HDD NAS, AMD Ryzen 7000 series 8C16T (boost up to 5.3 GHz), 32GB DDR5 non-ECC RAM (max. 192GB total), 2x M.2 2280 PCIe Gen5 x2 slots for SSD cache, 2x 10GBASE-T + 2x 2.5 GbE RJ45, 3 x PCIe Gen 4 expansion slots, 2 x 550W redundant pwoer supply, without rail kit. Support rail kit RAIL-B02.

Key Features

• Supports up to 128GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported)
• Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment
• Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer
• Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cardsConnect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks
• The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030

Description

Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

Unmatched hardware design and high performance
The TS-h1277AXU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet diverse application requirements.

M.2 PCIe Gen 5 ultra-fast transfer speed
The TS-h1277AXU-RP comes with two M.2 2280 PCIe Gen 5 slots that allow for installing NVMe SSDs (including WD®, Micron®, Seagate®, Kingston®) to boost NAS performance. PCIe Gen 5 is backwards compatible with PCIe Gen 4 / PCIe Gen 3 for flexible SSD deployment.

Abundant I/O capabilities with PCIe Gen 4 expansion
The TS-h1277AXU-RP has three PCIe Gen 4 slots (twice the bandwidth of PCIe Gen 3) that allow for installing various expansion cards for expanding application potential.

Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1277AXU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Comprehensive backup and disaster recovery solution
The TS-h1277AXU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

Multi-version snapshots mitigate ransomware threats
The TS-h1277AXU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Comprehensive security and privilege settings
The TS-h1277AXU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

Simplified privilege settings
The TS-h1277AXU-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-h1277AXU-RP as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor
A security portal for the TS-h1277AXU-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-h1277AXU-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

TeamViewer remote access
TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.

All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Flexibly switch to QTS operating system
The TS-h1277AXU-RP also supports QTS - QNAP’s standard NAS operating system – that provides great everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1277AXU-RP.

Specifications

Storage
Total installed storage capacity	0 TB
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Storage drives installed	No
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor manufacturer	AMD
Processor threads	16
Processor boost frequency	5.3 GHz
CPU configuration (max)	1
Bus type	DMI3
Processor family	AMD Ryzen™ 7
Processor cores	8
Memory
Internal memory type	DDR5
Internal memory	32 GB
Maximum RAM supported	192 GB
Memory slots	4
Flash memory	5000 MB
Memory form factor	UDIMM
ECC	No
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	IPv4, IPv6
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
PCI Express x8 (Gen 4.x) slots	1
Hard drive
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Design
Cooling type	Active
Fan diameter	6 cm
Product colour	Black
Number of fans	3 fan(s)
LED indicators	HDD, LAN, Power, SSD, Status
Chassis type	Rack (2U)
Technical details
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Product colour	Black
Multilingual support	Yes
LED indicators	HDD, LAN, Power, SSD, Status
Chassis type	Rack (2U)
Buzzer	Yes
Number of fans	3 fan(s)
Harmonized System (HS) code	84714100
Performance
Built-in FTP server	Yes
System log	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Linux operating systems supported	CentOS 7.0, Ubuntu 14.04
Web-based management	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, TLS
Reset button	Yes
Operating system version	h5.0.0
Operating system installed	QuTS hero
Multilingual support	Yes
Management protocols	SNMP V2/V3
Buzzer	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	6 cm
Fan voltage	12 V
Number of fans	3 fan(s)
Security
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, TLS
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Linux operating systems supported	CentOS 7.0, Ubuntu 14.04
Operating system version	h5.0.0
Operating system installed	QuTS hero
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Management protocols	SNMP V2/V3
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
Fan voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power consumption (typical)	367.65 W
Number of power supply units	2
Weight & dimensions
Package width	567 mm
Package depth	721 mm
Package height	273 mm
Width	482 mm
Depth	550 mm
Height	88.6 mm
Weight	13 kg
Package weight	17.6 kg
Packaging content
Number of screws	84
Cables included	AC, LAN (RJ-45)
Power cables quantity	2
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Secure Key Technology version	1.00
Intel Enhanced Halt State	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Linux operating systems supported	CentOS 7.0, Ubuntu 14.04
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84714100
Packaging data
Package width	567 mm
Package depth	721 mm
Package height	273 mm
Package weight	17.6 kg
Cables included	AC, LAN (RJ-45)
