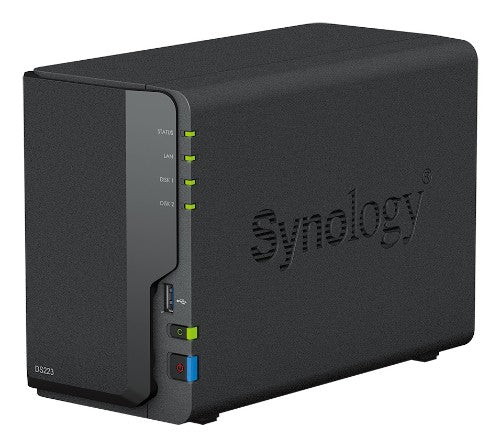

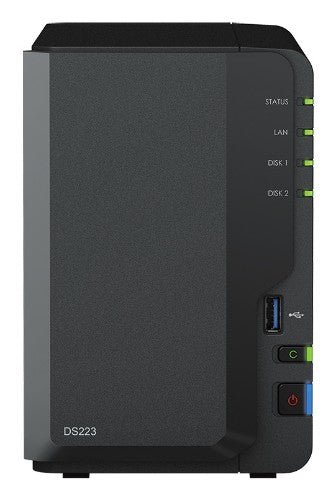

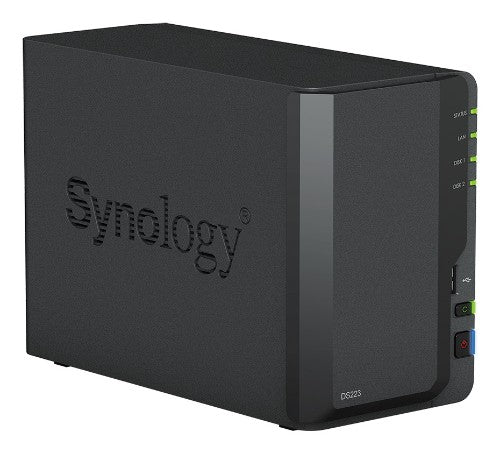

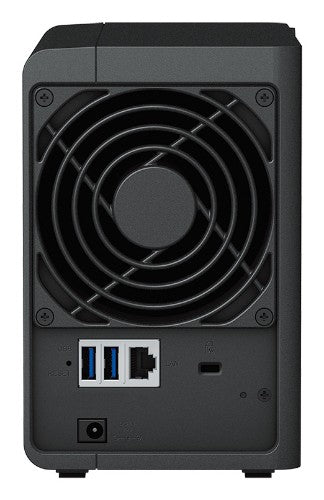

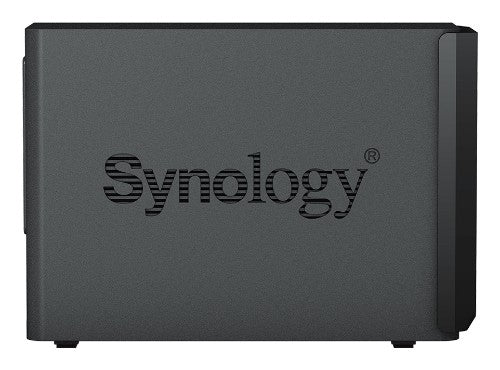

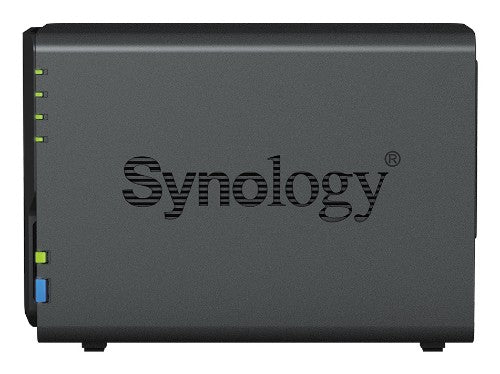

Synology DiskStation DS223 NAS Mini Tower Realtek RTD1619B 2 GB DDR4 24 TB HDD DiskStation Manager Black

24TB, Realtek RTD1619B (4x 1.7GHz), 2GB DDR4, 2x 2.5"/3.5" SATA, 1x RJ-45, 3x USB 3.2 Gen1

Description

Get your data under control
Consolidate files from various sources into your own private cloud. The DS223 keeps the process simple and offers everything you need to keep your data safe and organized.

Private cloud made easy
Quickly and easily import data from PCs, Macs, and external storage devices, and keep all your devices in sync for smoother file management.

Access from any device
Get to your files from PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Keep your data private or easily share it using secure links.

Save storage space
Enable on-demand mode to download files onto your Windows PC or Mac only when you access them. Pin the most important ones or the ones you access more frequently for convenient offline accessibility.

Integrate with the cloud
Sync files between your private cloud and public cloud services, including Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership.

Sync across locations
Say goodbye to long waits while downloading or uploading files. Continuously synchronize content between two Synology devices to enable fast local access at any location, no matter the amount of data.

Your data is in safe hands
Not all data storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers the DS223, leverages the efficient Btrfs file system to protect your data against data corruption and roll back any accidental or malicious changes thanks to the snapshot technology.

Versatile NAS for the modern home
Configure your DS223 to best suit your needs thanks to a host of complete solutions designed for every scenarios.

Data protection
Safeguard digital memories and important projects with intuitive backup tools.

Automatic media backup
Have photos and videos taken on mobile devices automatically uploaded to your private cloud with Synology Photos or Synology Drive.

Protection against cyberattacks
Leverage Synology Drive to protect data against ransomware attacks or accidental deletion with real-time or scheduled backups of your computer folders.

Wide compatibility
Connect up to 20 IP cameras by choosing from a wide selection of over 8,300 validated models or ONVIF devices.

Universal access
Watch over your property the way your find most convenient. Watch camera streams through web browsers, desktop clients, or mobile apps. Get notified of events and take immediate action.

Protect your data platform
Add an extra layer of protection to your files with one of the built-in, license-free solutions available to back up your DS223.

Flexible backups
Back up your entire NAS, including system settings and applications, or select specific folders. Secure all backup data to multiple destinations.

Near-continuous protection
Take NAS protection to the next level by creating point-in-time copies of shared folders that can be replicated elsewhere and rapidly restored.

Specifications

Storage
Total installed storage capacity	24 TB
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, JBOD
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	Realtek
Processor frequency	1.7 GHz
Processor family	Realtek
Processor model	RTD1619B
Processor cores	4
Number of processors supported	1
Memory
Internal memory type	DDR4
Internal memory	2 GB
Memory slots	0
ECC	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP)
iSCSI support	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
Concurrent connections	200
Hard drive
RAID support	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, JBOD
Design
Cooling type	Active
Fan diameter	9.2 cm
Cable lock slot type	Kensington
Product colour	Black
Number of fans	1 fan(s)
LED indicators	HDD, LAN, Status
Chassis type	Mini Tower
Cable lock slot	Yes
Technical details
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Product colour	Black
Number of users	1024 user(s)
Noise level	14.6 dB
Multilingual support	Yes
LED indicators	HDD, LAN, Status
Chassis type	Mini Tower
Number of fans	1 fan(s)
Sustainability compliance	Yes
Compliance certificates	BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, VCCI
Performance
System log	Yes
Share folder	SMB/NFS/AFP/FTP
Browser supported	Chrome, Firefox, Edge, Safari
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
Reset button	Yes
Operating system installed	DiskStation Manager
Number of users	1024 user(s)
Noise level	14.6 dB
Multilingual support	Yes
Access Control List (ACL)	Yes
Snapshot	Yes
USB copy function	Yes
Cooling
Cooling type	Active
Fan diameter	9.2 cm
Number of fans	1 fan(s)
Security
Cable lock slot type	Kensington
Security algorithms	HTTPS, SSH, SSL/TLS
Cable lock slot	Yes
Access Control List (ACL)	Yes
Software
Operating system installed	DiskStation Manager
Management features
On/off switch	Yes
Reset button	Yes
Power
Power consumption (HDD standby)	4.08 W
Power supply location	External
Power supply unit (PSU) capacity	60 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	17.343 W
Number of power supply units	1
External power adapter	Yes
Weight & dimensions
Width	108 mm
Depth	232.7 mm
Height	165 mm
Packaging content
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Sustainability
Sustainability compliance	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80%
Operating altitude	0 - 5000 m
Packaging data
Cables included	AC, LAN (RJ-45)
Other features
Compliance certificates	BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, VCCI
