Ubiquiti UNAS-PRO | UniFi NAS | 7 Bay | 10Gbps Network Attached Storage Device

Quad-Core ARM Cortex-A57 at 1.7 GHz, 8 GB, 2U, 7x (7) 2.5/3.5" HDD / SSD, 10G SFP+, GbE RJ4, 1.3" touchscreen

Key Features

• (7) 2.5/3.5" HDD / SSD support
• (1) 10G SFP+ uplink and (1) GbE RJ45 port
• Data protection with RAID storage technology
• UniFi Power Backup ready
• 1.3" touchscreen for management

Description

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing. (7) 2.5/3.5" HDD / SSD support (1) 10G SFP+ uplink and (1) GbE RJ45 port Data protection with RAID storage technology UniFi Power Backup ready 1.3" touchscreen for management Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") Weight Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) Enclosure SGCC steel Mounting SGCC steel Processor Quad-Core ARM Cortex-A57 at 1.7 GHz System Memory 8GB Management Interface Ethernet In-Band Networking Interface (1) GbE RJ45 port (1) 1/10 GbE SFP+ port RF Interface Bluetooth 4.1 Power Method (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A Power Supply AC/DC, internal, 200W Supported Voltage Range 100—240V AC Max. Power Consumption 160W Max. Power Budget for Drives 135W ESD/EMP Protection Air: ± 12kV, contact: ± 8kV LCM Display (1) 1.3" touchscreen Certifications FCC, CE, IC

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
RAID support	Yes
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A57
Processor frequency	1.7 GHz
Processor family	Cortex-A
Processor model	Cortex-A57
Processor cores	4
Memory
Internal memory	8 GB
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
USB port	No
Fiber ports quantity	1
Fiber optic connector	SFP+
Ethernet LAN (RJ-45) ports	1
Hard drive
RAID support	Yes
Design
Cooling type	Active
Housing material	Steel
Built-in display	Yes
Display type	LCM
Product colour	Grey
Number of fans	2 fan(s)
LED indicators	Status
Chassis type	Rack (2U)
Technical details
Type	NAS
Housing material	Steel
Backup function	Yes
Built-in display	Yes
Display type	LCM
Product colour	Grey
LED indicators	Status
Chassis type	Rack (2U)
Number of fans	2 fan(s)
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Performance
Type	NAS
Backup function	Yes
Reset button	Yes
Cooling
Cooling type	Active
Number of fans	2 fan(s)
Management features
Reset button	Yes
Power
Power consumption (max)	160 W
Power supply location	Built-in
Power supply unit (PSU) capacity	200 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Weight & dimensions
Width	442 mm
Depth	325 mm
Height	87 mm
Weight	9.2 kg

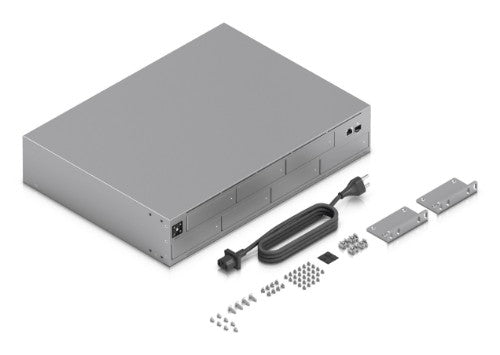

Packaging content
Rack mount kit	Yes
Cables included	Power
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Cables included	Power
Other features
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
