Synology

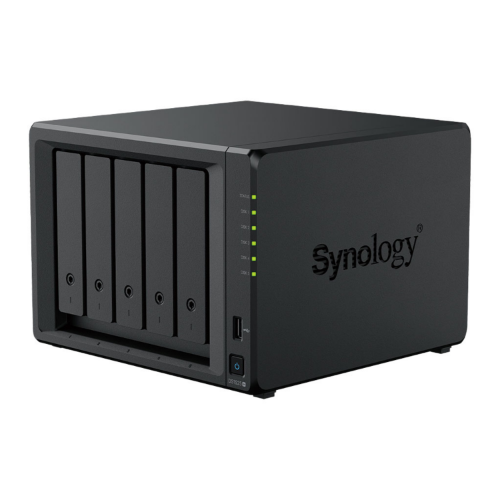

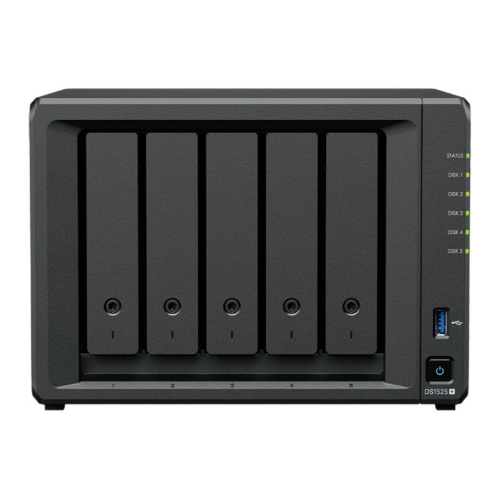

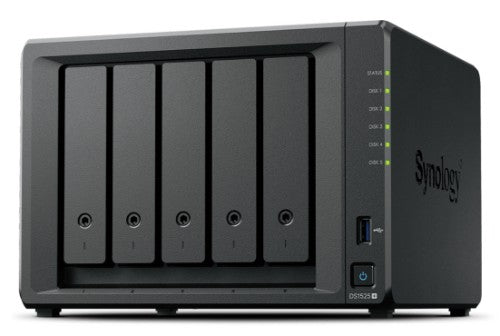

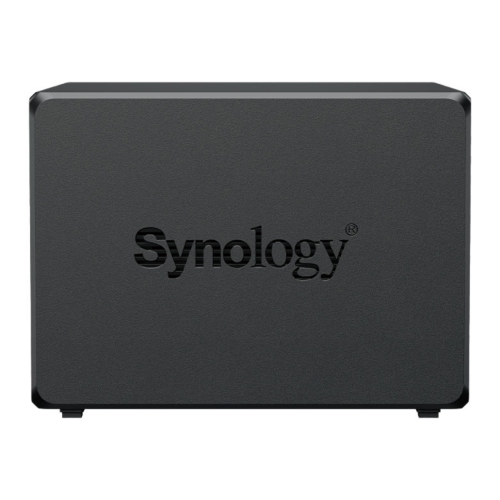

Synology DiskStation DS1525+ NAS/storage server Ryzen Embedded V1500B 8 GB DDR4 0 TB Black

SKU DS1525+
£608.67
£608.67
Excluding taxes
DiskStation DS1525+ Versatile all-purpose data hub

Key Features

  • Up to 1,181 MB/s sequential read and 1,180 MB/s sequential write performance enables fast file sharing, syncing, streaming, and backup for multiple users
  • Two 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load balancing capabilities
  • Support for 10GbE networking via 10GbE RJ-45 Network Upgrade Module provides versatility and futureproofing
  • Supports 5 2.5" SATA SSD and 3.5" SATA HDD.8 Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliability
  • Expandable to 15 drives for up to 300 TB of raw storage with two
  • Synology DX525 expansion units
  • Two built-in M.2 slots provide SSD caching capability without occupying drive bays

Description

A storage solution that can adapt with your evolving needs

5-bay with expansion
Up to 300 TB of raw storage with expansion unit1,2

High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write3, and 10GbE option4

Versatile applications
Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sites

Specifications

Storage
Total installed storage capacity 0 TB
Storage drives installed No
Installed storage drive type No
Number of storage drives installed 0
Supported storage drive types HDD & SSD
Number of storage drives supported 15
Maximum supported storage capacity 300 TB
Storage drive capacity 0 GB
Hot-swap drive bays Yes
RAID support Yes
Supported file systems BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Supported storage drive interfaces M.2, Serial ATA
Storage drive sizes supported 3.5,M.2,2.5
Number of M.2 (M & B) slots 2
Processor
Processor generation AMD Ryzen Embedded V1000 Series
Processor manufacturer AMD
Processor threads 8
Processor frequency 2.2 GHz
Processor family Ryzen Embedded
Processor model V1500B
Processor cores 4
Memory
Internal memory type DDR4
Internal memory 8 GB
Maximum RAM supported 32 GB
Memory slots 2
Memory form factor SO-DIMM
ECC Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 2500 Mbit/s
Wake-on-LAN ready Yes
Ports & interfaces
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 2
Hard drive
RAID support Yes
Supported file systems BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Design
Fan diameter 2 9.2 cm
Cooling type Active
Fan diameter 9.2 cm
Drive bay locking Yes
Product colour Black
Number of fans 2 fan(s)
LED indicators Yes
Technical details
Type NAS
Device class Home & Home Office
Backup function Yes
Backup features Cloud, iSCSI LUN
Product colour Black
Number of users 1024 user(s)
Noise level 22.6 dB
Multilingual support Yes
LED indicators Yes
Number of fans 2 fan(s)
Warranty period 3 year(s)
Compliance certificates RoHS
Performance
System log Yes
Browser supported Chrome,Firefox,Edge,Safari
Type NAS
Device class Home & Home Office
Backup function Yes
Backup features Cloud, iSCSI LUN
On/off switch Yes
Web-based management Yes
Number of users 1024 user(s)
Noise level 22.6 dB
Multilingual support Yes
Access Control List (ACL) Yes
Snapshot Yes
Cooling
Cooling type Active
Fan diameter 9.2 cm
Number of fans 2 fan(s)
Security
Drive bay locking Yes
Access Control List (ACL) Yes
Management features
On/off switch Yes
Web-based management Yes
Power
Power consumption (HDD standby) 13.63 W
Power supply location External
Power supply unit (PSU) capacity 120 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 44.56 W
External power adapter Yes
Weight & dimensions
Width 230 mm
Depth 223 mm
Height 166 mm
Weight 2.67 kg
Packaging content
External power adapter Yes
Cables included AC, LAN (RJ-45)
Power cables quantity 1
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 5000 m
Packaging data
Cables included AC, LAN (RJ-45)
Other features
Warranty period 3 year(s)
Compliance certificates RoHS
