Gigabyte

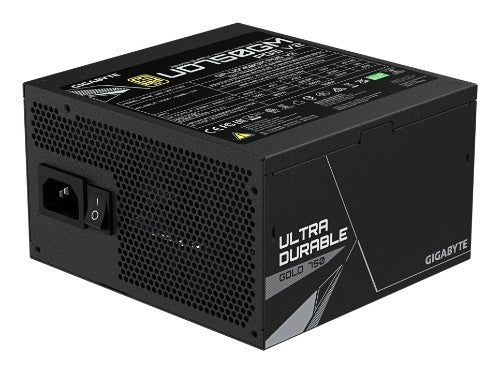

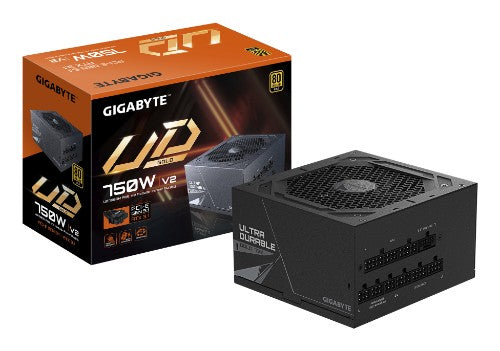

GIGABYTE UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug

SKU GP-UD750GM PG5 V2
£67.65
£67.65
Excluding taxes
UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug

Key Features

  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified

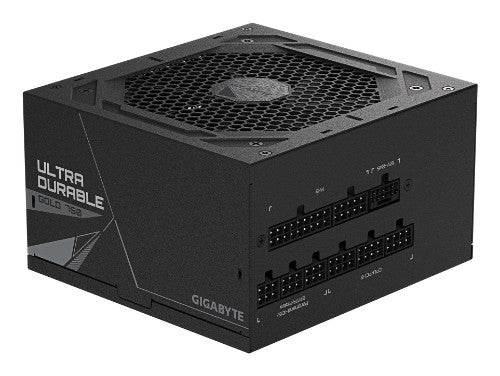

  • Fully modular design
  • Powerful single +12V rail
  • Compact size
  • 100% Japanese capacitors

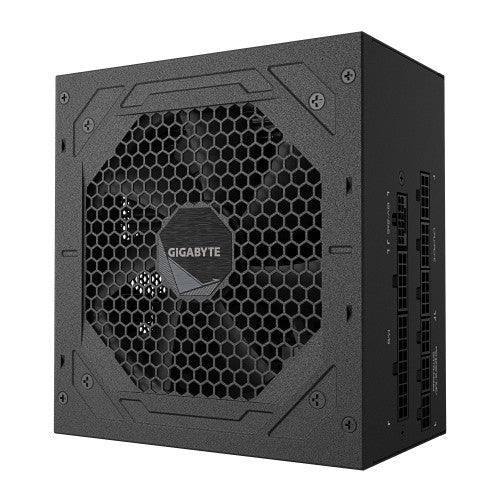

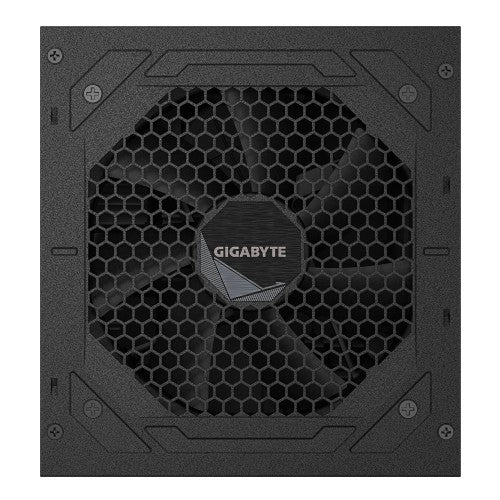

  • 120mm smart hydraulic bearing (HYB) fan
  • Optimized thermal solution
  • OVP/OPP/SCP/UVP/OCP/OTP protection

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Cooling
Fan diameter 12 cm
Number of fans 1 fan(s)
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
Mean time between failures (MTBF) 100000 h
Bearing technology HYB
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Number of fans 1 fan(s)
Cooling type Active

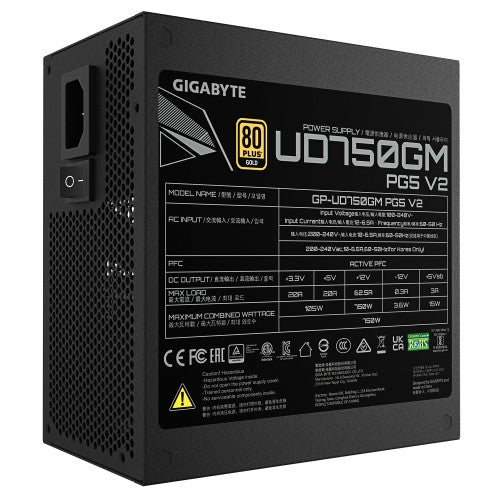

Power
Total power 750 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 12 - 6.5 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 105 W
Combined power (+12V) 750 W
Combined power (+5V) 105 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time 16 ms
Efficiency 90%
Ports & interfaces
Motherboard power cable length 61 cm
SATA power cable length 150,600 mm
Peripheral (Molex) power cable length 150,500 mm
PCI Express power cable length 60 cm
CPU power cable length 65 cm

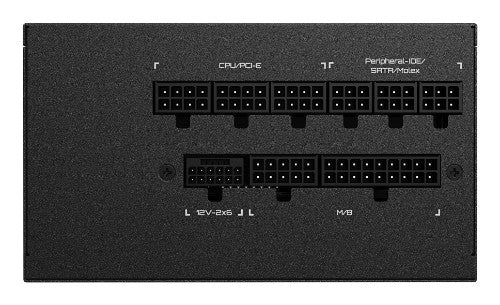

Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 8
Peripheral (Molex) power connectors (4-pin) 3
PCI Express power connectors (6+2 pin) 4
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Floppy drive power connector 1
Cabling type Fully-Modular
PCI Express power connectors (12+4 pin) 1
PCI Express power connectors (12+4 pin) cable length 700 mm
Number of EPS connectors 2
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 2.34 kg
Packaging data
Package depth 269 mm
Package width 618 mm
Package height 211 mm
Package type Box
Package weight 2.5 kg
Technical details
Warranty period 5 year(s)
Certificates
80 PLUS certification 80 PLUS Gold
Logistics data
Warranty period 5 year(s)
