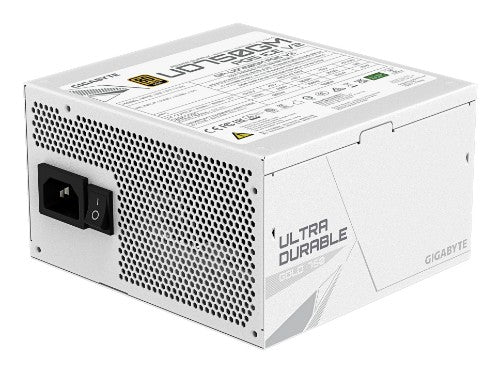

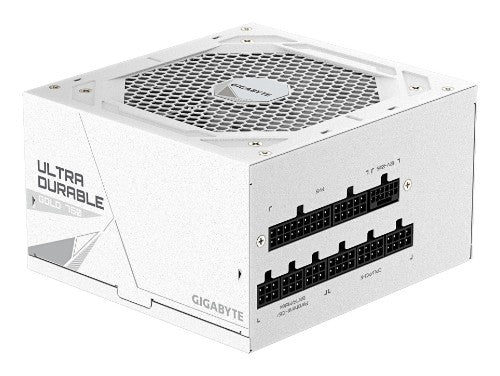

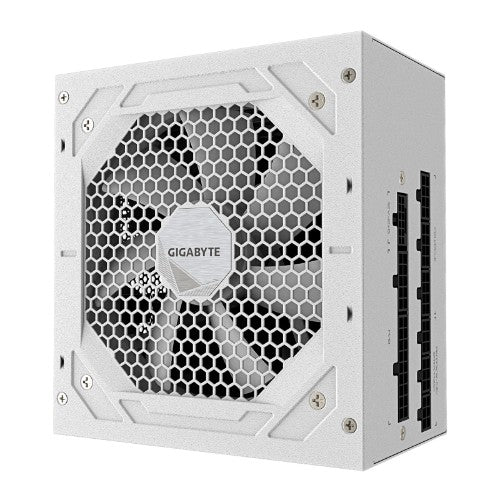

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug

UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug

Key Features

• Intel ATX 3.1 and PCIe Gen 5.1 ready
• 80 PLUS Gold certified
• Fully modular design
• Powerful single +12V rail
• Compact size
• 100% Japanese capacitors

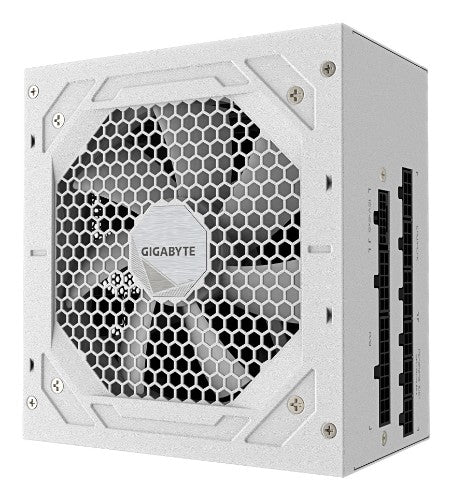

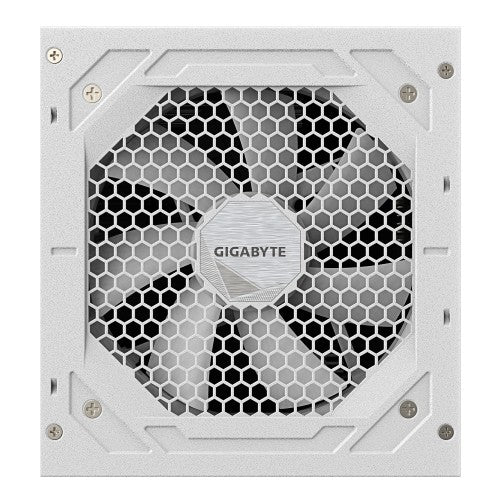

• 120mm smart hydraulic bearing (HYB) fan
• Optimized thermal solution
• OVP/OPP/SCP/UVP/OCP/OTP protection

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	HYB
Design
80 PLUS certification	80 PLUS Gold
Product colour	White
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active

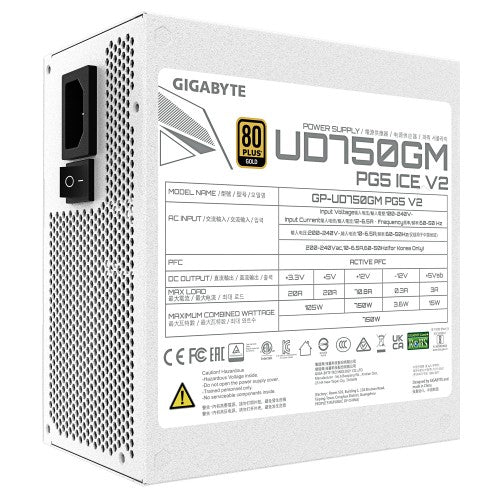

Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	12 - 6.5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	750 W
Combined power (+5V)	105 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time	16 ms
Efficiency	90%

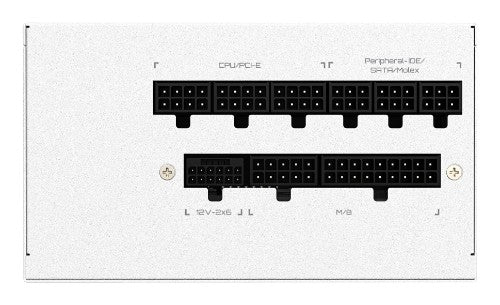

Ports & interfaces
Motherboard power cable length	61 cm
PCI Express power cable length	60 cm
CPU power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Floppy drive power connector	1
Cabling type	Fully-Modular
PCI Express power connectors (12+4 pin)	1
PCI Express power connectors (12+4 pin) cable length	700 mm
Number of EPS connectors	2
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	2.34 kg

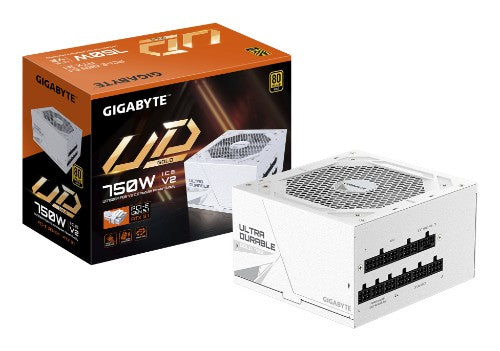

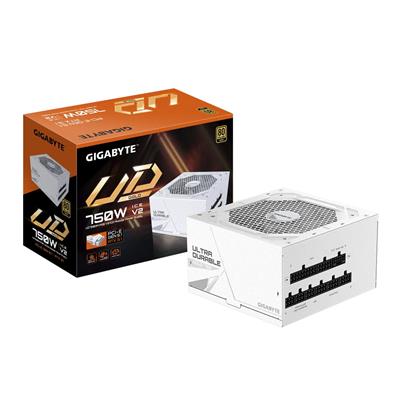

Packaging data
Package depth	269 mm
Package width	618 mm
Package height	211 mm
Package type	Box
Package weight	2.5 kg
Technical details
Warranty period	5 year(s)
Certificates
80 PLUS certification	80 PLUS Gold
Logistics data
Warranty period	5 year(s)
