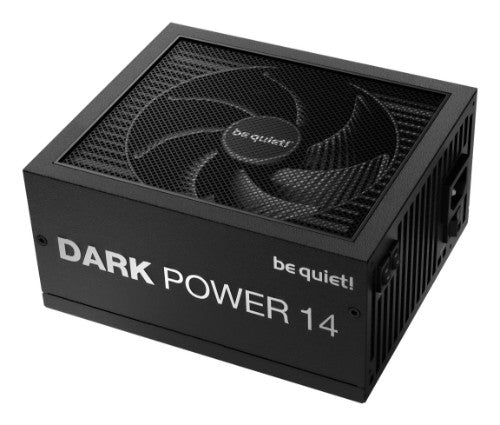

be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black

be quiet! Dark Power 14 1000 W - 80 Plus Titanium, 1000 W, 100 - 240 V, 1100 W, 50/60 Hz, 10 A, 5 A

Description

be quiet! Dark Power 14 1000 W - 80 Plus Titanium. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan speed	0 - 2100 RPM
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Titanium
Purpose	PC
ATX version	3.1
EPS version	2.92
Noise level	18.2 dB
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Titanium
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan speed	0 - 2100 RPM
Cooling type	Active

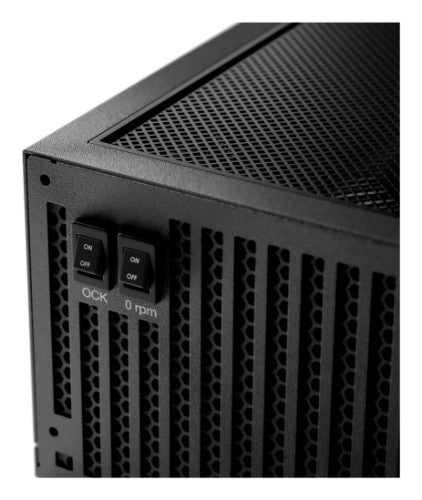

On/off fan switch	Yes
Power
Total power	1000 W
Maximum input current (@220V)	5 A
Peak power	1100 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power factor	0.98
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	996 W
Combined power (+5V)	120 W
Max output current (+3.3V)	25 A
Max output current (+12V1)	33 A
Max output current (+12V2)	33 A
Max output current (+12V4)	40 A
Max output current (+12V3)	40 A
Max output current (+5V)	24 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time	20.1 ms
Efficiency	93.8%
Number of +12V rail(s)	4
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	600,750,900,1050 mm
Peripheral (Molex) power cable length	900,1050 mm
PCI Express power cable length	60 cm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12-pin)	1
Number of SATA power cables	13
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Shipping (inner) case width	36.8 cm
Shipping (inner) case net weight	19.3 kg
Shipping (inner) case length	52.8 cm
Shipping (inner) case height	26 cm
Products per shipping (inner) case	4 pc(s)
Sustainability certificates	ENERGY STAR, ErP, Triman
Compliance certificates	CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Certificates
Compliance certificates	CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
80 PLUS certification	80 PLUS Titanium
Weight & dimensions
Width	150 mm
Depth	175 mm
Height	86 mm
Weight	2.2 kg
Packaging data
Screws included	Yes
Cable ties included	Yes
Package depth	126 mm
Package width	230 mm
Package height	355 mm
Package weight	3.5 kg
Manual	Yes
Manual languages	Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Packaging content
Screws included	Yes
Cable ties included	Yes
Manual	Yes
Logistics data
Shipping (inner) case width	36.8 cm
Shipping (inner) case net weight	19.3 kg
Shipping (inner) case length	52.8 cm
Shipping (inner) case height	26 cm
Products per shipping (inner) case	4 pc(s)
Other features
Screws included	Yes
Cable ties included	Yes
Manual	Yes
