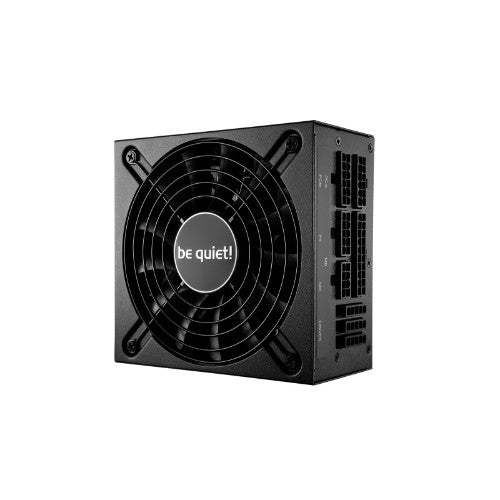

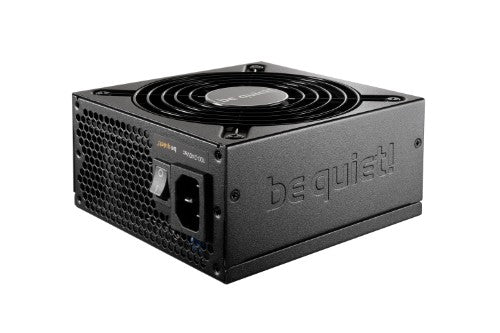

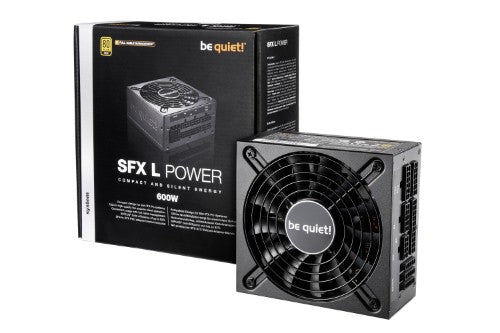

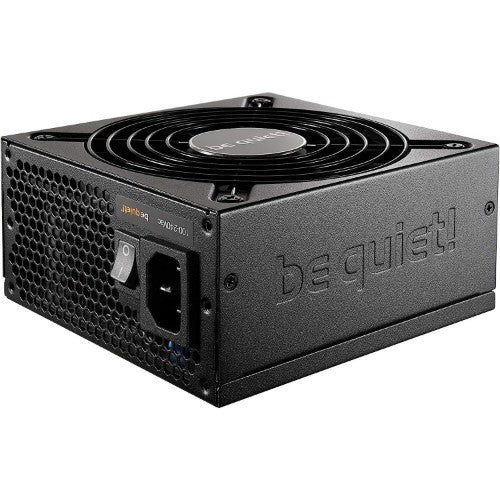

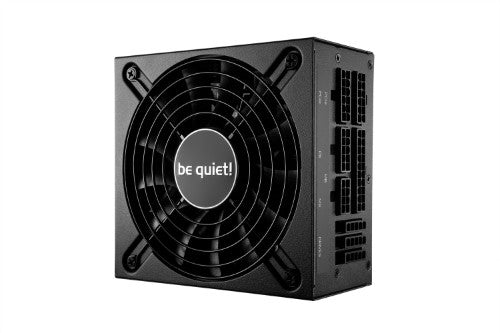

be quiet! SFX L Power 600W PSU | 80 PLUS Gold | SFX-to-ATX Adapter | Temperature Controlled 120mm Fan

600 W, SFX 12V 3.3/ATX 2.4, 120mm fan, 28.7dB max., ATX 20+4-pin, 4x PCI-E 6+2-pin, 1x P4+4, 6x SATA, 3x PATA

Key Features

• 80PLUS® Gold certification with up to 92% power conversion efficiency
• Multi-GPU support with four PCIe connectors
• Full cable management for build flexibility and convenient usage
• Silent, temperature-controlled 120mm high-quality fan
• LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency
• High-quality Japanese capacitors for maximum reliability and operating life
• Powerful 12V-rail design for high stability and performance
• SFX-to-ATX adapter bracket allows flexible use with larger case sizes
• Black flat cables of up to 80cm for improved cooling
• Full suite of top safety features
• Product conception, design and quality control in Germany

Reasons To Buy

MODULAR AND FLAT CABLES

Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.

SUPER VERSATILE INSTALLATION

This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.

Description

Compact and Silent Energy

be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.

POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.

QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.

80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.

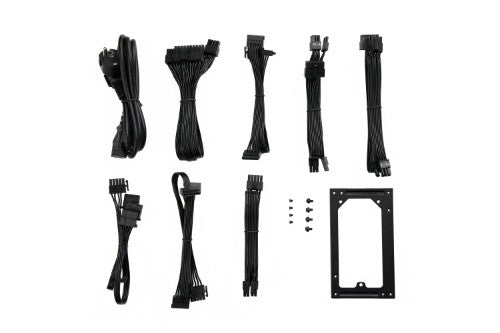

MODULAR AND FLAT CABLES
Highly compatible and convenient
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.

SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	SFX
Silent mode	Yes
Noise level (quiet mode, 50%)	14.5 dB
Noise level (silent mode, <30%)	9.9 dB
Noise level (full-load mode, 100%)	28.7 dB
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	2.4
Certification	CE, CB, TÜV, FCC, cTUVus, RCM
Bearing technology	Sleeve
Supported motherboard form factors	Mini-ITX
Harmonized System (HS) code	84733020
Design
80 PLUS certification	80 PLUS Gold
Certification	CE, CB, TÜV, FCC, cTUVus, RCM
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Power
Total power	600 W
Peak power	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	10 A
Power factor	0.99
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	600 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V)	50 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time	16.8 ms
Efficiency	92%
Ports & interfaces
Motherboard power cable length	30 cm
PCI Express power cable length	40 cm
CPU power cable length	40 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Number of PATA power connectors	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Weight & dimensions
Width	125 mm
Depth	130 mm
Height	64 mm
Weight	1.16 kg
Packaging data
Screws included	Yes
Cable ties included	Yes
Package depth	220 mm
Package width	205 mm
Package height	80 mm
Package type	Box
Package weight	2.04 kg
Manual	Yes
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Certificates
80 PLUS certification	80 PLUS Gold
Certification	CE, CB, TÜV, FCC, cTUVus, RCM
Packaging content
Screws included	Yes
Cable ties included	Yes
Manual	Yes
Logistics data
Master (outer) case width	430 mm
Master (outer) case length	430 mm
Master (outer) case height	240 mm
Products per master (outer) case	10 pc(s)
Master (outer) case gross weight	21.5 kg
Harmonized System (HS) code	84733020
Other features
Screws included	Yes
Cable ties included	Yes
Noise level (quiet mode, 50%)	14.5 dB
Noise level (silent mode, <30%)	9.9 dB
Noise level (full-load mode, 100%)	28.7 dB
Manual	Yes
Harmonized System (HS) code	84733020
