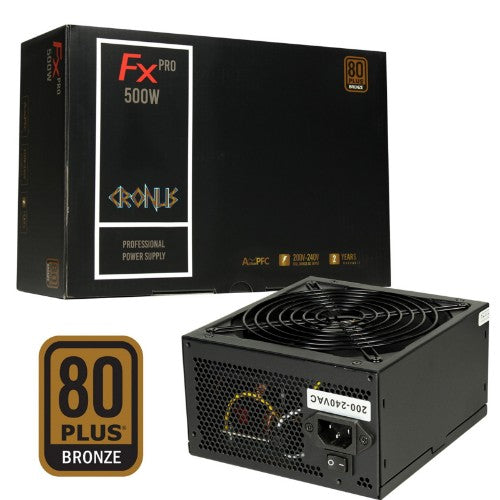

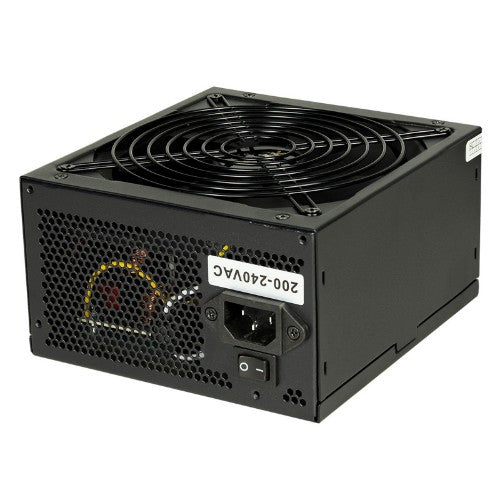

CRONUS 500ATV FX PRO 500W PSU 140mm Silent Cooling Fan 80 PLUS Bronze Non Modular Flat Black Cables Supreme Performance power supply unit

CRONUS 500ATV FX PRO 500W PSU 140mm Silent Cooling Fan 80 PLUS Bronze Non Modular Flat Black Cables Supreme Performance Power Supply Unit

Description

The FX Pro series is the latest PSU series launched by Cronus. The FX Pro range are a non-modular power supplies that we offer in three power configurations, 500W, 600W and 700W, all 80 Plus Bronze certified. The 500W is an excellent choice for both first time builders and experienced builders. Our Pro power supply is an 80 plus bronze certified, with 85% efficiency or higher under typical loads, ideal for system integrators. A non-modular PSU with flat back cables included, this PSU is great for those who like the correct balance between cable management and build flexibility, combining 500W of excellent power with great performance, optimised rail structure allows you to realise a more powerful performance from your power supply.

80 Plus Bronze
The Cronus FX Pro 500W achieves 80 Plus Bronze certification with its 85% at 50% system load.

Excellent Cooling Operation
A 14cm cooling fan for excellent airflow and heat dissipation.

Flat Black Cables
With flat black cables included gamers can easily manage and save space creating a nice looking gaming set up.

Structure
An active PFC ensures small and light components with great flexibility and control and you are able to operate in universal input range for a supreme performance.

Warranty
The Cronus FX Pro range comes with 2 years warranty.

Model
FX PRO 500W

Wattage
500W

Input Voltage
200-240 VAC

Input Current
6A

Input Frequency Range
47-63Hz

PFC
Active PFC

Power Good Signal
300ms

Hold Up Time
10ms

Efficiency
85%

MTBF
50,000 Hours

Protection
OVP / UVP / OLP / OPP / SCP

Operation Temperature
0-40°C

Safety
CE / CCC

Cooling
140mm Silent Cooling Fan

Noise
40dBA

80 PLUS Certified
Bronze

Colour
Black

Connections
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e

What's In The Box
PSU
Screws

Product Dimensions ( W x H x D )
150mm x 85mm x 160mm

Packaging Dimensions ( W x H x D )
257mm x 100mm x 180mm

Weight
Net: 1.5 KGs
Gross: 1.67 KGs

Master Carton Quantity
6

Mains Plug Included
No - Please see CLTAR-RB-250

Specifications

Design
80 PLUS certification	80 PLUS Bronze
Certification	80 PLUS Bronze
Product colour	Black
Power
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	6 A
Efficiency	85%
Performance
Silent mode	Yes
80 PLUS certification	80 PLUS Bronze
Noise level	40 dB
Certification	80 PLUS Bronze
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	85 mm
Weight	150 g
Packaging data
Package depth	180 mm
Package width	257 mm
Package height	100 mm
Package type	Box
Package weight	167 g
Certificates
80 PLUS certification	80 PLUS Bronze
Certification	80 PLUS Bronze
