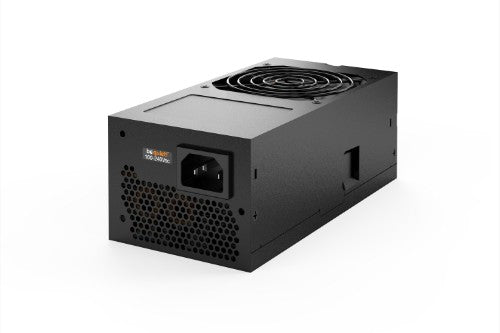

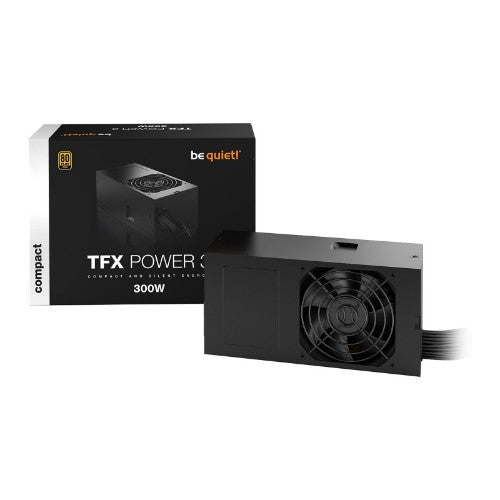

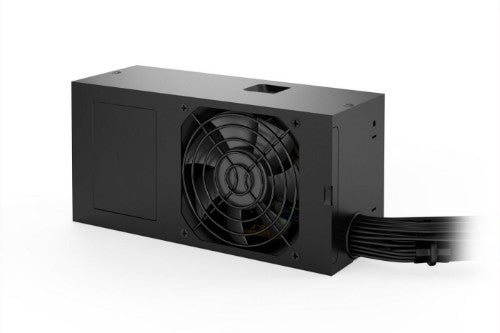

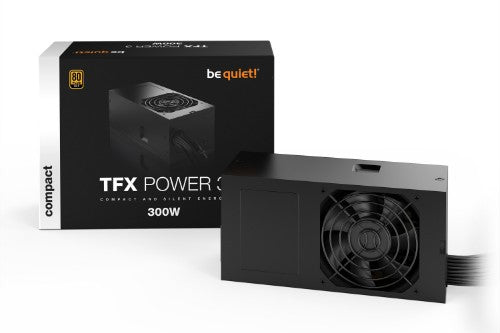

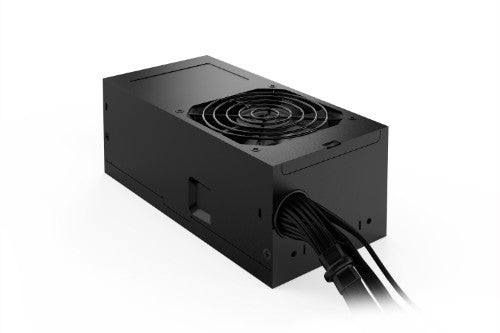

be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black

300W, ATX TFX12V V2.52, EPS 2.92, 1x 80mm (1323RPM), 80 PLUS Gold

Key Features

• 80 PLUS® Gold efficiency (up to 91.7%) for lower power consumption
• Strong dual 12V-rails for high stability and PCIe graphics card support
• 300W of continuous power

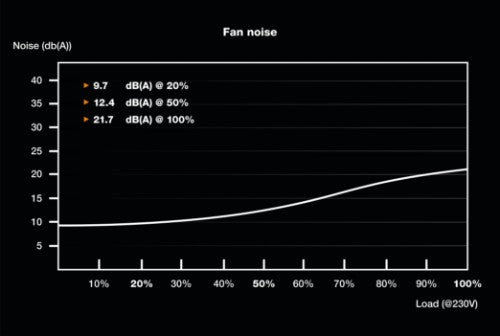

• High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A)
• Sleeved or flat black cables up to 60cm long
• Meets the latest safety and efficiency requirements
• Modern safety protections reliably defend against numerous failures
• Standby draw less than 0.17 watts
• Product conception, design and quality control in Germany

Description

TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.

Specifications

Cooling
Fan diameter	8 cm
Number of fans	1 fan(s)
Cooling type	Active
Design
80 PLUS certification	80 PLUS Gold
Safety	CE, CB, TÜV, CU
Product colour	Black
Fan diameter	8 cm
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	300 W
Maximum input current (@220V)	2 A
Peak power	350 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	4/2 A
Power factor	0.98
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	4 A
Combined power (+3.3V)	103 W
Combined power (+12V)	288 W
Combined power (+5V)	103 W
Max output current (+3.3V)	18 A
Max output current (+12V1)	13 A
Max output current (+12V2)	13 A
Max output current (+5V)	18 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Hold time	29 ms
Efficiency	90.6%
Ports & interfaces
Motherboard power cable length	35 cm
SATA power cable length	300,450,600 mm
Peripheral (Molex) power cable length	300,450 mm
PCI Express power cable length	40 cm
CPU power cable length	35 cm
Floppy disk drive cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	1
CPU P4 connector (4-pin)	1
Floppy drive power connector	1
Cabling type	Non-Modular
Performance
Power supply unit (PSU) form factor	TFX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	2.52
EPS version	2.92
Safety	CE, CB, TÜV, CU
Noise level	21.7 dB
Mean time between failures (MTBF)	100000 h
Harmonized System (HS) code	84733020
Technical details
Shipping (inner) case width	27.5 cm
Shipping (inner) case length	47.4 cm
Shipping (inner) case height	19.5 cm
Products per shipping (inner) case	6 pc(s)
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	RoHS, WEEE
Weight & dimensions
Width	85 mm
Depth	175 mm
Height	65 mm
Weight	1.1 kg
Packaging data
Package depth	80 mm
Package width	159 mm
Package height	215 mm
Package type	Box
Package weight	1.43 kg
Certificates
80 PLUS certification	80 PLUS Gold
Safety	CE, CB, TÜV, CU
Logistics data
Harmonized System (HS) code	84733020
Shipping (inner) case width	27.5 cm
Shipping (inner) case length	47.4 cm
Shipping (inner) case height	19.5 cm
Products per shipping (inner) case	6 pc(s)
Shipping (inner) case gross weight	9.39 kg
Other features
Harmonized System (HS) code	84733020
