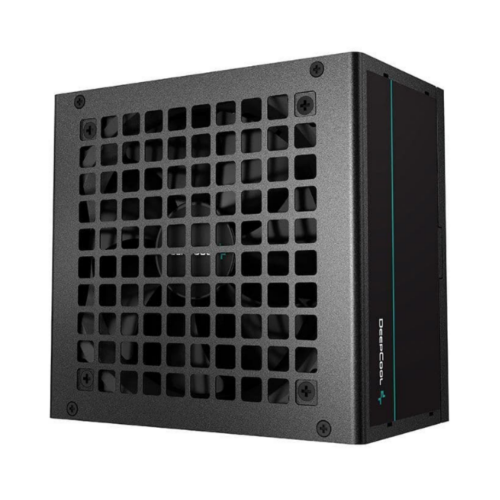

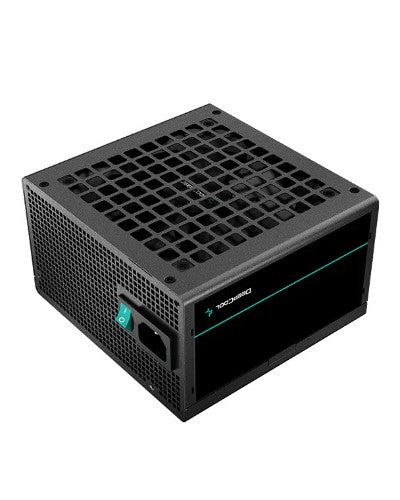

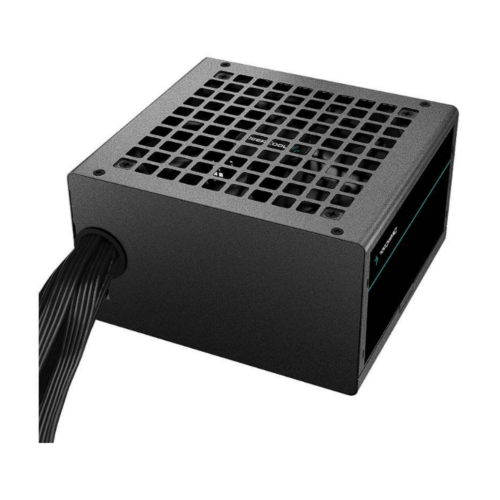

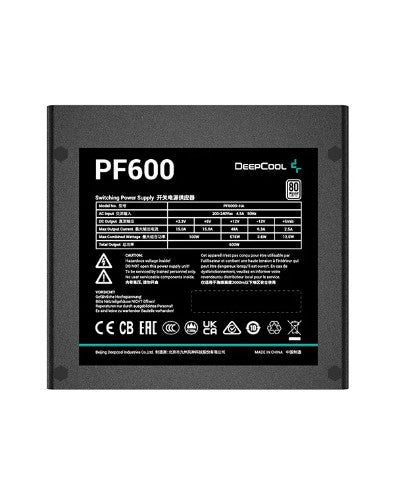

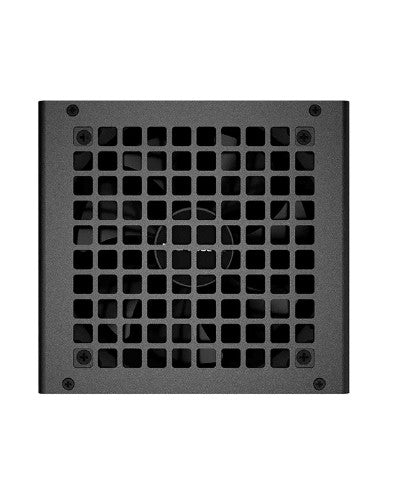

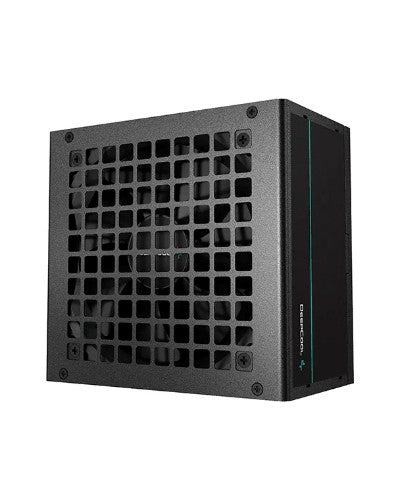

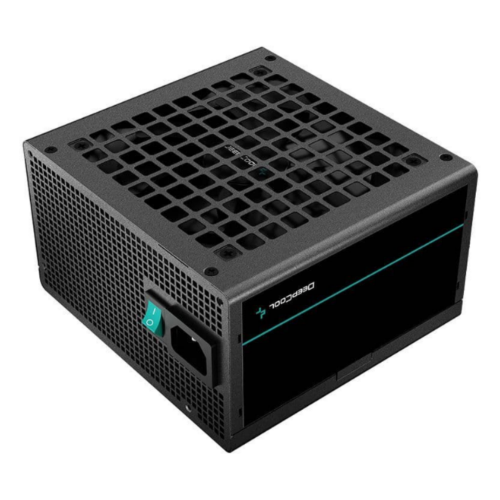

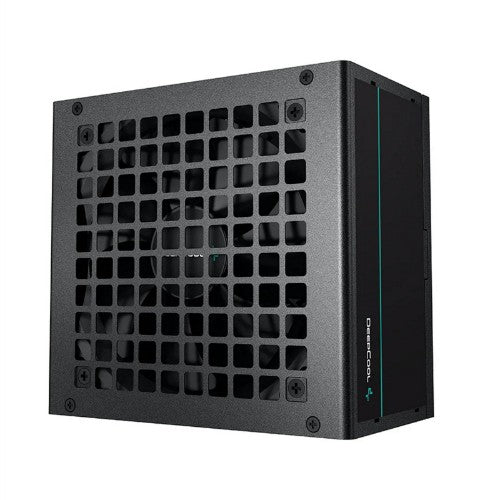

DeepCool PF600 power supply unit 600 W 20+4 pin ATX ATX Black

600W, ATX12V V2.4, 120mm HYB, 80 PLUS White, Non Modular

Description

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS White
Purpose	PC
ATX version	2.4
Mean time between failures (MTBF)	100000 h
Bearing technology	HYB
Supported motherboard form factors	ATX
Harmonized System (HS) code	84733020
Design
80 PLUS certification	80 PLUS White
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	600 W
AC input voltage	200 - 240 V
AC input frequency	50 Hz
Input current	4.5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	576 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	15 A
Max output current (+12V)	48 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Hold time	16 ms
Efficiency	85%
Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	450 mm
Peripheral (Molex) power cable length	150 mm
PCI Express power cable length	51 cm
CPU power cable length	61 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included	Yes
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Technical details
Sustainability certificates	ErP
Certificates
80 PLUS certification	80 PLUS White
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
