DeepCool

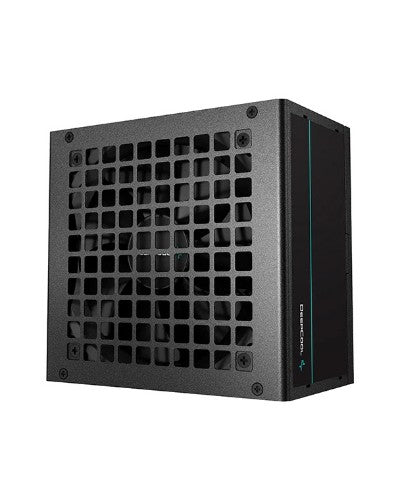

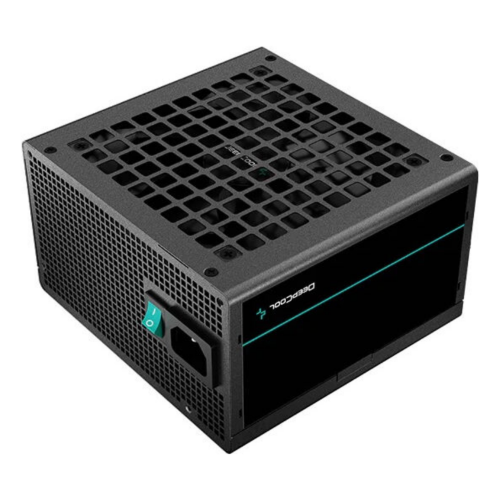

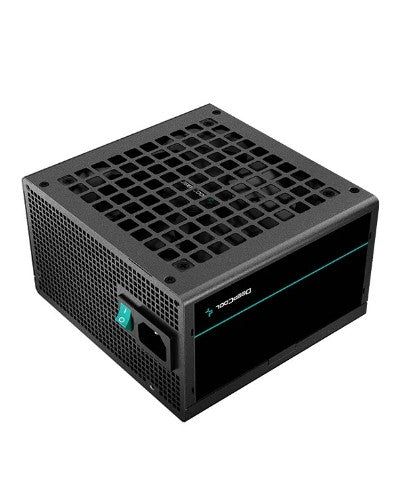

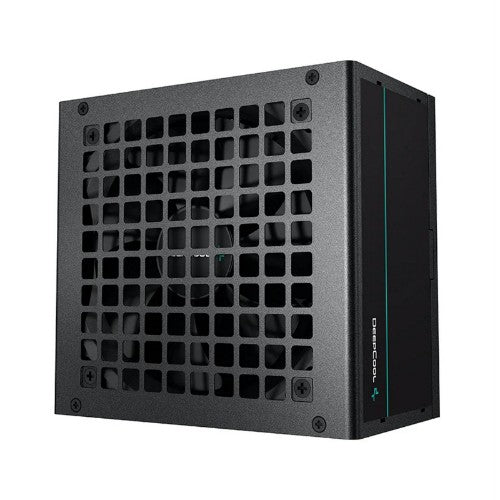

DeepCool PF500 500W PSU | 120mm Silent Hydraulic Bearing Fan | 80 PLUS White | Non Modular | UK Plug | Flat Black Cables | Efficient & Affordable

SKU R-PF500D-HA0B-UK
£24.75
£24.75
Excluding taxes
500 W, ATX12V V2.4, 230V EU White, ≥85% Under Typical Load(50% Loading), 100000 Hours, 100-500ms

Description

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN

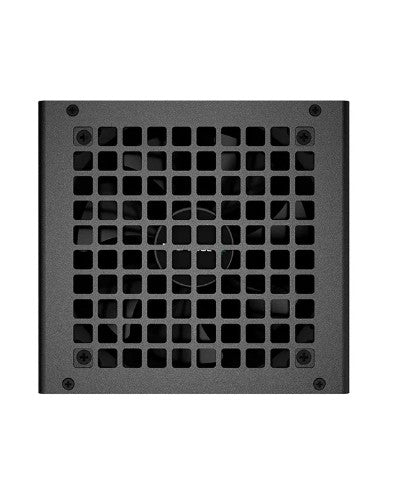

Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

Specifications

Cooling
Fan diameter 12 cm
Design
80 PLUS certification 80 PLUS White
Product colour Black
Fan diameter 12 cm
Power

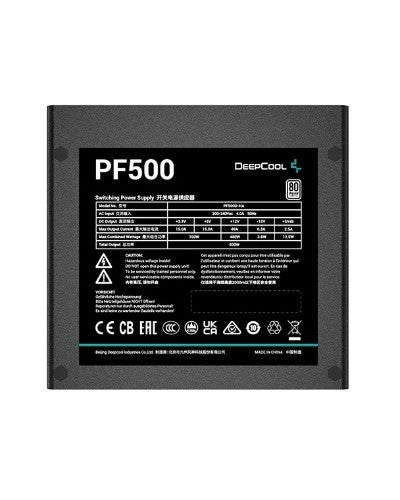

Total power 500 W
AC input voltage 200 - 240 V
AC input frequency 50 Hz
Input current 4 A
Combined power (+3.3V) 100 W
Combined power (+12V) 480 W
Combined power (+5V) 100 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 15 A
Max output current (+12V) 40 A
Max output current (+5V) 15 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Power protection features Over power, Over voltage, Short circuit, Under voltage
Efficiency 85%
Ports & interfaces
Motherboard power cable length 55 cm
SATA power cable length 450 mm
Peripheral (Molex) power cable length 150 mm
PCI Express power cable length 51 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 3
Peripheral (Molex) power connectors (4-pin) 1
PCI Express power connectors (6+2 pin) 2
Cabling type Non-Modular
Performance
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS White
Purpose PC
ATX version 2.4
Mean time between failures (MTBF) 100000 h
Bearing technology Sleeve
Supported motherboard form factors ATX
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Technical details
Sustainability certificates ErP
Certificates
80 PLUS certification 80 PLUS White
