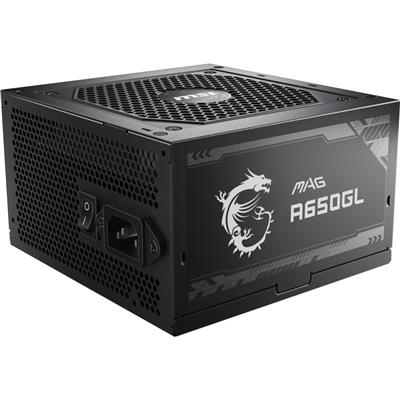

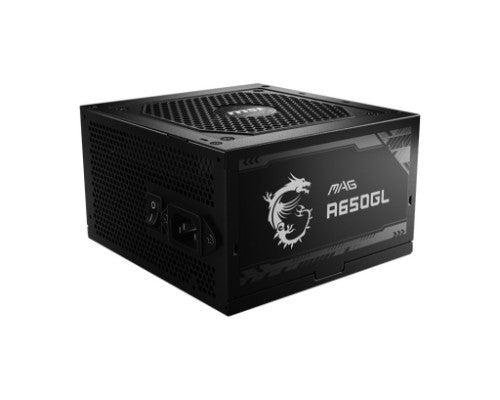

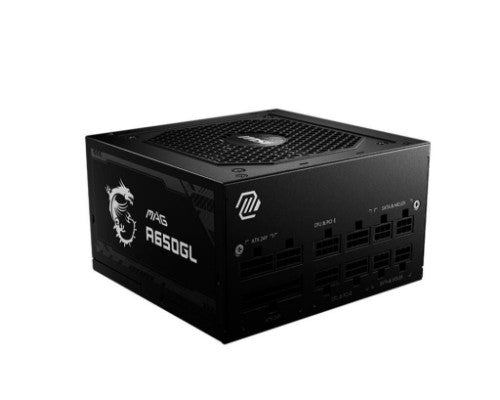

MSI MAG A650GL power supply unit 650 W 20+4 pin ATX ATX Black

650 W, 120 mm, 47-63Hz, 140 x 150 x 86 mm

Key Features

• Full modular design, Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• 120mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design

Description

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

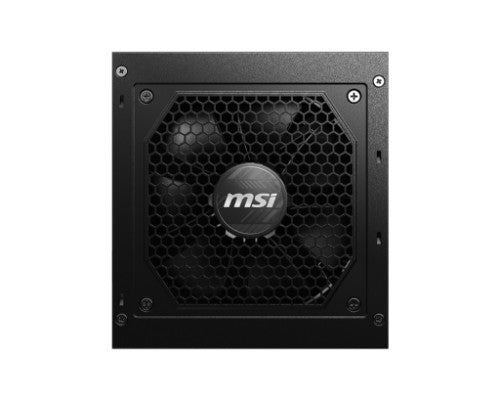

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
Harmonized System (HS) code	84733020
Design
80 PLUS certification	80 PLUS Bronze
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	650 W
Maximum input current (@220V)	5 A
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	10 A
Combined power (+3.3V)	100 W
Combined power (+12V)	648 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	20 A
Power protection features	Over current, Over power, Over voltage, Short circuit
Efficiency	90%
Ports & interfaces

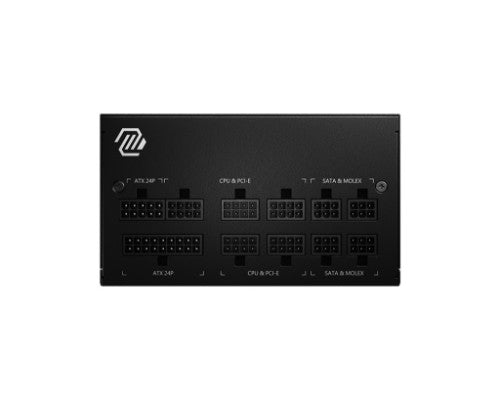

Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	No
PCI Express power connectors (6-pin)	0
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (8-pin)	0
CPU power connector (4+4 pin)	Yes
Floppy disk drive connector	No
ATX Power connector (24-pin)	No
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12+4 pin)	0
PCI Express power connectors (12-pin)	0
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Bronze
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
