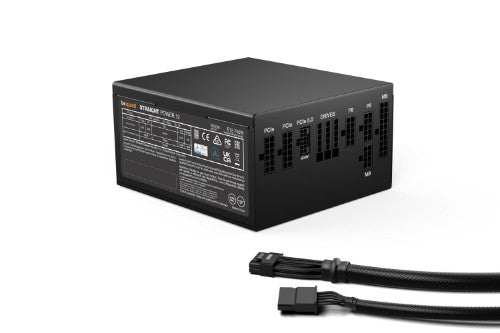

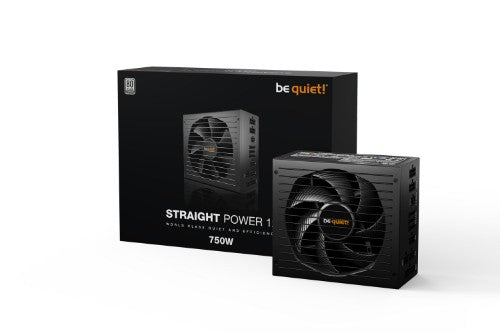

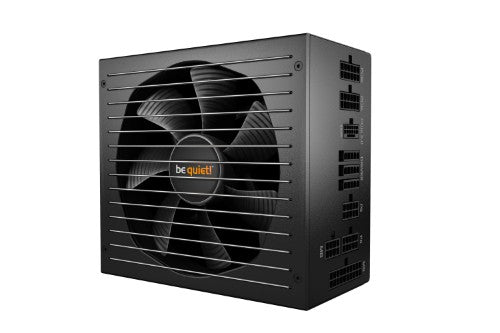

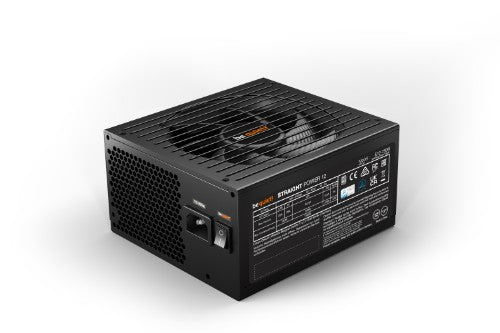

be quiet! Straight Power 12 power supply unit 750 W 20+4 pin ATX ATX Black

80 PLUS Platinum, 750 W, 135 mm, 160 x 150 x 86 mm

Key Features

• 80 PLUS Platinum efficiency (up to 93.8%)
• ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
• Handles massive power excursions
• Virtually inaudible Silent Wings 135mm fan
• Funnel-shaped fan opening on PSU case for high airflow intake
• Full bridge LLC technology for unmatched signal stability
• One massive high-performance 12V-rail
• Japanese 105°C capacitors ensure highest stability and reliability
• Wire-free DC side inside the PSU for enhanced cooling and longevity
• Modular cable management for maximum convenience
• One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

Description

World Class Quiet and Efficiency

Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.

80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications
Straight Power 12 1500W is an ATX 3.1 PSU and comes with both native integration of 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

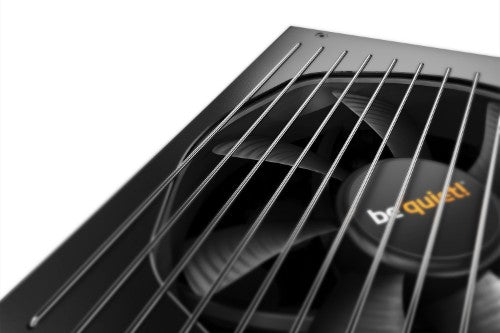

SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.

FLAWLESS COOLING CONCEPT
For a longer lifespan

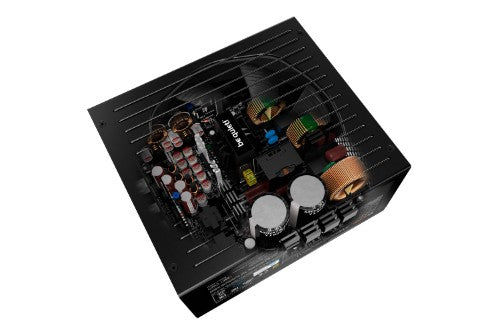

The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

CONVENIENCE AND CONNECTIVITY
Maximum utility

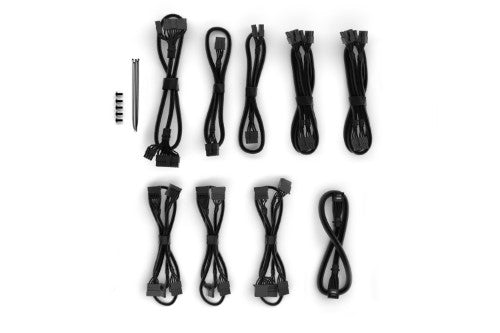

Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan speed	0 - 1800 RPM
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
EPS version	2.92
Noise level	20.8 dB
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Supported motherboard form factors	ATX, micro ATX, Mini-ATX
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan speed	0 - 1800 RPM
Cooling type	Active
Power
Total power	750 W
Peak power	820 W
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Input current	10/5 A
Power factor	0.99
Combined power (+3.3V)	130 W
Combined power (+12V)	750 W
Combined power (+5V)	130 W
Max output current (+3.3V)	25 A
Max output current (+12V)	62.5 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time	24.8 ms
Efficiency	92.9%
Ports & interfaces

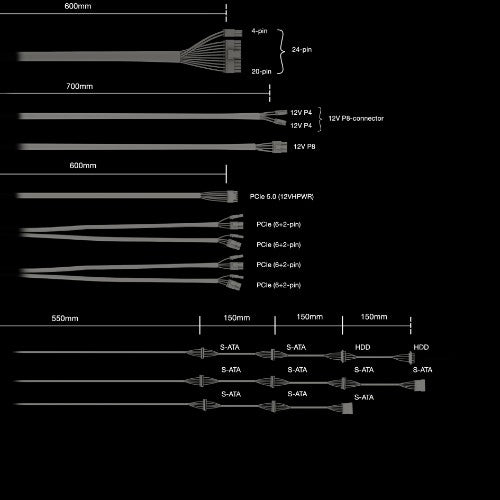

Motherboard power cable length	60 cm
SATA power cable length	550,700,850,1000 mm
Peripheral (Molex) power cable length	1000,850 mm
PCI Express power cable length	60 cm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	9
Number of PATA power connectors	2
Peripheral (Molex) power connectors (4-pin)	0
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Shipping (inner) case width	28.2 cm
Shipping (inner) case net weight	22.4 kg
Shipping (inner) case length	65.1 cm
Shipping (inner) case height	34.6 cm
Products per shipping (inner) case	6 pc(s)
Sustainability compliance	Yes
Warranty period	10 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
80 PLUS certification	80 PLUS Platinum
Packaging content
Cables included	CPU, SATA
Cable tie(s) included	Yes
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	1.76 kg
Packaging data
Cables included	CPU, SATA
Package depth	328 mm
Package width	248 mm
Package height	102 mm
Package type	Box
Package weight	3.47 kg
Logistics data
Shipping (inner) case width	28.2 cm
Shipping (inner) case net weight	22.4 kg
Shipping (inner) case length	65.1 cm
Shipping (inner) case height	34.6 cm
Products per shipping (inner) case	6 pc(s)
Warranty period	10 year(s)
