Antec Neo ECO Modular NE1000G M ATX3.0 GB power supply unit 1000 W 20+4 pin ATX ATX Black

ATX 12V 3.0, Full-Modular, 100-240 V, 12-6 A, 60-50 Hz, Active PFC, 100-150 ms, 1000W, 0~40 °C, 120mm FDB Silent Fan, 80 Plus Gold

Description

Introducing our NE1000G M ATX 3.0 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.0 and high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect peak performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The NE1000G M ATX 3.0 is the perfect choice for building a reliable and efficient PC system for gamers and professionals.

ATX 3.0 & PCIe 5.0 Compatible
Our new NEG M ATX 3.0 Series power supplies meet the high standards of the ATX 3.0 standard for reliability and power efficiency, which are formally certified for ATX 3.0 compliance, ensuring the utmost level of quality and performance. The included PCIe 5.0 12VHPWR GPU cable enables seamless compatibility with modern graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.

High-Quality JP Capacitors
Equipped with high-quality JP capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.

PhaseWave TM Design
Introducing our PhaseWave™ Design, a server-classLLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.

CircuitShieldTM
The full suite of industrial-grade protections ensuring the safety and reliability of your power supply in any situation.

10-Year Warranty
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.

120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

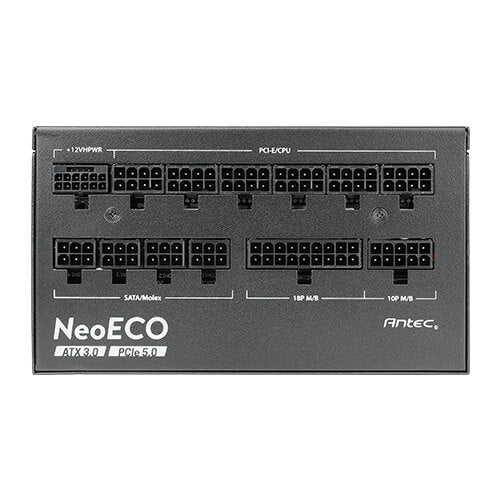

Full Modular Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.

Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.0
Certification	cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, ICES
Design
80 PLUS certification	80 PLUS Gold
Certification	cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, ICES
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	6 - 12 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	996 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Max output current (+3.3V)	20 A
Max output current (+12V)	83 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Overcharge, Short circuit, Under voltage
Hold time	150 ms
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Cables included	AC
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.64 kg
Packaging data
Cables included	AC
Package weight	4.66 kg
Technical details
Warranty period	10 year(s)
Certificates
80 PLUS certification	80 PLUS Gold
Certification	cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, ICES
