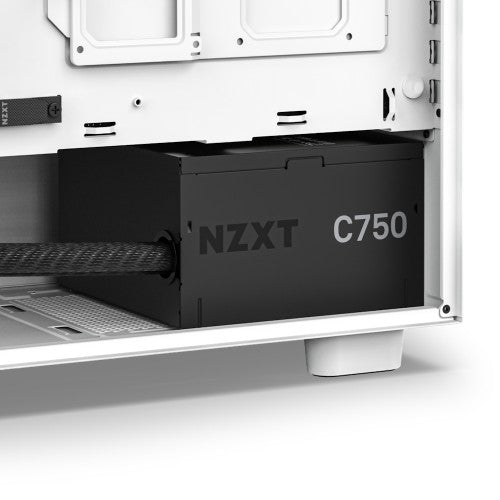

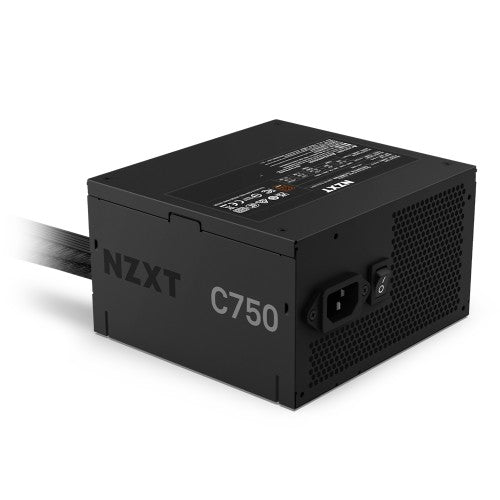

NZXT C750 Bronze power supply unit 750 W 24-pin ATX ATX Black

750 W, 80 Plus Bronze, 64.4 CFM, 39.92 dBA, 150 x 140 x 86mm

Key Features

• Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat

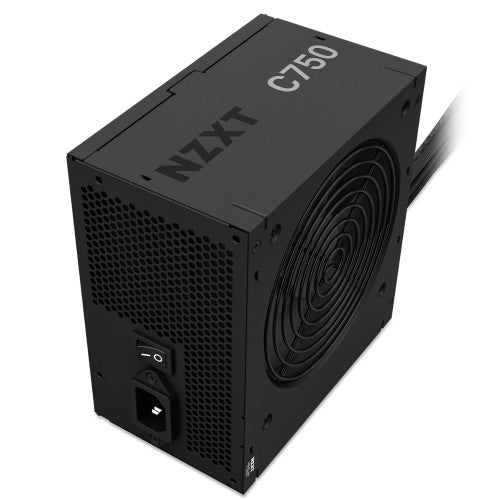

• A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity
• DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070
• Tested for safety at up to 40°C, and features over-temperature and over-current protections
• Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build

Description

The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.

Reliable Power

DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Power Efficiency Graph 88% Efficiency at 50% LoadNZXT C750W Bronze PSU

Highly Efficient

Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Fan Noise Graph 19dB Fan Noise at 50% LoadNZXT C750W Bronze PSU Fan

Quiet Cooling

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.

Enhanced Safety

Tested for safety at up to 40°C, and features over-temperature and over-current protections.

Durable & Sleek

Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan speed	2400 - 2400 RPM
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
ATX version	2.53
EPS version	2.92
Noise level	39.92 dB
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Bronze
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan speed	2400 - 2400 RPM
Cooling type	Active
Power
Total power	750 W
Maximum input current (@220V)	5 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	10-5 A
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	150,500 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	4
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	Yes
Cabling type	Non-Modular
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Technical details
Sustainability compliance	Yes
Warranty period	3 year(s)
Compliance certificates	CE, China RoHS, REACH, RoHS, UKCA
Certificates
80 PLUS certification	80 PLUS Bronze
