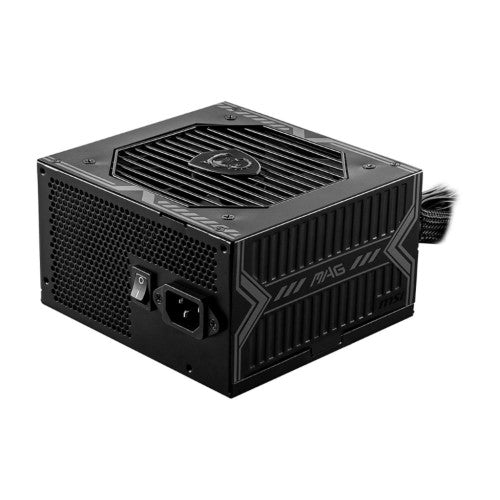

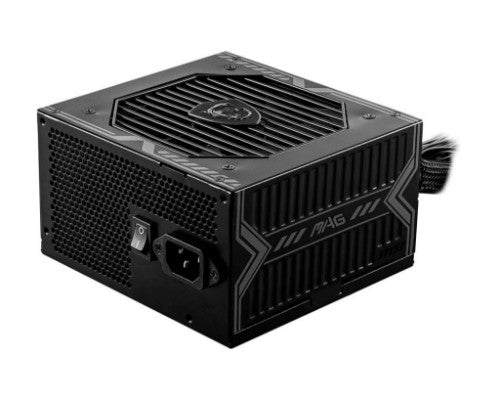

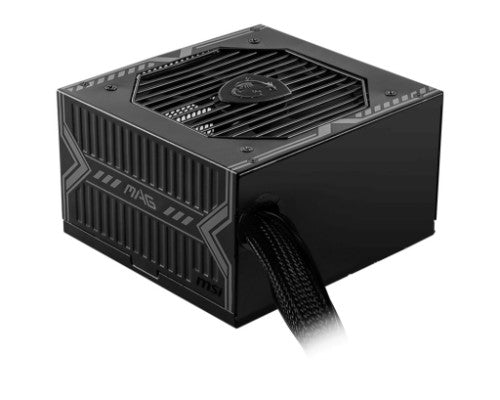

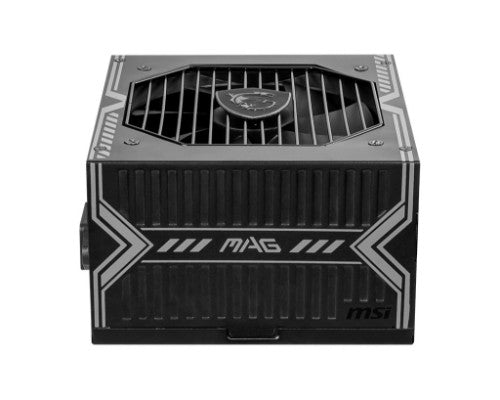

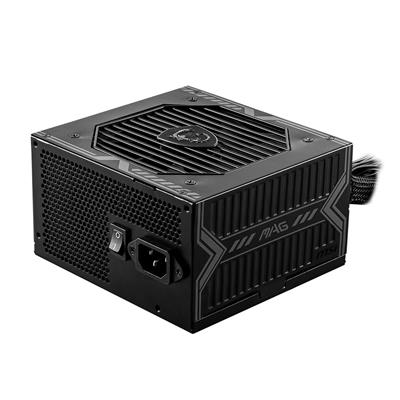

MSI MAG A750BN PCIE5 power supply unit 750 W 24-pin ATX ATX Black

750W, 120 mm, 100-240 V, 50-60Hz, 140 x 150 x 86 mm

Description

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.

PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.

80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.

PROTECTION DEISGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.

TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

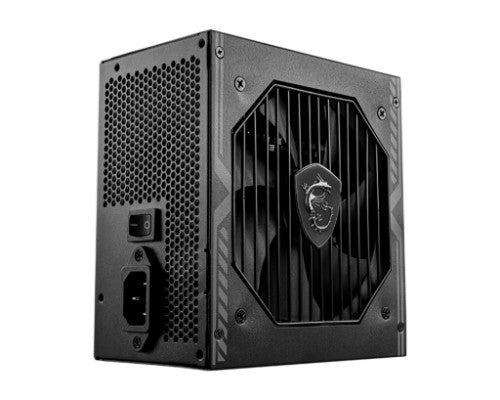

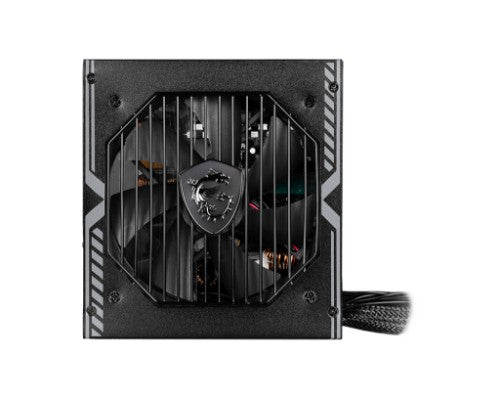

120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
Design
80 PLUS certification	80 PLUS Bronze
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	750 W
Maximum input current (@220V)	5 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Short circuit
Efficiency	85%
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
Floppy drive power connector	1
ATX Power connector (24-pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	1
Packaging data
Package depth	140 mm
Package width	150 mm
Package height	86 mm
Certificates
80 PLUS certification	80 PLUS Bronze
